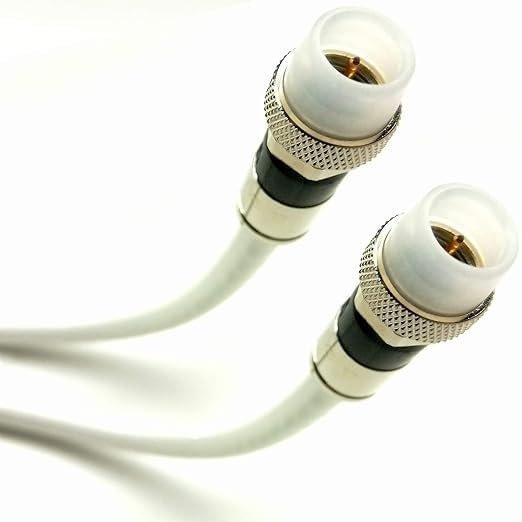

PHATSAT Assembled in USA Coaxial Wire, Enhanced RG6 Weather-Shield 18AWG Connector, White, 130 ft

Description

• Triple Shielding Layers. 77% braid 18AWG solid core, Marginal signal loss compare to quadhsield at fraction of the cost. Ultra High Speed transmission protection

Individually hand crafted, swept tested in the USA. Enhance engineered shielding properties that delivers Quadshield performance RG6 with a technological design with Trishield. Outperforming competitor's trishielding capabilities for 4G LTE applications with advanced rollout and proliferation of 4G/LTE networks. Minimal signal ingress/egress for advanced networks utilizing robust LTE signal/power (+23 dBm +/- 2dBm) for user equipment have exacerbated the issue. Poorly shielded coax cable, loose connectors, unterminated ports, and damage to coax cable caused by rodents have all contributed to signal ingress/egress problems often to the point where service is disrupted. Excellent for Cable TV and Cable internet. Widely used by major service provider across the globe. The connectors are compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to high standard specification with 6 staging quality control procedures.

CABLE APPLICATIONS Over the Air (OTA) Digital High DefinitionTV antenna with signal booster Ultra High Definition (UHD) 4k Cable TV Gigabit High Speed cable internet service remote sensor, RDF modulators and devices Signal amplifier for various applications application that need quadshield quality with trishield properties

CABLE SPECIFICATION Solid Copper Clad Steel 18AWG Dual Shield 60% Braided , 100% Aluminum Foil Shield Impedance: 75 Ohms 3 Ohms
Capacitance: 16.2 PF/ft 1.0 PF/ft
Velocity of Propagation: 83%
Nominal Delay: 1.22 NS/ft
Conductor DC Resistance: 22 Ohms / Km
Shield DC Resistance: 43 Ohms / Km
Swept Tested: 5 MHZ~3000 MHz Ultra HD approved Indoor and Outdoor usage QuadShield Performance in a TriShield Design Operating Temperature: -40 C through +75 C Bonded APA Laminate Shield Moisture Inhibiting lifeTime Enhanced Transfer Impedance Prior to Flexure Improved Screening Attenuation Performance Prior to Flexure NEC 820 CATV Listed UV coated PVC jacket Foamed Polyethylene Dielectric

CONNECTORS Male F-type to Male F-type coaxial connector Plastic body seals the back end of the connector from environmental factors Metal compression ring also allows industry leading cable retention values from standard to quad shield Maintains ground continuity even when very loose Reduces QAM errors/packet loss Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss (Gated)
5 to 1,000 MHz -30 dB Minimum
1,000 to 2000 MHz -30 dB Minimum
2,000 to 3,000 MHz -20 dB Minimum
Insertion Loss 5 to 3,000 MHz Less than .20 dB
Operating Temperature -40 F to 140 F (-40 C to 60 C)
Cable Retention 45 lbs (20.41 kg) minimum Constructed with Brass, Nickel Plated, Anti-Corrosion Materials Excellent Shielding Protection Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs Maintains ground continuity even when very loose Reduces QAM errors/packet loss Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION
Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
