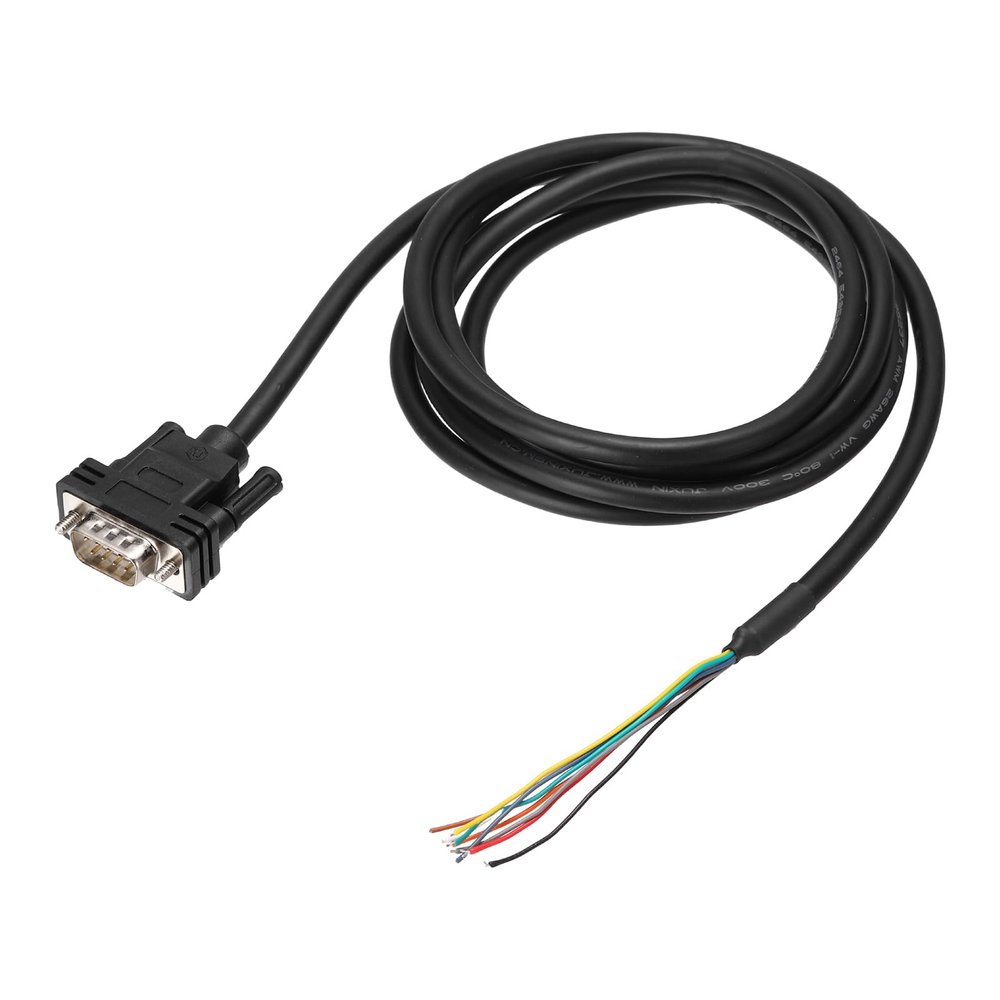

PATIKIL 6.6 ft 26AWG DB9 Male Connector to Bare Wire END RS232 9-Pin Serial Extension Cable Double Shielded Gold Plated Male Connector, Black

Description

• Cable Length: 2 Meter / 6.56 Ft; Wire Diameter: 6 mm / 0.24 inch; Connector Size: 35 x 35 x 16 mm / 1.38 x 1.38 x 0.63 inch (L*W*H); Wire Gauge: 26AWG; Pin Count: 9-Pin (RS232 Standard); Packing List: 1 Pcs x Male to Bare Wire Serial Extension Cable
• Material: This extended serial cable features tinned copper cores, combined with aluminum foil shielding and metal braided shielding, effectively preventing external signal interference. The serial connector utilizes gold-plated contacts with finely detailed solder joints, ensuring durability against frequent mating cycles, excellent conductivity, and long-lasting performance.
• Design: The connector with a standard RS232 pinout offers a secure and precise connection, while the double-shielded construction minimizes crosstalk and external noise. The gold-plated contacts enhance conductivity and reduce signal loss. The bare wire ends allow for flexible custom termination to suit specific wiring needs.
• Application: The Connector to Bare Wire Extension Cable ensures stable data transmission and protection against signal interference. Suitable for automated control equipment, servers, CNC equipment, electrical equipment, UPS, communications equipment, electronic scales, desktop computers, and instrumentation.
• Instruction: The color coded wiring is 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white. Industry-standard straight-through wiring supports RS232/RS485/RS422 communication standards. (Note: Verify the wiring configuration before connecting to avoid communication errors. Do not bend or crush the cable excessively to maintain shielding integrity.)

The Connector to Bare Wire Extension Cable ensures stable data transmission and protection against signal interference. Suitable for automated control equipment, servers, CNC equipment, electrical equipment, UPS, communications equipment, electronic scales, desktop computers, and instrumentation.

Specification
Color: Black
Cable Length: 2 Meter / 6.56 Ft
Wire Diameter: 6 mm / 0.24 inch
Connector Size: 35 x 35 x 16 mm / 1.38 x 1.38 x 0.63 inch (L*W*H)
Wire Gauge: 26 AWG
Pin Count: 9-Pin (RS232 Standard)
Packing List: 1 Pcs x Male to Bare Wire Serial Extension Cable

Advantage
Material: This extended serial cable features tinned copper cores, combined with aluminum foil shielding and metal braided shielding, effectively preventing external signal interference. The serial connector utilizes gold-plated contacts with finely detailed solder joints, ensuring durability against frequent mating cycles, excellent conductivity, and long-lasting performance.
Design: The connector with a standard RS232 pinout offers a secure and precise connection, while the double-shielded construction minimizes crosstalk and external noise. The gold-plated contacts enhance conductivity and reduce signal loss. The bare wire ends allow for flexible custom termination to suit specific wiring needs.

Instruction
The color coded wiring is 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white. Industry-standard straight-through wiring supports RS232/RS485/RS422 communication standards.

Note
Verify the wiring configuration before connecting to avoid communication errors. Do not bend or crush the cable excessively to maintain shielding integrity.
