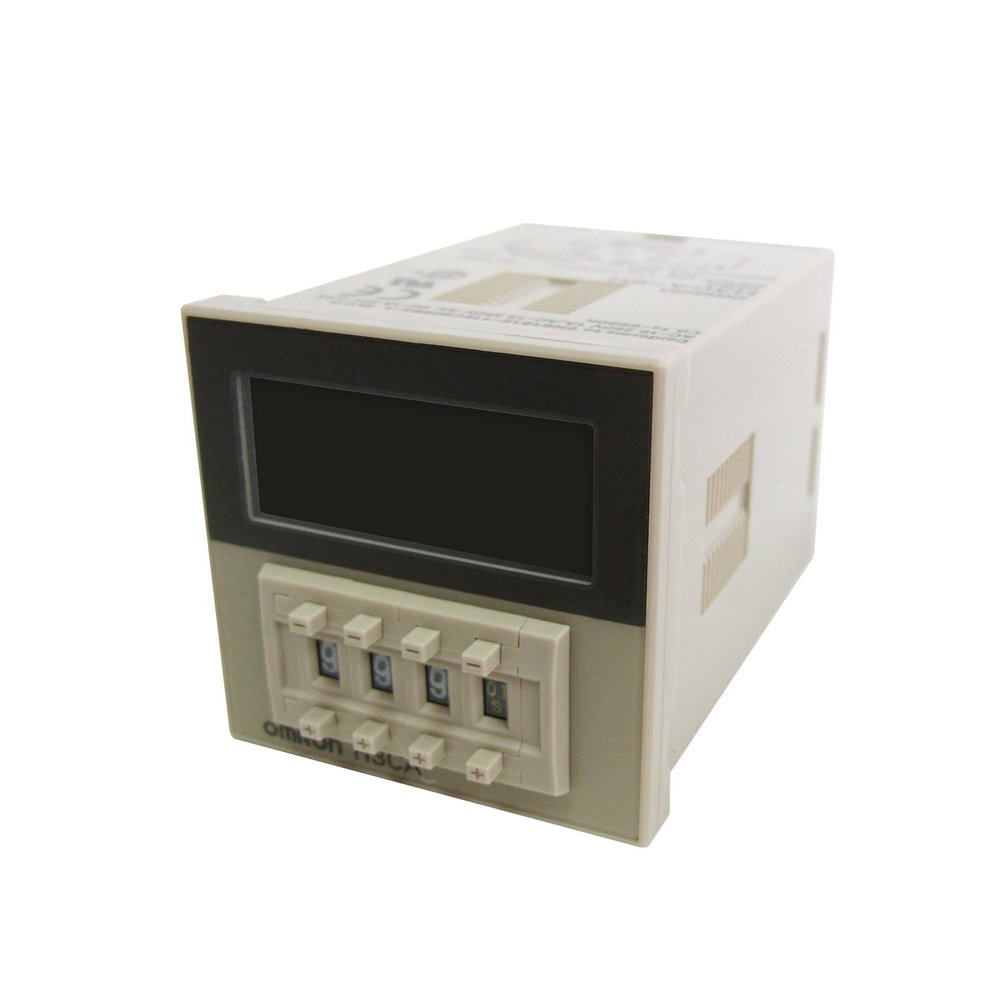

OMRON H3CA-8 AC100/110/120V Solid-State Timer (ON-delay Operation) NN

Description

[Rated supply voltage]
100 VAC 50/60 Hz
110 VAC 50/60 Hz
120 VAC 50/60 Hz
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption] Approx. 10VA / 1W
[Time ranges(Number of ranges)] 7
[Time ranges]
0.1 s to 99.9 s / 1 s to 999 s / 0.1 min to 99.9 min /
1 min to 999 min / 0.1 h to 99.9 h / 1 h to 999 h / 10 h to 9990 h
[Select method] Thumbwheel Switch
[Output modes] A (Power ON delay)
[Control output (Contact output)]
Type: Time-limit contact: DPDT
Switching capacities (Resistive load): 3 A at 250 VAC
Switching capacities (Inductive load): 1 A 250 VAC (cos phi=0.4) / 2.5 A 24 VDC (L/R=7 ms)
Minimum applicable load: 10 mA at 5 VDC (failure level: P)
[Reset system] Self-reset
[Power reset] Reset time: 0.1 s max.
[Display method] LCD
[Mounting method] Flush mounting / Surface mounting
[External connection method] 8-pin round socket
[Case color] Light gray (Munsell 5Y7/1)
[Weight] Approx. 110g
