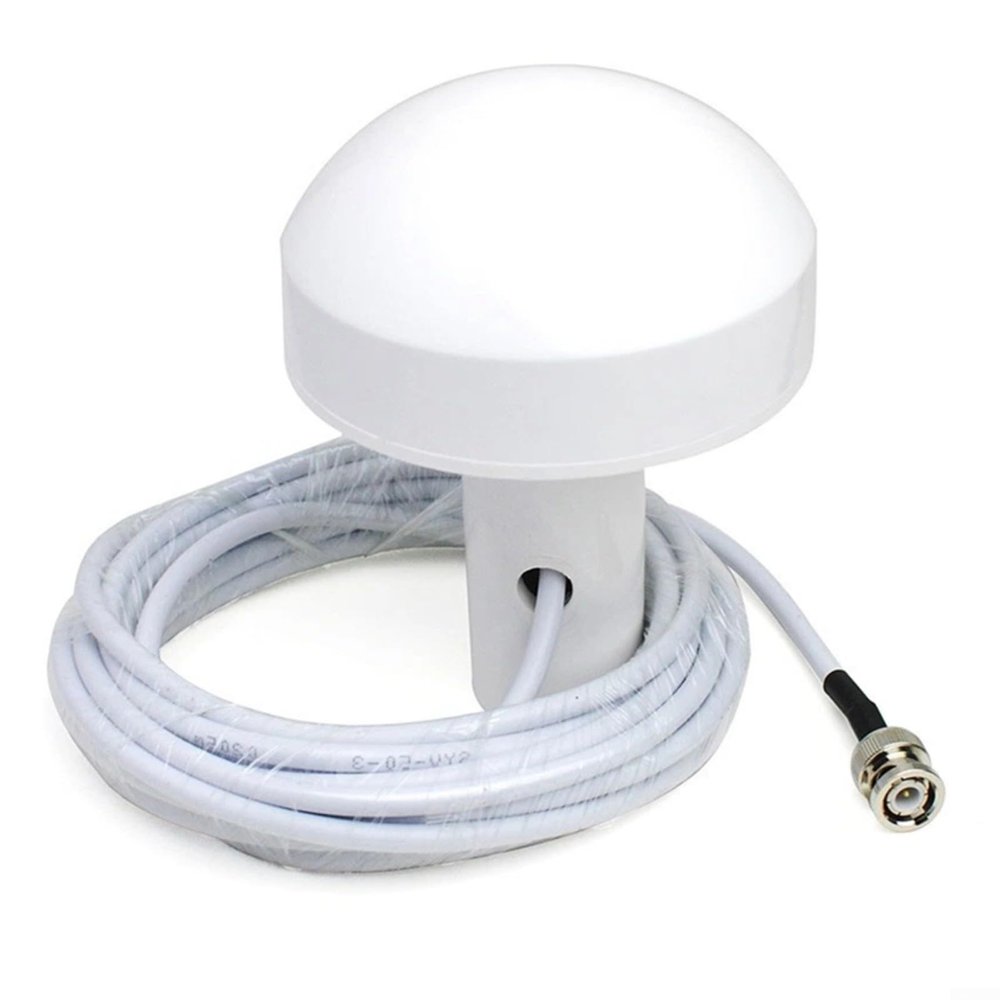

Noteflora Marine GPS Navigation External Antenna With 5M/10m Low-Loss Coaxial Cable, BNC/TNC Male Connectors, Waterproof IP67, For Songtai(5M)

Description

• GPS Antenna for Marine Navigation: Boat Ship Marine GPS Navigation External Antenna, Supports GPS/GLONASS/for Beidou Antenna systems with 2.5m accuracy on open water, giving reliable positioning for a wide range of navigator marine positioning GNS antenna models in coastal or offshore conditions.
• Satellite Navigation Positioning Antenna: IP67 weatherproof ABS housing resists salt spray, UV rays, and extremes from -30C to 80C, offering long lasting performance during extended voyages in challenging marine environments.
• Low-Loss Coaxial Cable Options: External Marine GPS Antenna Aerial, Available with 5m or 10m cable, BNC male and TNC male adapter included, mushroom head antenna design allows mounting via magnet, bracket, or threaded fix for general shipboard equipment.
• Built-In Low-Noise: Gain 26dB with 3.5dBi antenna gain, effectively forestall electromagnetic interference and boost reception sensitivity where satellite signals are weak, supporting consistent tracking.
• Reliable Marine Signal Performance: 50-ohm impedance and precise frequency range of 15755MHz insure your navigation system stays responsive, compatible with multiple marine GPS models without complex installation.

Features:
* Support GPS/GLONASS/Beidou multi-satellite system, positioning accuracy of up to 2.5 meters (open water), suitable for mainstream marine navigators.
* Waterproof and anti-corrosion enclosure (IP67 rating), resistant to salt spray, rays and extreme temperatures of -30C~80C, in line with maritime equipment standards.
* Available in 5m/10m low-loss coaxial cable , BNC/TNC male interface compatible with 90% of shipboard equipment, supports magnet, bracket or threaded fixing.
* Built-in low-noise with a gain of 26dB, effectively suppressing electromagnetic interference and improving the sensitivity of reception in weak signal environments.

Specification:
Part Name: Antenna
Material: ABS
Color: white
Frequency range: 15755MHz
Voltage: 3V-5V
Gain: >26dB
Antenna gain: 3.5 dBi
Line Length Size: 5m, 10m (Optional)
Connector Type: BNC Male Connector
Adapter: TNC Male to BNC Female Connector Adapter
Impedance: 50 ohms
Weatherproof: IPX7
Compatible GPS Navigation Models:
GPSMAP 178178C180182182C185188188C192C196198C
GPSMAP 200, 205, 210, 215, 220, 225, 230, 232, 235, 238, 278, 292, 295, 296, 298C sounders;
GPSMAP 376C378396;
GPSMAP 420, 420s, 421, 421s, 430, 430s, 431, 431s, 440, 440s, 441, 441s, 478, 492, 495, 496, 498C sounders;
GPSMAP 520520s521521s525525S526526S530530S531531S535535S536536S540540S541541S545545S546546S550550S555555S;
GPS Mobile 720, 720S, 740, 740S;
Map 205;
For NavTalk pilot;
For StreetPilot ColorMapFor StreetPilot III GPS;
For GP-1650 GP-1650W GP-1650WD GP-1650WF GP-1650WDF GP-1850 GP-1850W GP-1850WD GP-1850WF GP-1850WDF GP80 GP80P GP150 GP150D NX300D;
For Songtai HP-33A HP-628A HP-828A HP-1228A HA-102;

Package Contents:
1 x Antenna
1 x Adapter
