Nitro Boat Terminal Fuse Block 307786 | w/Harness Assembly

Description

• Material: Plastic
• Color: Black
• Overall Dimensions: 8 1/2" L x 3 3/4" W x 1 3/4" H
• Mounts: (4) 3/16" Dia. mounting holes
• Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate. Hardware and instruction / installation manual not included

Boat part number 1109511 is a new terminal fuse block with harness assembly for 2018 Nitro Boats, part number 307786 .

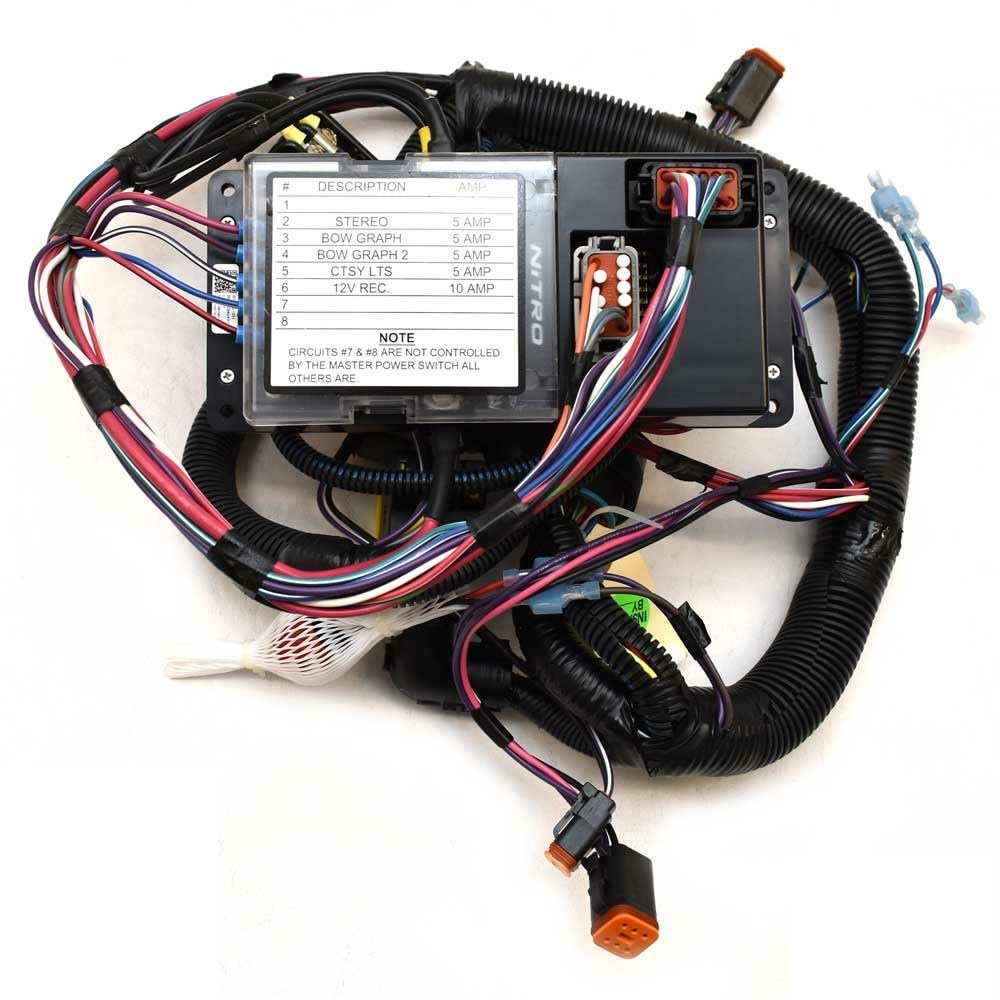

This fuse block is constructed out of black plastic with a clear cover. It measures approximately 8 1/2" L x 3 3/4" W x 1 3/4" H overall and has (4) 3/16" Dia. mounting holes.

Features the following pre-labeled fuses:
Stereo | 5A Bow Graph | 5A Bow Graph 2 | 5A Courtesy Lights | 5A 12V Receptacle | 10A There are the following connections:
(1) 6-spade female (1) 5-pin female Deutsch (1) 2-spade female (1) 16-pin male (1) 10-pin male (2) 4-pin female Deutsch (1) 6-pin female Deutsch (4) female bullet (6) female spade Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Tag reads: HCD4, Nitro '18 ECM

Specifications:
Boat Manufacturer: Nitro Year: 2018 Part Number: 307786 Part Manufacturer: Unavailable Part Number: H-352-067/87 Material: Plastic Color: Black Overall Dimensions: 8 1/2" L x 3 3/4" W x 1 3/4" H Mounts: (4) 3/16" Dia. mounting holes Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

Hardware and instruction / installation manual not included.
