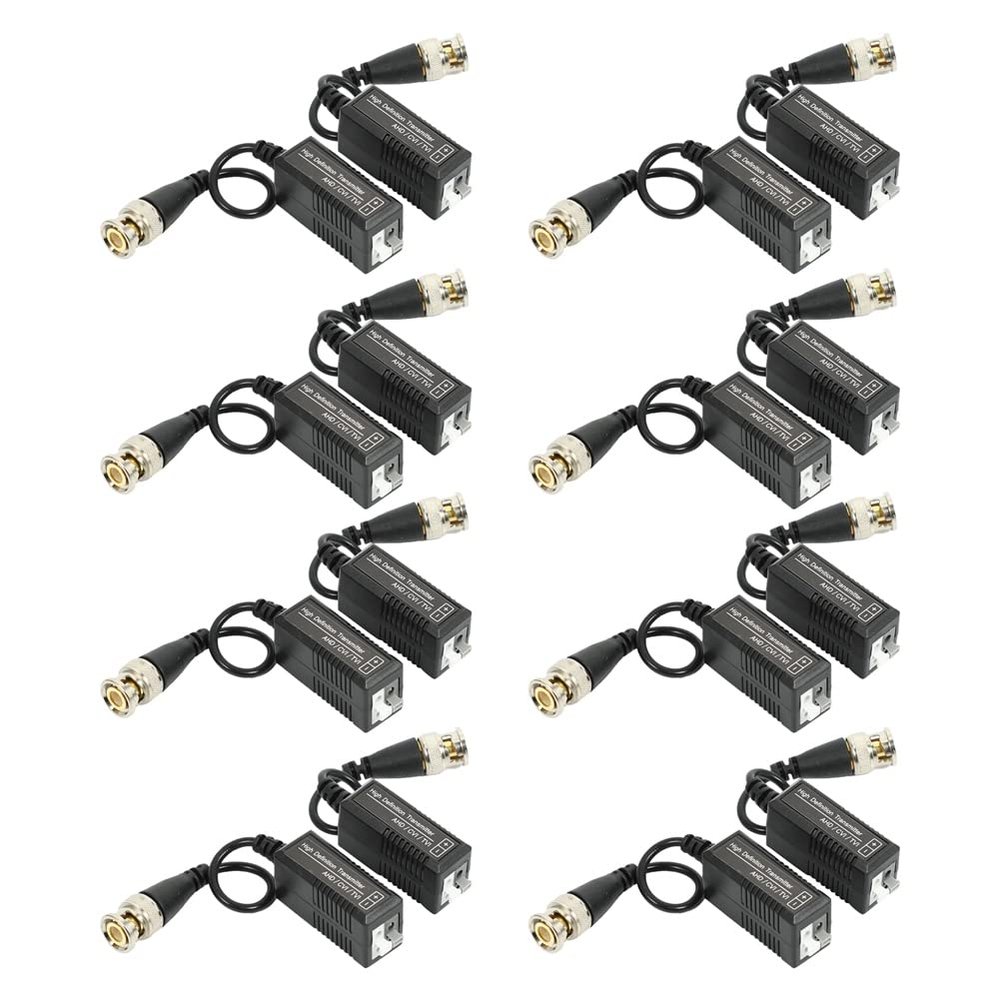

Nicfaky 8 Pairs Passive Video Balun Transmitter & Transceiver with Cable for 1080P TVI/CVI/TVI/AHD/960H DVR Camera CCTV System

Description

• Built in for surge protection, super interface rejection / transient protection / protection / anti-static protection, lasts for over 10000 hours/417 .
• the picture definition when connected to DVR or , and reduce noise
• Push-terminal 1 channel passive HD transceiver, Male BNC allows connection directly to TVI/CVI/AHD/CVBS DVR or camera system; transmit video via UTP CAT5 cable, 10-20% wire costs saved, no need additional supply adapter.
• HD 720P/1080P Color video transmission distance: AHD/HD/CVI - max 300m/1000ft, TVI max 200m/656ft; Full-motion CCTV video at distances up to 1312ft(400m).
• Mini CCTV BNC Video Balun: compatible with analog CVBS/AHD/TVI/CVI Signal. Easy installation: transmit video system via standard UTP cable CAT5 system instead of coaxial cable.

Nicfaky Support all video devices: such as camera, monitor, DVR card and recorder, etc.
Utilize existing wiring: Already have structured ?
Simply connect a balun at each end of the cable, run to transmit your signal.
LOWER cable cost and labor: the of 5 cable is much less than coaxial CCTV extension cable, saving 10-20% wire costs for each CCTV Surveillance system.
UTP cables are physically smaller than coaxial alternatives, more cameras through a smaller diameter, extremely easy to install and terminate.
Better and RFI interference rejection than coaxial cable.
Video transmission signal: 960H/720P/1080P
Video transmission distance: 300m/1000ft for CVI/AHD/960H, 200m/650ft for TVI
Full-motion CCTV video at distances up to 1312ft(400m).
Male BNC connector allows connection directly to the camera or DVR.
Transmission signal: 1 channel
Coaxial video connector: BNC Male
-pair video connector: push-terminal
Compatible Video : AHD / HD-TVI / HD-CVI / 960H
Resolution: 960H / 720P / 1080P / 420+ TV Lines
Color: Black
Material: ABS
Product Size: 1pc is 13.7 x 11.6 x 3.1 mm
Product Weight: 120 g
Package Content: 8 x Pairs Video Audio Balun Network Transceivers

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
