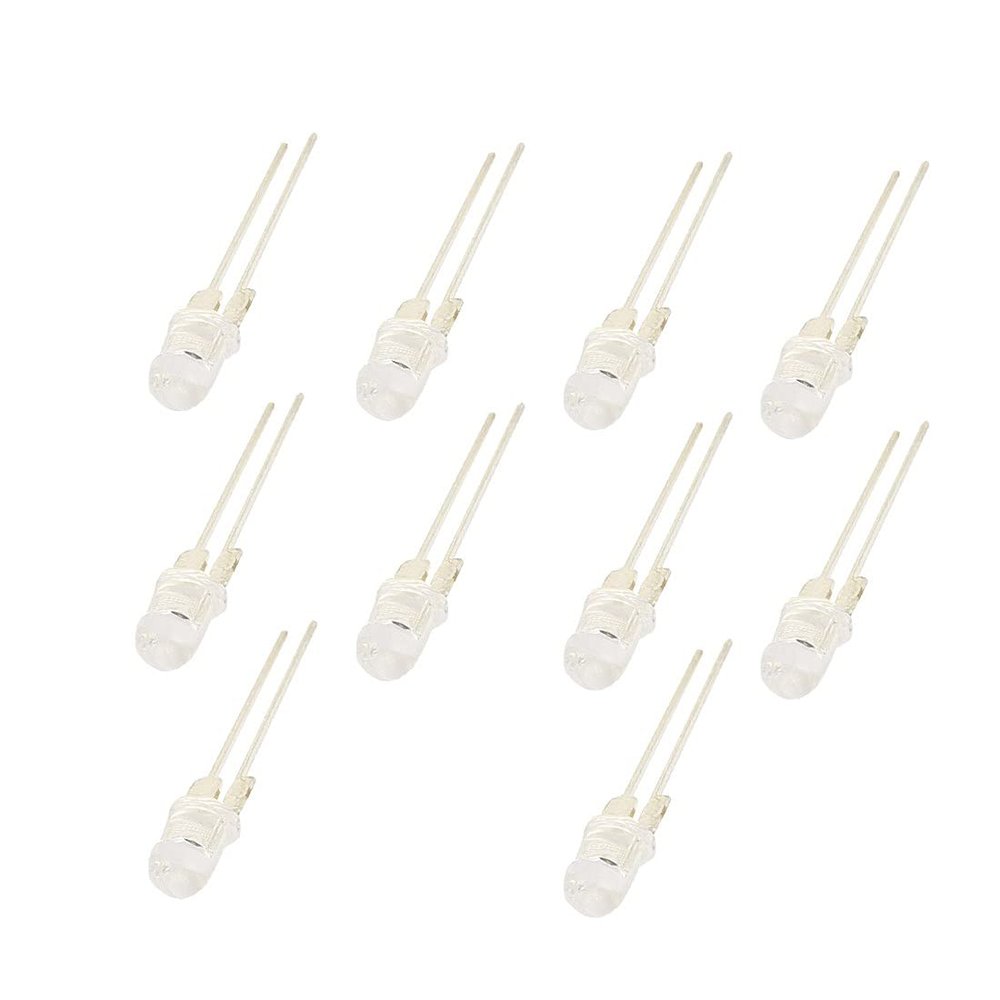

New Lon0167 10 Pcs High Power 850 Nano IR Infrared LED Diode SD-DR524C8 For CCTV Camera(10 PC High Power 850 Nano IR LED Diode SD-DR524C8 fr CCTV-Kamera

Description

• Country of Manufacture: CHINA; Material: Resin; Net Weight: 5g
• Package Content: 10 Pcs x IR Infrared LED Diode; Model: SD-DR524C8
• Main Color: Clear; Size: 6 x 10mm(D*L)
• Input Voltage: 1.5V; Current: 60mA(Eingangsspannung: 1,5 V; Strom: 60 mA
• Terminal Number: 2; Wavelength: 850nm(Anschlussnummer: 2; Wellenlnge: 850nm

10 Pcs High Power 850 Nano IR Infrared LED Diode SD-DR524C8 For CCTV Camera
Specifications:Absolute Maximum Rating:Ta=25C
DC Forward Current IF:50 mA
Pulse Forward current IFP:1000 mA
Reverse Voltage VR:5V
Power Dissipation PD:90 mW
Operating Temperature:Topr -40 ~ +95C
Storage Temperature:Tstg -40 ~ +100C
Pulse width=100s
Duty cycle=1/100
Electrical-Optical Characteristics:Ta=25C
DC Forward Current VF IF:20mA --- 1.45 1.50V
DC Reverse Current IR VR:5V --- --- 10 A
Dominant Wavelength D IF:20mA --- 850 --- nm
Radiant Intensity IV IF:20mA --- 48 --- Mw/sr
50% Power Angle 2 1/2 IF:20mA --- 60 --- deg
Suitable:CCTV Camera
IR light
Telecommunications
Medication
Description in German
10 PC High Power 850 Nano IR LED Diode SD-DR524C8 fr CCTV-Kamera
Herstellungsland: CHINA; Material: Harz; Nettogewicht: 5 g
Packungsinhalt: 10 Stck x Infrarot-LED-Diode; Modell: SD-DR524C8
Hauptfarbe: Klar; Gre: 6 x 10 mm (D * L)
Eingangsspannung: 1,5 V; Strom: 60 mA
Anschlussnummer: 2; Wellenlnge: 850nm
