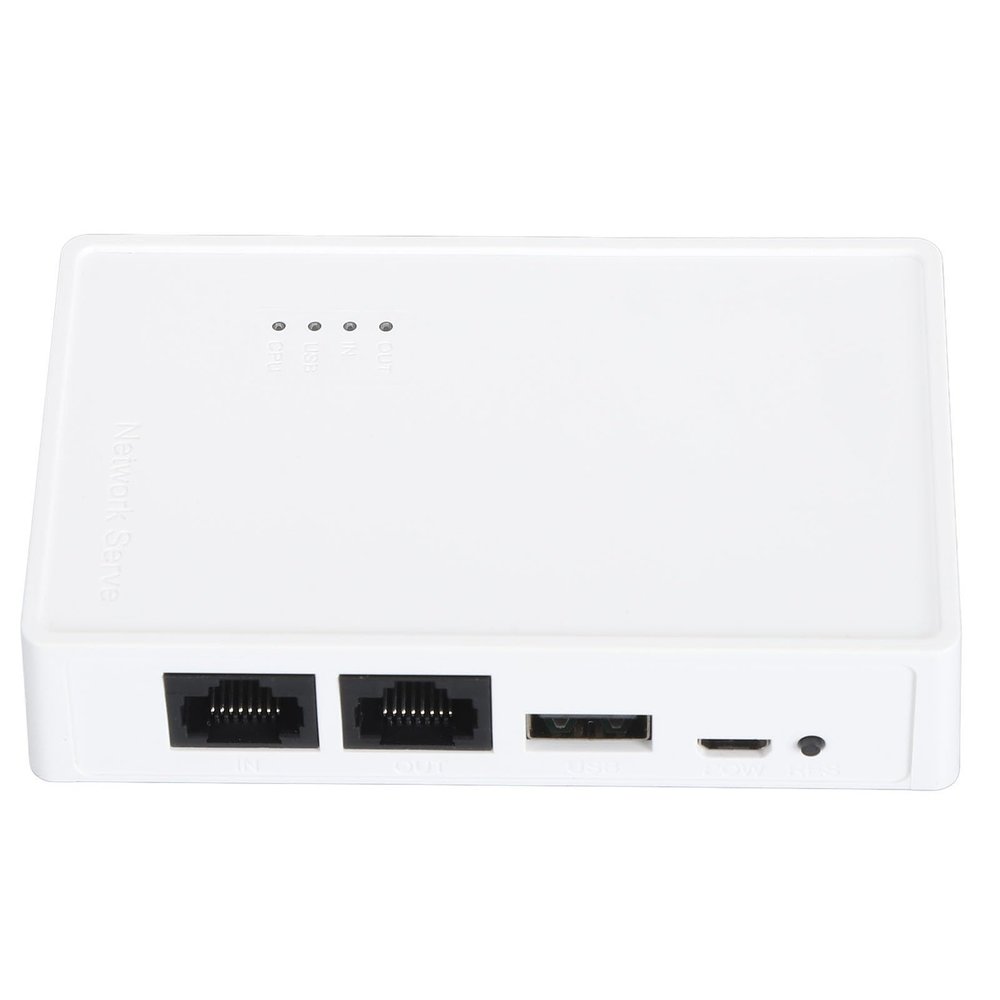

Network Printer Server USB Print Server Wired Standalone Modes 480Mbps USB2.0 Print Server with 10 100Mbps LAN Bridge for OS X Printers

Description

• For Multi Users: Print server transforms your USB printer into a printer, so as long as it is on the same network, no matter where the computer is, you can easily access and use the printer. In addition, with the help of a USB A hub, this USB print server supports connecting 4 printers, which greatly improves the efficiency of printing files and is suitable for multiple people.
• Various Modes: printer adapter supports wired mode, 2.4G network mode and standalone mode, converts your USB printers to printers in different ways to meet your needs for using printers on varied places. Note: In standalone mode, you do not need to connect the superior router, but theres no access to the Network at the same time.
• Web Management: Get rid of hassled driver installation and complicated setting steps, enjoy one stop printer and print server configuration on the web interface with USB print server. Note: This print server does not require an external driver, but you need to download and install the printer driver from its official website and follow the Quick Start Guide to connect the printer to the computer.
• Wide Compatibility: Compatible with 7/8/10/11/, for OS X. Equipped with a USB2.0 port, the print server is for almost all usb printers, including ink jet printers, receipt printers, printers, barcode printers.
• Widely Use: Small in size and light in weight, you can place it anywhere. The high speed 480Mbps usb2.0 port and 100Mbps bridge or lan ports on the USB print server allow you to print out in seconds, also support automatic queue printing, which is ideal for applications at home, small office, supermarket, educational institutions etc. that require shared printers.

Specification:
Item Type: USB Print Server
Material: ABS
Color: White
Output Interface: Bridge (10/100Mbps)
Input Interface: LAN (10/100Mbps)
Power Port: Micro USB
USB Port: USB 2.0
Preparation:
1. sure that the printer driver is installed on your computer and that it can print properly. (The simplest way to verify the installation of the driver is to directly connect the computer to the printer and check if it can print correctly, which is the prerequisite for the printer server to work properly).
2. Connect the power of the print server, connect the USB print cable of the printer, and connect the network cable of the local area network to the print server. (Connection diagram is on the packaging box).
3. After the print server is powered on for 3 minutes, use your mobile phone to search for a signal with @MG_XXXX. The password is: 77777777 (8 sevens). A webpage window will automatically up on your phone, or you can access webpage with a mobile phone.
Setting up on the computer:
After completing the above steps, go to the Control Panel on your computer, Devices, Printers and Scanners, select the printer you want to set up, and click on Manage. (To ensure smoothing setup, sure that the current computer can print properly by connecting it to the printer via a USB print cable, which confirms that the driver is correct).
1. Select Printer Properties.
2. Click on Port, Add Port, Select Standard TCP/IP Prot, Click on New Port.
3. Enter the IP address of the printer server (in the previous teaching how to view the IP address of the printer server through the mobile phone), click following, and wait for 1 minute.
4. Be sure to select Custom
5. Finished and use

packing list:
1 x USB Print Server
1 x Power Cord

Note:
Common problem handling:
Q: My settings are all normal, but
