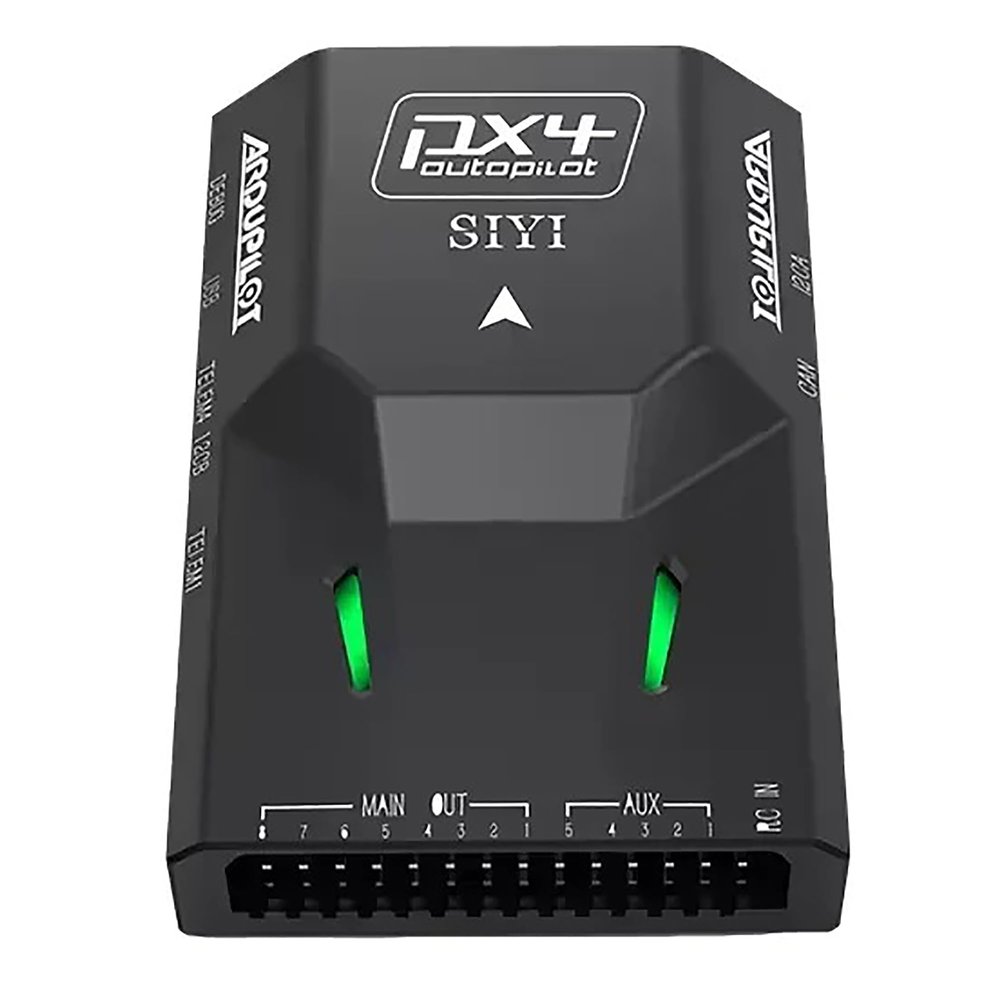

N7 Autopilot Flight Controller for Ardupilot&PX4 Ecosystem M9N Power (N7 with GPS)

Description

• Internal Shock Absorption Structure IMU and Magnetometer Dual Redundancy IMU Thermostatic Control: The internal shock absorbing structure design of the N7 flight control can meet the working requirements of multiple models. Built-in dual IMU redundancy design, GPS module magnetometer and flight control board magnetometer dual redundancy design, built-in heating resistors to ensure that the flight control IMU can still work at a constant temperature in low temperature environments, and the systematic comprehensive design greatly improves flight stability and reliability.
• Systematic Solution: The N7 flight control system supports a series of feature-rich SIYI products and open-source ecosystem products to easily meet different application requirements. Combine high-performance firmware and software including PX4, ArduPilot, QGroundControl, and Mission Planner to support a wide range of application scenarios and provide users with powerful systematic solutions. At the same time it lowers barriers to use, provides developers with a complete development platform, and facilitates application development.
• H7 Double Precision Floating Point Unit Processor: The N7 flight controller is equipped with an STM32H7431IK6 processor, equipped with a double-precision floating-point unit (DSP & FPU), up to 480 MHz main frequency, 2 MB flash memory, and 1 MB memory, bringing powerful computing capabilities, high-speed data processing capabilities, significantly improving flight stability, and creating a broader space for functional development.
• Optional RTK and PPK for High-Precision, Application Scenarios: Unmanned vehicles builders and developers can choose compatible RTK and PPK to achieve centimeter-level positioning for applications that require high-precision positioning, such as surveying and mapping and agriculture spraying. RTK and PPK can adapt to complex magnetic field environment, and support GPS direction finding function, no longer troubled by magnetic compass interference.
• N7I Autopilot Flight Controller: The N7 flight controller is equipped with the H7 double-precision floating-point unit processor. It adopts built-in dual IMU redundancy and internal shock absprption structure design, which endows the aircraft with high reliability. The N7 flight controller is compatible with both Ardupilot and PX4 open-source ecosystem to achieve adbundant application scenarios and provide stable and comprehensive systematic solutions for enthusiasts and industry application explorers of drones, unmanned vehicles and ships, smart robots.

For N7 Autopilot Flight Controller for Ardupilot&PX4 Ecosystem M9N Power

Compatible Model: PX4 / Ardupilot Firmware (Planes / Multirotors / Helicopters / VTOL / UGV / USV)
Power Module Voltage Input: 4.5 ~ 5.5 V
USB Voltage Input: 5 V ( 0.25 V)
Servo Voltage: 0 ~ 10 V
Working Temperature: -20 ~ 65
Product Dimension: 47 x 68 x 19 mm
Product Weight: 57g
Material : Metal
Recommend Age : 14+y
Use : Vehicles Control Toys
Brand : SIYI
Color : Black
Model : N7
Compatible Fuel Type : Electric
