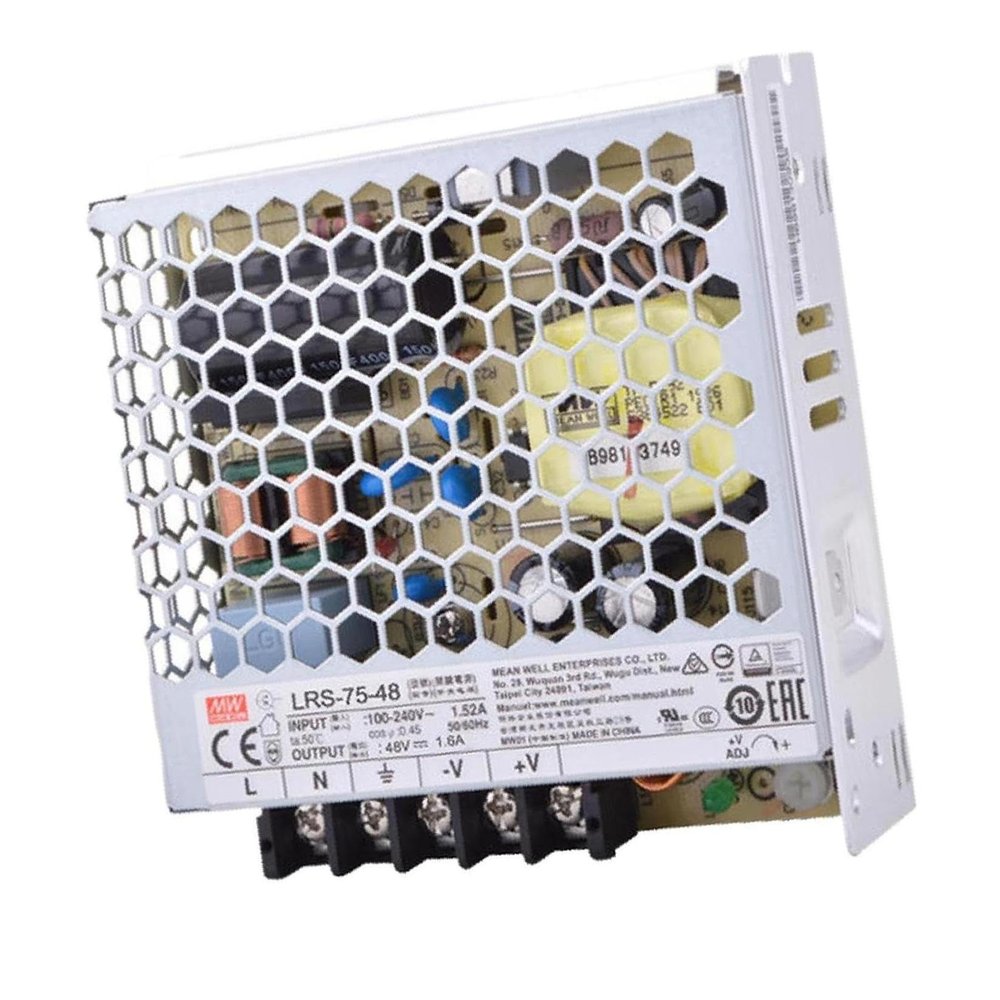

MW Enclosed Type LRS-75W-12/15/24/36/48/5V Non-PFC LRS Series 75W Single Output Switching Power Supply (LRS-75-48)

Description

• LRS-75W|(12V/6A).(15V/5A).(24V/3.2A).(36V/2.1A).(48V/1.6A) .(5V/14A) For Industrial automation control, Mechanical and electrical equipment, Electronic instruments, Household appliances.
• The LRS-75 series complies with the international safety regulations such as TUV EN62368-1,EN60335-1,EN61558-1/-2 -16,UL62368-1 and GB4943, providing a high price-to-performance power supply solution for various industrial applications.
• Can withstand 300vac surge input for 5 seconds, withstand 5G vibration test, short circuit/overload/over voltage protection, High operating temperature up to 70?, high efficiency, long life and high reliability
• Miniature size and 1U low profile, no load power consumption <0.3W, Compliance to IEC/EN60335-1(PD3)and IEC/EN61558-12-16
• 30 years of well-known standard power supply brand, supporting mass wholesale.

The LRS-75 series Suitable for Industrial automation machinery, Industrial control system, Mechanical and electrical equipment, Electronic instruments,equipments or apparatus, Household appliances.?such as Control cabinet power supply system, Beauty picosecond machine power supply, Supermarket container display system, Plant lighting, 3D printer power supply, Shop door head lights?

Universal AC input/Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.3W
Miniature size and 1U low profile
High operating temperature up to 70?
Protections: Short circuit/Overload/Over voltage
Cooling by free air convection
Compliance to lEC/BS EN/EN60335-1(PD3)and IEC/BS EN/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category lll
100% full load burn-in test
3 years warranty

Description
LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264 VAC input, the entire series provides an output voltage line of 5V?12V,15V,24V, 36V and 48V.
In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30? through 70? under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3w), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-
vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16,UL62368-1 and GB4943.LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.
