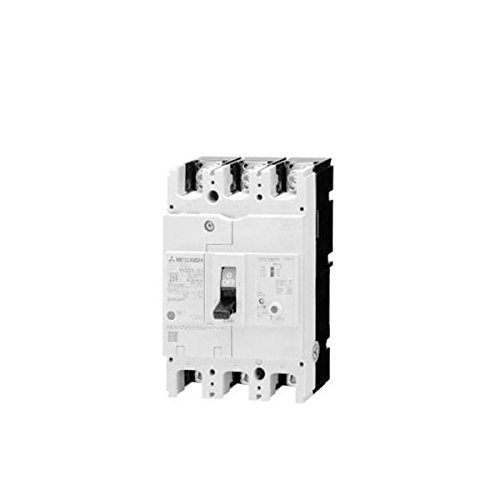

MITSUBISHI ELECTRIC NV250-CV 3P 250A 1.2.500MA Earth-Leakage Circuit Breaker (Economy Type)(Harmonic Surge Ready)(3 Poles)(Frame 250A) NN

Description

• Products that we ship is a Japan version. There may be only a Japanese manual, if manufacture produced only for using in Japan. Even if you are injured using this, we shall not be responsible for any loss, damages and troubles. Since the shipment from Japan, it will take time to delivery. We have the case that we cannot ship depending on a delivery place.
• It is not in stock or the case of shipping in the next business day after, we will contact you by e-mail. 9:00 to 18:00(JST): Business hours (Saturday and Sunday, Spring holidays , Summer holidays, the New Year will be closed)

[Frame(A)] 250
[Rated current in(A)] 250
[Number of poles] 3
[Phase line] 3 phi 3W,1 phi 3W,1 phi 2W
[Rated operational voltage Ue(VAC)] 100-440
[High-speed type] Rated current sensitivity (mA):100/200/500 selectable
Max.operating time(s):at I delta n 0.1
at 5 I delta n:0.04
[Earth-leakage indication system] Mechanical type(button)
[Rated short-circuit breaking capacity(kA)]
JIS C 8201-2-2 Ann.1
JIS C 8201-2-2 Ann.2
IEC 60947-2 2nd.ed. (Icu/Ics)
AC: 440V 15/12, 415V 25/19, 400V 25/19, 230V 36/27, 200V 36/27, 100V 36/27
[Rated impulse withstand voltage Uimp(kV)] 6
[current] AC
[Suitabikity for isolation] Compatible
[Number of operating cycles] without current:8,000
with current: 4,000
[Utilization category] A
[Pollution category] 2
[EMC environment condition(environment A or B)] A
[Mass of front-face type(kg)] 1.7
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
