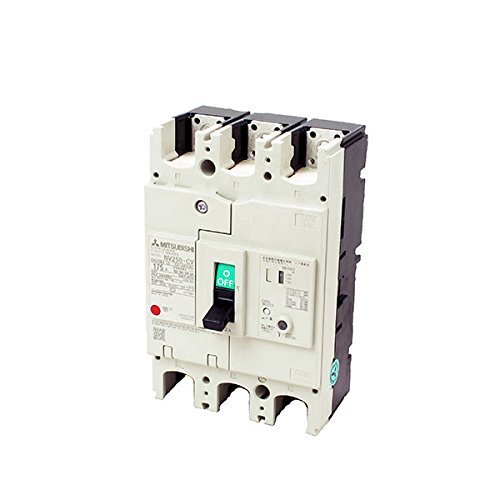

MITSUBISHI ELECTRIC NV250-CV 3P 200A 1.2.500MA Earth Leakage Circuit Breaker (Economy Class) (Frame 225A) (3Poles) NN

Description

[Frame(A)] 225
[Rated current in(A)] 200
[Number of poles] 3
[Phase line] 3 phi 3W,1 phi 3W,1 phi 2W
[Rated operational voltage Ue(VAC)] 100-440
[High-speed type] Rated current sensitivity (mA):100/200/500 selectable
Max.operating time(s):at I delta n 0.1
at 5 I delta n:0.04
[Earth-leakage indication system] Mechanical type(button)
[Rated short-circuit breaking capacity(kA)]
JIS C 8201-2-2 Ann.1
JIS C 8201-2-2 Ann.2
IEC 60947-2 2nd.ed. (Icu/Ics)
AC: 440V 15/12, 415V 25/19, 400V 25/19, 230V 36/27, 200V 36/27, 100V 36/27
[Rated impulse withstand voltage Uimp(kV)] 6
[current] AC
[Suitabikity for isolation] Compatible
[Number of operating cycles] without current:8,000
with current: 4,000
[Utilization category] A
[Pollution category] 2
[EMC environment condition(environment A or B)] A
[Mass of front-face type(kg)] 1.7
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
