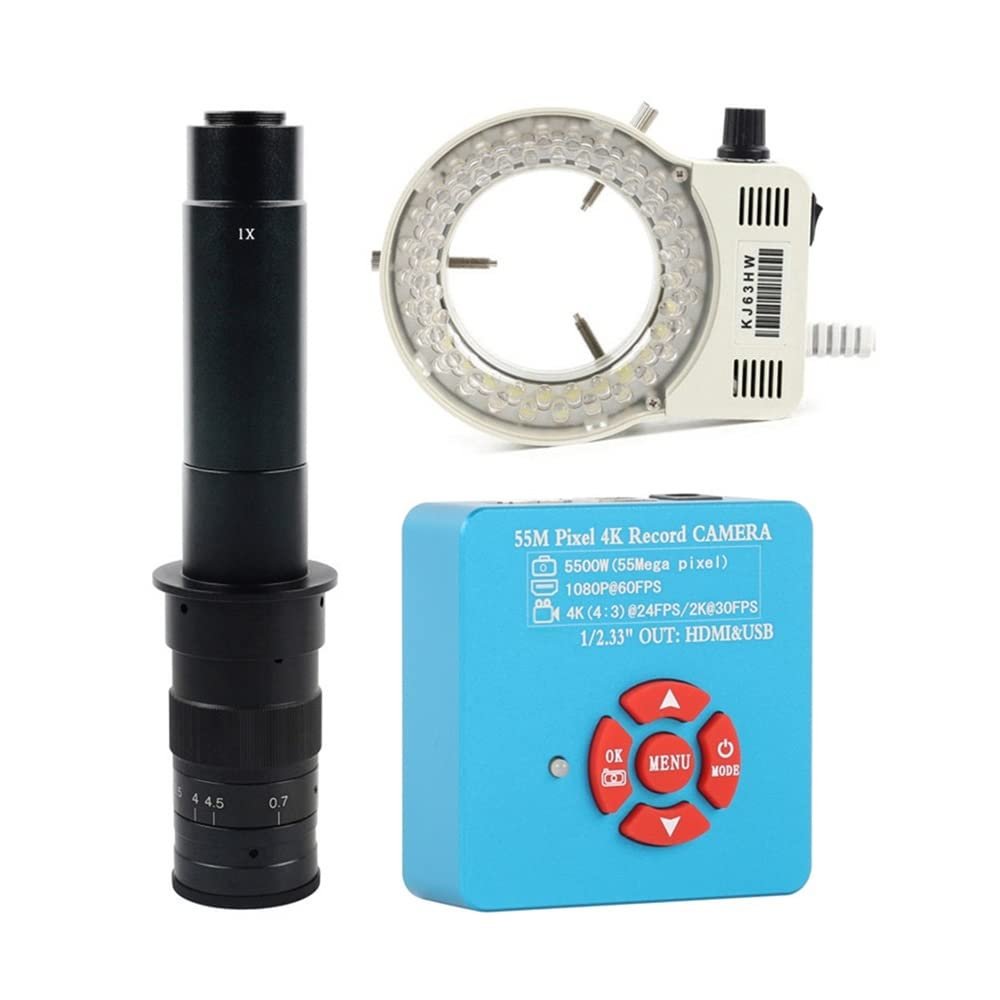

Microscope Observation 4K 1080P 60FPS 55MP HDMI USB Video Lab Microscope Camera C-Mount Lens LED Ring Light for PCB Mobile Repair Soldering(300X Lens LED Light)

Description

• Model Number: 55MP 4K H_DMI Camera
• Picture Pixel: 9885X5560 55M Pixel; Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
• CMOS pixel: 1.33um x 1.33um; Color setting: Auto; White balance: Auto/one button calibration/Manual
• Our microscope accessories are made of high-quality materials to ensure durability and stability. Meet your various experimental needs.
• We promise to provide every customer with high-quality after-sales service. If you have any questions or need help, we will serve you wholeheartedly 24 hours a day.

Specification:
Picture Pixel: 9885X5560 55M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode H_DMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70

Remote Control Instruction:
1.+ KEY: Zoom in / - KEY: Zoom out
2.UP: EV+; DOWN: EV-
3.OK: Confirm button or Start recording
4.Menu
5.Mode: Camera / Video / Playback mode change button
6.The bottom button is to take photos
7.Left & Right Not in use

8X-100X Zoom C-mount Lens:
Work distance: 40mm-400mm
Zoom ratios: 1:17
Magnification Power by 0.12 - 2X (about 8X - 100X on the Monitor)
view field of Max multiple : 5.4mm*3mm
view field of Min multiple : 54mm*3mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

10X-180X C-MOUNT Lens:
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 15 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 600g

20X-300X C-MOUNT Lens:
Working distance: 90-100mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 20 - 300X on the display)
view field of Max multiple : 1.4mm*0.8mm
view field of Min multiple : 10mm*5mm
Eyepiece lense : 1X
Size: 245mm(L) * 50mm(DIA)
Weight: 630g

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(dia
