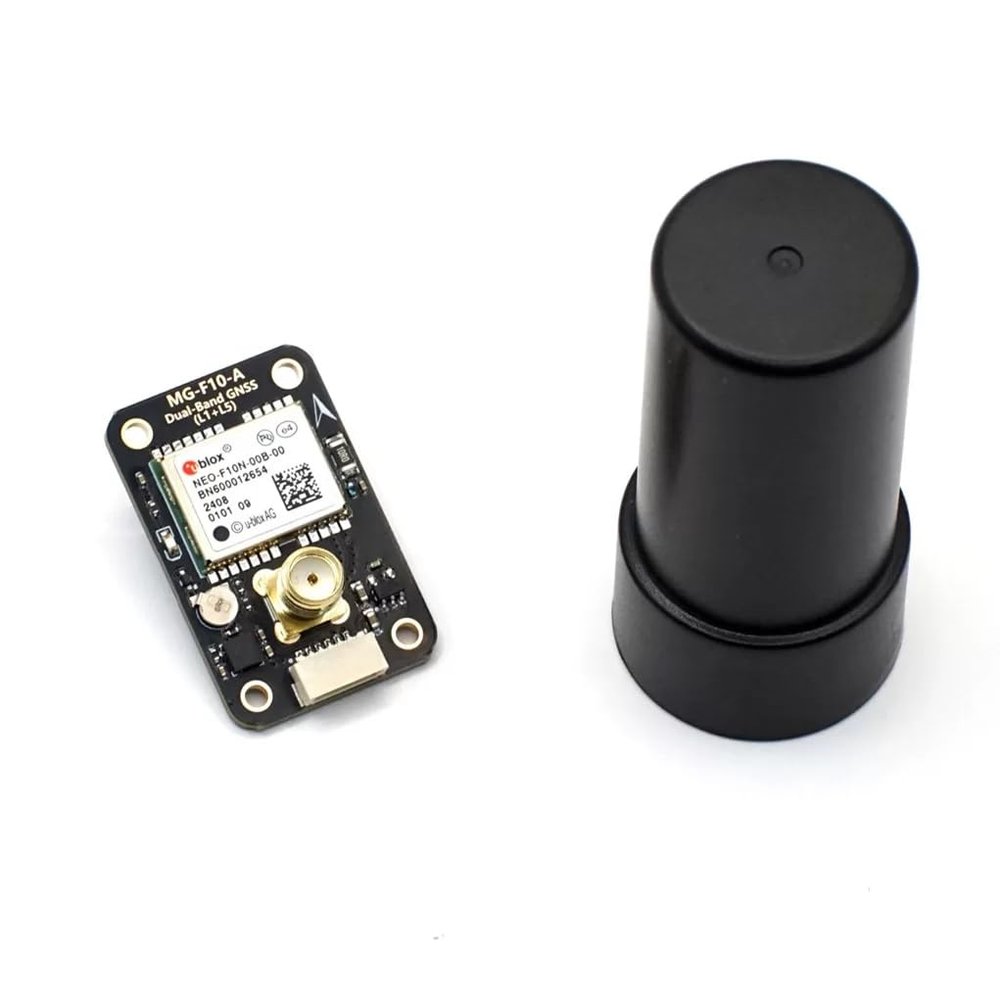

Micoair MG-F10 Dual Band GNSS Module (L1+L5) with IST8310 Compass and Quad Helix Antenna, PX4 and Ardupilot Compatible, Multi-Constellation for Drones and Robotics

Description

• 1.Supports Multi-Constellation, Dual-Band GNSS Equipped with a high-sensitivity GNSS receiver, this module supports simultaneous positioning using GPS, Beidou, Galileo, and NavIC constellations. It operates on both L1 (1576 MHz) and L5 (1176 MHz) frequency bands, enabling faster satellite acquisition and improved positioning stability, especially in complex environments.
• 2.Integrated Active Quad Helix Antenna Features a built-in active Quad Helix Antenna for enhanced signal reception, ensuring reliable GNSS performance in mobile robotics, drones, and embedded applications.
• 3.Ready for Ardupilot and PX4 Fully compatible with Ardupilot (v4.4.0 and above) and PX4 (v1.14.0 and above) flight control firmware. Once connected following the recommended wiring, the module is automatically recognized by the flight controller. No need to manually configure baud rate or other serial parameterstrue plug-and-play experience.
• 4.Built-in IST8310 Magnetic Sensor Includes the IST8310 magnetometer for heading detection and better electromagnetic resistance.
• 5.Compact Design, Lightweight, and Easy to Integrate The module measures only 22 34 13.4 mm and uses a standard 6-pin SH1.0 interface, It requires no soldering for integration. The complete unit (including antenna) weighs just 21g, while the GNSS module itself weighs only 6gsuitable for weight-sensitive UAV and robotics applications.

Specifications
GNSS Receiver: NEO-F10N Compass: IST8310 GNSS Band Support: L1 (1575.42MHz) / L5 (1176.450MHz) GNSS System Support: GPS/QZSS L1C/A, L5; Galileo E1-B/C, E5a; BeiDou B1C, B2a; NavIC SPS-L5 Concurrent: 4 (GPS/QZSS; BeiDou; Galileo; NavIC) Max Navigation rate: 10Hz Input Voltage: 5V Working Current: 30mA (without antenna); 55mA (with antenna) Interface (GNSS): UART (3.3V LVTTL) Interface (Compass): I2C UART Baudrate: 38400 (Chip Default); 115200 (Factory Default) Output Protocol: NMEA (Chip Default); UBX-PVT (Factory Default) PPS LED: Blue (Solid ON after powering on, blinking (1Hz) when GNSS gets 3D fix)

Quad Helix Antenna
Full Band Support: GPS/QZSS L1/L2/L5, Galileo L1/E5/E5a/E5b, GLONASS G1/G2/G3, BeiDou B1/B2a/B2b LNA Gain: 38dB Input Voltage: 3.0 5.5V Dimensions: 28mm * 59.3mm Connector: SMA

Flight Controller Firmware Required
Ardupilot: >= 4.4.0 PX4: >= 1.14.0
Note: This module is only compatible with Ardupilot (v4.4.0 and above) and PX4 (v1.14.0 and above). Other firmware versions or flight controllers have not been tested.

More Product Information

Micoair MG-F10

Physical
Mounting: 28 x 16mm, 2mm Dimensions: 34 x 22 x 13.4 mm Weight: 6g (without antenna); 21g (with antenna)

Package
MG-F10 Dual Band GNSS Module * 1 Quad Helix Antenna * 1 SH1.0-6P Cable 20cm * 1
