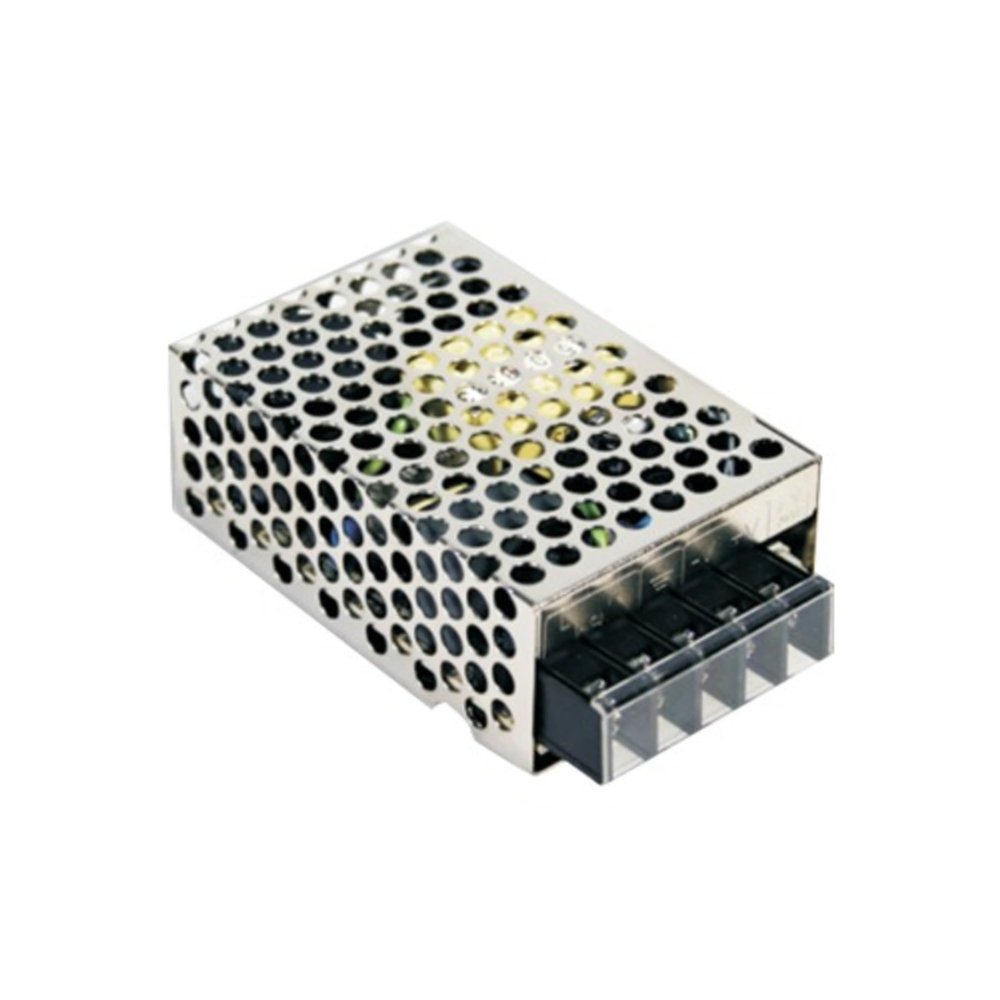

MeanWell Enterprises - RS-25-12 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 25.2 W, 12 V, 2.1 A

Description

• Current Range: 0A to 2.1A; Rated Power: 25.2W; Rated Current: 2.1A; DC Voltage: 12V; Voltage tolerance: 1.0%; Load Regulation: 0.5%; Line Regulation: 0.5%; Voltage ADJ. Range: 10.8V to 13.2V; SETUP, RISE, HOLD TIME: 1200ms, 20ms, 50ms/230VAC to 2200ms, 30ms, 12ms/115VAC
• Frequency Range: 47Hz to 63Hz; Voltage Range: 88 to 264VAC to 125 to 373VDC; Leakage Current: <2mA / 240VAC; Inrush Current: Cold Start 36A/230VAC; AC Current: 0.7A/115VAC to 0.4A/230VAC; Efficiency: 79%
• Operating Temperature: -20C to +70C; Relative Humidity: 20% to 90%RH; Storange Temperature: -40C to +85C; Relative Humidity: 10% to 95% RH; Temperature Coefficient: 0.03%/C (0C to 50C ); Panel Mount: 12v/2amp
• Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC; Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
• Applications: ITE EN/UL/IEC 60950

AC-DC Single Output Enclosed, Power Supply: Output 12V DC, Single Output at 2.1A; Free Air Convection
