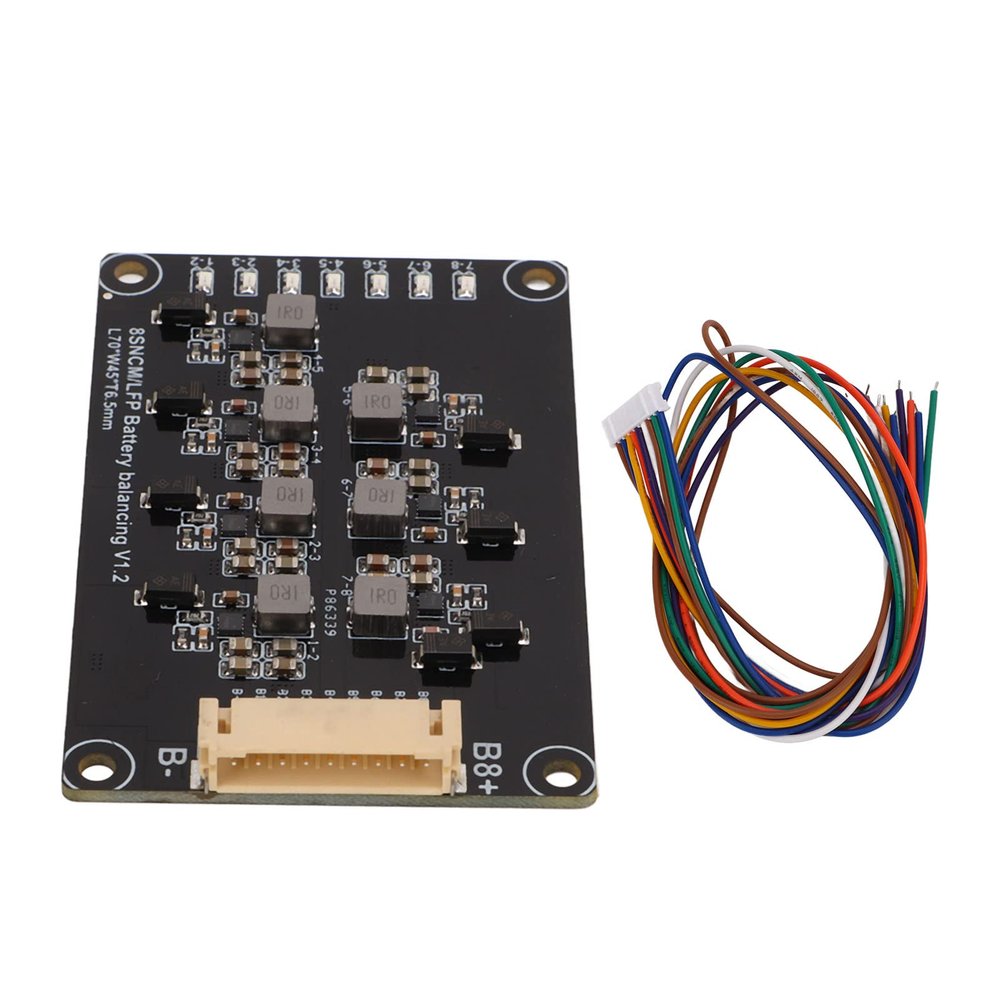

Mavaol 1.2A 8S Inductive Battery Balancer PCB for 2.0V-4.5V Lithium Batteries, Voltage Equalization & Overcharge Protection

Description

• Efficient Voltage Balancing: This 1.2A inductive balancer automatically balances battery voltages, enhancing battery performance and improving energy transfer efficiency for longer battery life.
• Advanced 8S Balancer Technology: Triggers when the voltage difference between adjacent batteries reaches 0.1V or more, ensuring precise equalization and halting at a difference within 0.03V for optimal battery efficiency.
• Cost-Effective Battery Maintenance: Reduces battery maintenance costs by correcting voltage discrepancies during charging and discharging, keeping your battery pack performing at its best.
• Low Energy Consumption: With a low static power consumption of less than 20A, this energy management board minimizes energy loss while balancing, making it highly efficient for long-term use.
• High Precision Design: Built with ultra-low tolerance MOS and a balance current of up to 1.2A, this energy transfer board ensures smaller voltage differences between cells, leading to more stable battery performance.

Item Type: 1.2A Inductive Balancer
Material: PCB
Harness Specification: 22AWG
Technical Parameter:
Working Voltage 2.0V-4.5V, Ternary Iron Lithium Battery is Common, Lto Lithium Titanate Battery is Not Suitable
Balance Current:
The Adjacent Voltage Difference is More Than 0.1V (the Current is About 0.5-0.7A)
Adjacent Voltage Difference is More Than 0.2V (reaches the Maximum Equilibrium Current of 1.2A)
The Smaller the Voltage Difference, the Smaller the Balance Current
Wiring Definition:
B-, the Total Negative Pole of the Battery Pack (the Negative Pole of the First Battery)
B1, the Positive Pole of the First Battery
B2, the Positive Pole of the Second Battery
B3, the Positive Pole of the Third Battery
B4, the Positive Pole of the Fourth Battery
B5, the Positive Pole of the Fifth Battery
B6, the Positive Pole of the Sixth Battery
B7, the Positive Pole of the Seventh Battery
B8, the Positive Pole of the Eighth Battery

Package List
1 x 1.2A Inductive Balancer1 x Cable

Note:
Because of the working principle of adjacent equalization, it cannot be used as a maintenance tool. To connect to the battery, it must be used together with lithium battery protection. The voltage difference generated by charging and discharging triggers the work of the equalizing plate to realize energy transfer and equalization.
