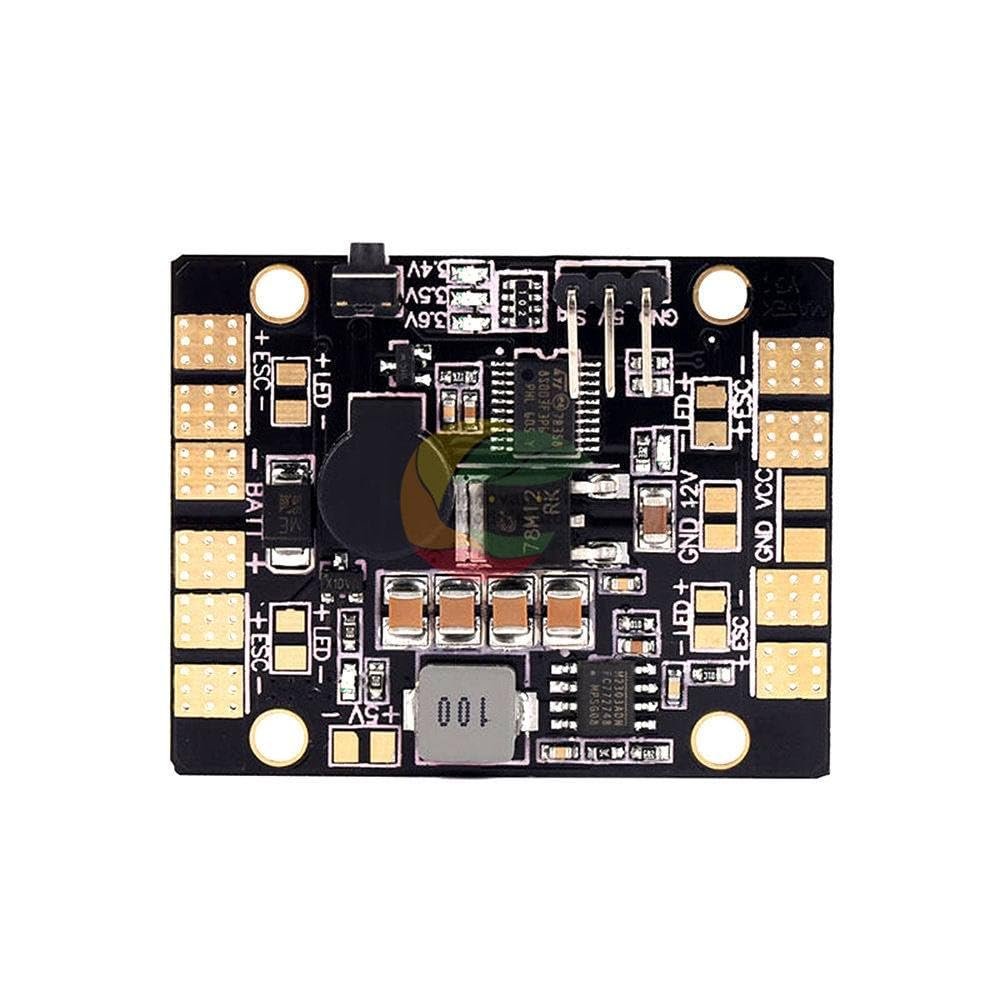

Matek 5in1 V3 Power Distribution Board/PDB Hub with Dual BEC-5V/12V LED Controller Tracker Low Voltage Alarm for FPV

Description

• Matek 5in1 V3 Power Distribution Board / PDB Hub With Dual BEC-5V/12V LED Controller Tracker Low Voltage Alarm for FPV

5in1 V3 Distribution Board LED PDB Control Power Hub Tracker Low Voltage Alarm
5in1V3 is designed to provide the highest performance and reliability for 46*36mm and 4-layer PCBs.
It is a 5in1 HUB with distribution board, BEC 5V/3A and 12V/500mA, LED light controller, lost plane detector and low voltage alarm function.
It is designed for multi-rotor, mini FPV quad. The built-in 5V BEC can be directly connected to the receiver or flight controller and Aux pins.
Simplify wiring. BEC 12V can be used to power cameras, video transmitters, etc. Built-in 5V LED light controller, three flashing modes can be selected and the transmitter's toggle switch. And the buzzer can also be triggered by a toggle switch, which can help you find a tall model
Grass or tree. 5in1 is also used as a battery voltage monitor. Once the voltage is lower than the threshold you set, the buzzer and LED lights will remind you
specification:
Brand: Matek
Input voltage range (3S-6S work): 9-26VDC
1 battery input and 4 ESC output
Regulated 5V and 12V output
LED power indicator (5V and 12V output)
4 pairs of 5V LED light pads
Low voltage setting value indicator
Size: 46x36x6mm,
Weight: 9g
Mounting hole 30.5mm square pitch
feature:
Built-in 5 functions, small size and light weight
2oz copper and 4-layer PCB.
ESC and battery solder tabs are paired
BEC 5V and 12V output LED indicator
TVS input protection
Package Included:
1 X Matek LED and power box 5in1 V3 board
