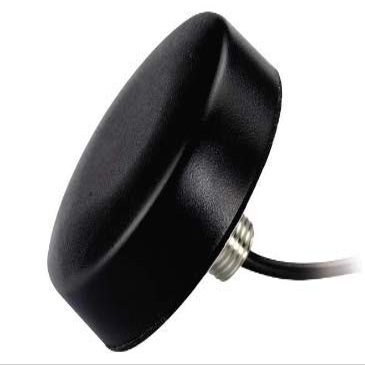

MASWELL GPS Active Antenna Cylinder Screw Mount Connector Type: MMCX

Description

• GPS CENTER FREQUENCY: 1575.421MHz.Ideal for GPS signal boosting of the GPS device and other CPE devices! Ideal for car roof top or top box GPS signal boosting.
• PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
• MULTIPLE Applications: IoT, industrial controls, Smart power meter, Smart water meter, GNSS system.
• IP67 WATERPROOF: This antenna is completely waterproof IP67 . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
• 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please tell us and if the good is with any quality issue, we're happy to offer you a new one!

ITEM ID: AN_GPS_A003
GPS Active antenna cylinder screw mount Antenna

Center Frequency:1575.421MHz
Band Width:CF5MHz
Polarization:RHCP
Gain:2dBicZenith
V.S.W.R:1.5
Impedance:50
Axial Ratio:3dBmax
Dimension:D46.6*14.5mm

LNA

Gain:282dB
Noise Figure:1.5
Filter Insertion Loss:3dB
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage:2.2~5V DC
Current Consumption:5~15mA
V.S.W.R:2.0

Mechanical

Cable:RG174,3 meters
Connector:SMA/MCX or MMCX
Radome Material:ABS
Mounting Method:Screw

Environmental

Operating Temperature:-40~+85
Relative Humidity:Up to 95%
Ingress Protection:IP65~IP67 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant

Ideal for GPS signal boosting of the GPS device and other CPE devices!
