Malahit ATU-1000 ATU1000W Automatic Antenna Tuner 7x7 by N7DDC 1602 LCD Full DIY Kits Without case ATU 100 Upgraded Version

Description

• Full kits without caseDIY kits need to have soldering ability.
• Features:SMT chip resistors have been soldered.
• Screen:1602 LCD display.
• Firmware Version:Has flashed the latest firmware3.2 Version.

ATU 1000 Watts tuner, 7x7 based on PIC 16F1938.
NOTE
1.DIY kits need to have soldering ability.

2. The firmware program has been finished the latest firmware.

3.SMT chip resistors have been soldered.
PCB Size: 270 mm x 136 mm
The board has flashed the latest firmware and SMT:

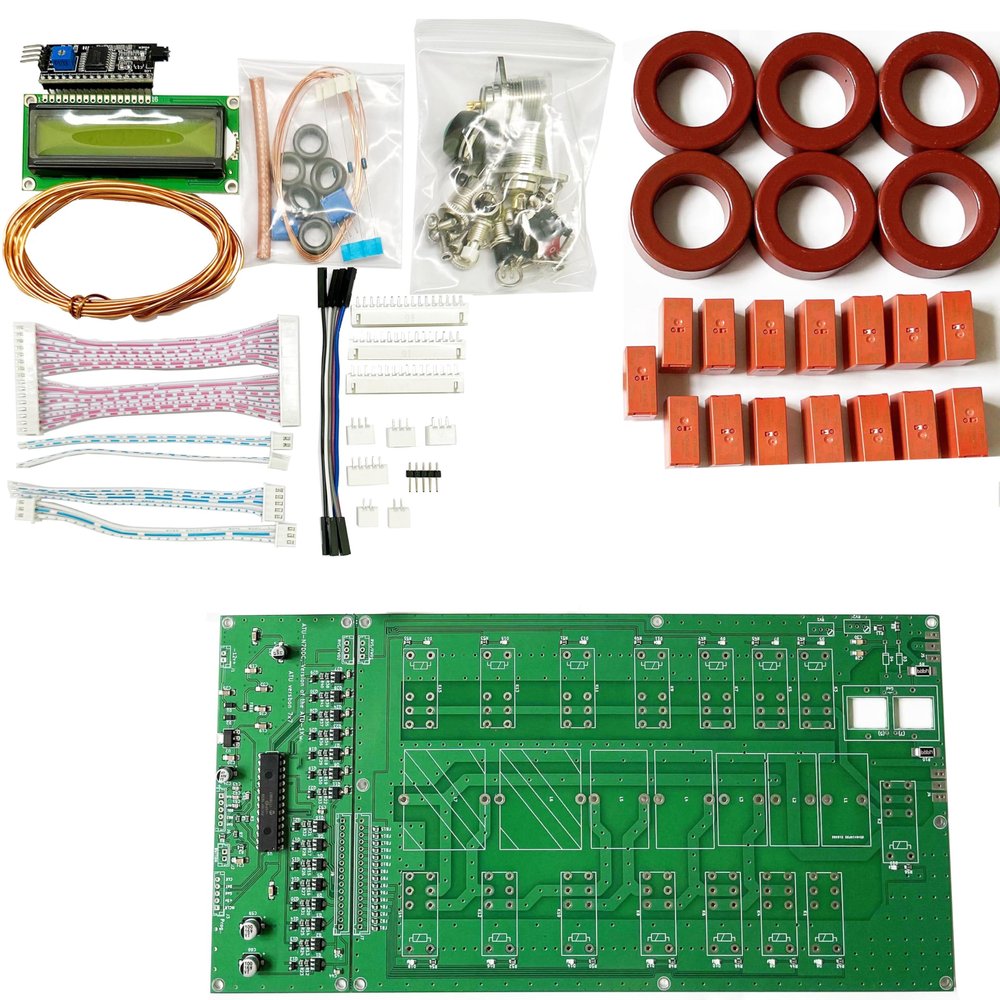

DIY Kit included:
1.PCB :For ATU-1000W 7X7 HF autotuner
2.Other accessories
-Toroids:
- T200-2 (6pcs);

- FT50-43 (4pcs).
-Parts:
1. PIC16F1938 (1pcs) the chip has programmed the latest firmware.
(Note that users cannot directly use ATU-100W firmware to update 1KW,as their firmware is not the same.)
2. 7PCS SMD capacitor: NPO material, withstand voltage 3KV-4KV
3. all other SMD parts (All SMD electronic components have been welded by machine, no need for manual welding)
4. relay 12VDC-SL-1C (SCHRACK relay Chinese made relays) (15pcs).
5. 1602 LCD screen(bigger one).
6. An assembly manual is in the package.
