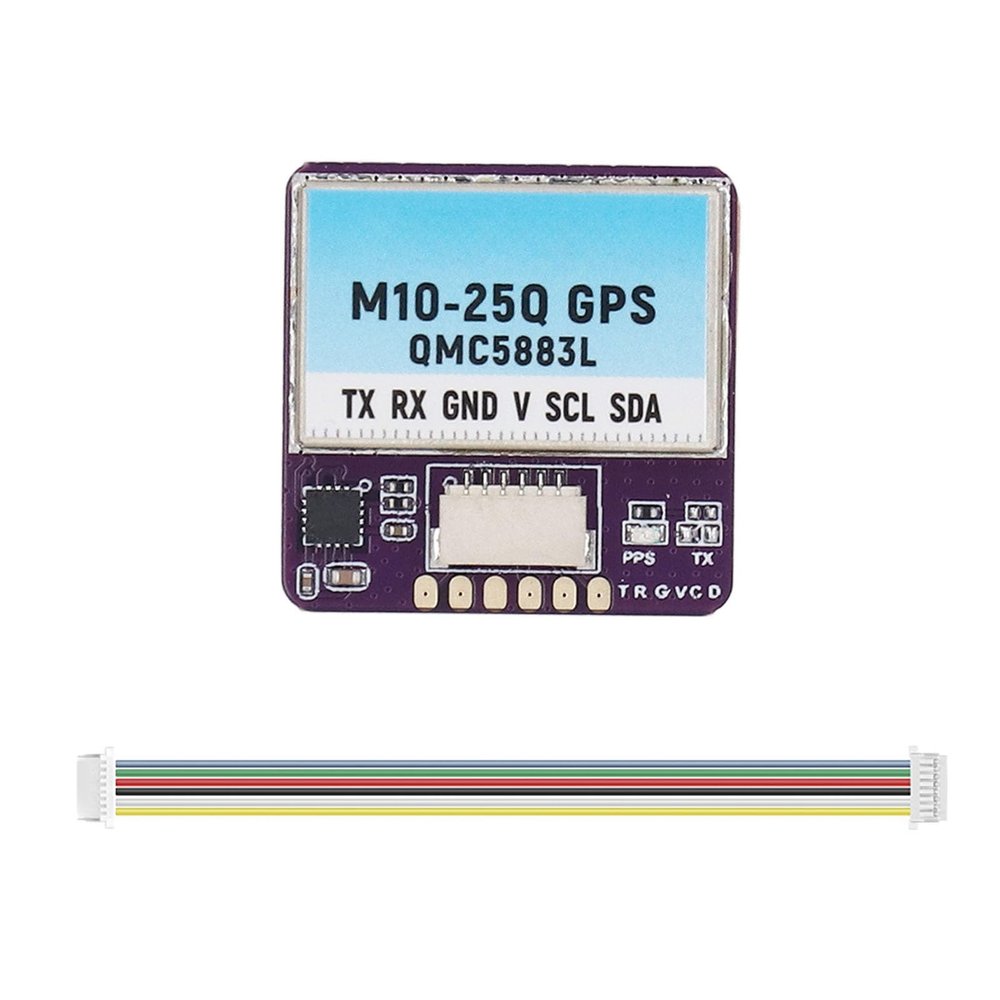

M10-25Q Module Satellite Positioning Module Replacement with Connecting Cable

Description

• Module Specifications: M1025Q module, integrated for QMC5883L compass, 10th generation chip, double output protocol and 10Hz output frequency, with low power consumption, fast locating
• Ceramic Antenna: This module adopts excellent ceramic antenna, which has strong performance, better stability, high efficiency, with 72 search channels, and has a wider range of applications
• Easy Installation: The flight controller module has a compact structure and is easy to install, fits for FPV racing drone, meeting the installation needs of various sizes of drone on the market
• Connection Methods: Equipped with SH1.06P socket and PCB pad interface, this module supports two connection methods of direct plug in and soldering pad, which has strong compatibility
• Accurate and Sensitive: This module features 0.05m/s speed accuracy, with 2D ACC1.5m horizontal locating accuracy, 162dBm tracking and 160dBm acquisition receiving sensitivity

1. Module Specifications: M1025Q module, integrated for QMC5883L compass, 10th generation chip, double output protocol and 10Hz output frequency, with low power consumption, fast locating
2. Ceramic Antenna: This module adopts excellent ceramic antenna, which has strong performance, better stability, high efficiency, with 72 search channels, and has a wider range of applications
3. Easy Installation: The flight controller module has a compact structure and is easy to install, fits for FPV racing drone, meeting the installation needs of various sizes of drone on the market
4. Connection Methods: Equipped with SH1.06P socket and PCB pad interface, this module supports two connection methods of direct plug in and soldering pad, which has strong compatibility
5. Accurate and Sensitive: This module features 0.05m/s speed accuracy, with 2D ACC1.5m horizontal locating accuracy, 162dBm tracking and 160dBm acquisition receiving sensitivity

Spec:
Item Type: Module
Model: M10-25Q
Chip: For M10
Frequency: L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Power Supply: 5V
Product Size: Approx. 25 x 25 x 8mm / 1 x 1 x 0.3in
Interface: SH1.0-6P Socket, PCB Solder Pad
Antenna: Ceramic Antenna
Receiving Channels: 72 Search Channels
Baud Rate: 115200
Output Protocol: for NMEA, for protocol
Compass: For QMC5883L
Output Frequency: 1Hz-10Hz, Default 10Hz
Speed Accuracy: 0.05m/s
Horizontal Locating Accuracy: 2D ACC1.5m ()
Receiving Sensitivity: Tracking -162dBm, Acquisition -160dBm
Working Temperature: -40-85
Storage Temperature: -40-105

How to Use:
Match the appropriate model type before using

PackageList:
1 x Module
1 x Connecting Cable
