lux Meter, LS330 Spectral Illuminance Meter Luxometer Light Digital CCT UVI CRI Ra Lx FC Flicker Frequency Lighting Intensity Brightness Measurement

Description

• Experience precise color accuracy with the LS330 bringing unrivaled spectral analysis for any lighting conditions at your fingertips
• Effortlessly measure glare with LF330 incorporating CRI Ra data helping to enhance illumination quality for photography presentations
• Take indoor and outdoor setups to a new level with instant Litexi calculated readings ensuring youve got just the right amount of light
• Monitor subtle light fluctuations easily using the LS330 exploring flicker frequency helping you create optimal environments seamlessly
• Enhance health and productivity using UVI impacts measured instantly customize lighting conditions with electromagnetic insights

Description

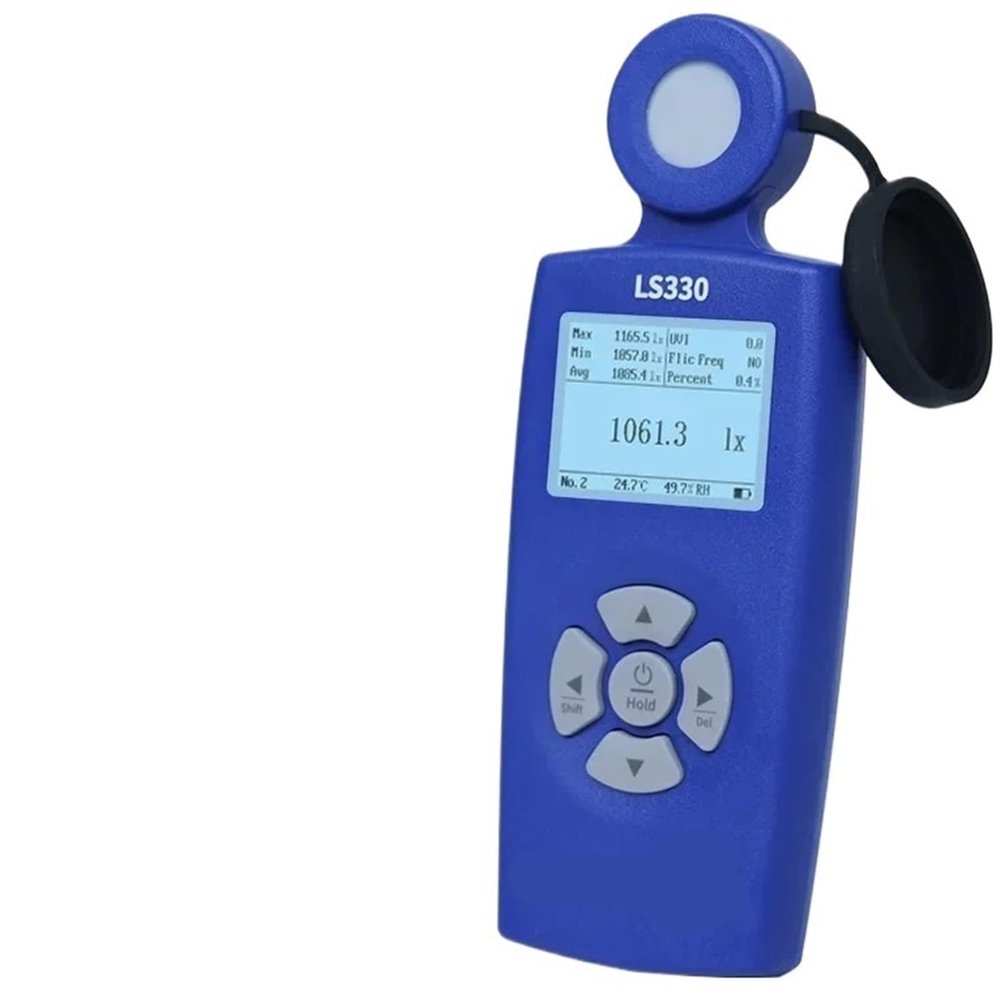

LS330 spectral illuminance meter is a versatile instrument designed with a spectral sensor. The illuminance meter is used for measuring Lux, UV index, flicker frequency, standard deviation of color matching (SDCM), color rendering index (CRI), correlated color temperature (CCT), blue light hazard ratio, temperature, and humidity in various scenarios such as lamps and lanterns lighting, outdoor lighting, greenhouse lighting, and stage lighting. The Lux meter digital also can display the spectral curve, which helps identify the type of lighting fixture.
Specifications
1.Illuminance Wavelength Range: 400nm
700nm
2.Illuminance Wavelength Interval: 10nm
3.Illuminance Measurement Range: 0
1000000 Lx
4.Illuminance Resolution: 0.1 Lx
5.Illuminance Measurement Accuracy: (3%H + 2 Lx) (H is the standard value, calibrated under CIE standard A light source)
6.Illuminance Unit Options: Lx (default), FC
7.Correlated Color Temperature Measurement Range: 1000
100000K
8.UV Index Measurement Range: 0.0
15.0
9.Flicker Frequency Measurement Range: 10
500 Hz
10.Temperature Measurement Accuracy: 0.5
11.Humidity Measurement Accuracy: 4%RH
<;0.7 seconds
13.Test Aperture Diameter: 21mm
14.Size: Length 188.5mm Width 75.2mm Height 30.3mm
15.Weight: About 232g (including batteries)
16.Display: 240*160 Dot Matrix LCD
<;85%RH
Features
1.Simple operation, complete functions.
2.1000000 Lx ultra-large range, suitable for various illuminance measurements.
3.Spectral sensor suitable for the human eye , the spectral response matches the V() function.
4.Flicker measurement can evaluate if lighting pass authoritative metrology inspection.
5.CRI measurement function can assess how well the light source reproduces the true colours of objects.
6.CCT measurement function can identify if the color temperature of lighting meets requirements.
7.It can display spectral curve, identify if the lighting is full- LED.
8.It can measure UVI, temperature, and humidity, suitable for greenhouse light source detection.
Wide Application
The luminometer adopts a spectral sensor design and is used for measuring various occasions such as lighting fixtures, outdoor lighting, greenhouse lighting, stage lighting, etc..
Simple operation
The spectral illuminance meter has completer function with simple interface.
1,000,000 Lux ultra-large range
The Lux meter digital has 1,000,000 Lux ultra-large range with 0.1 Lux resolution
Flicker measurement
The Lux tester can evaluate whether lighting meets requirements based on flicker frequency and percent flicker. This provides reference for sales and R&D of lighting
Measure CRI Ra and SDCM
The Lux meter can determine how well the light source reproduces the true colors of objects.
Accurate CCT measurement
The Light meter can help lighting manufacturers in fixture development and lighting design.
Spectral measurement function
The luminometer can identify the lighting as full- LED
Spectral response matches the V() function
The Lux meter digital ensures accurate measurement for different colored lights.
High precision
The Lux meter digital can pass authoritative metrology inspection.
Display BLHazard
The luxometer can objectively evaluate the blue light hazard of the lighting source.
(BLHazard is the ratio of the blue light hazard to the corresponding radiation amount. The larger the ratio, the greater the proportion of blue light.)
Measure UV index, temperature, and humidity
The Light meter is suitable for evaluating plant lighting sources.
Digital probe technology
The Lux meter digital probe ensure less interference, faster processing and accurate measurement.
Product details
1.Spectral Illuminance Meter*1
2.User Manual*1
3.Calibration Report*1
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
==========
Battery Included : No
Model Number : LS330
