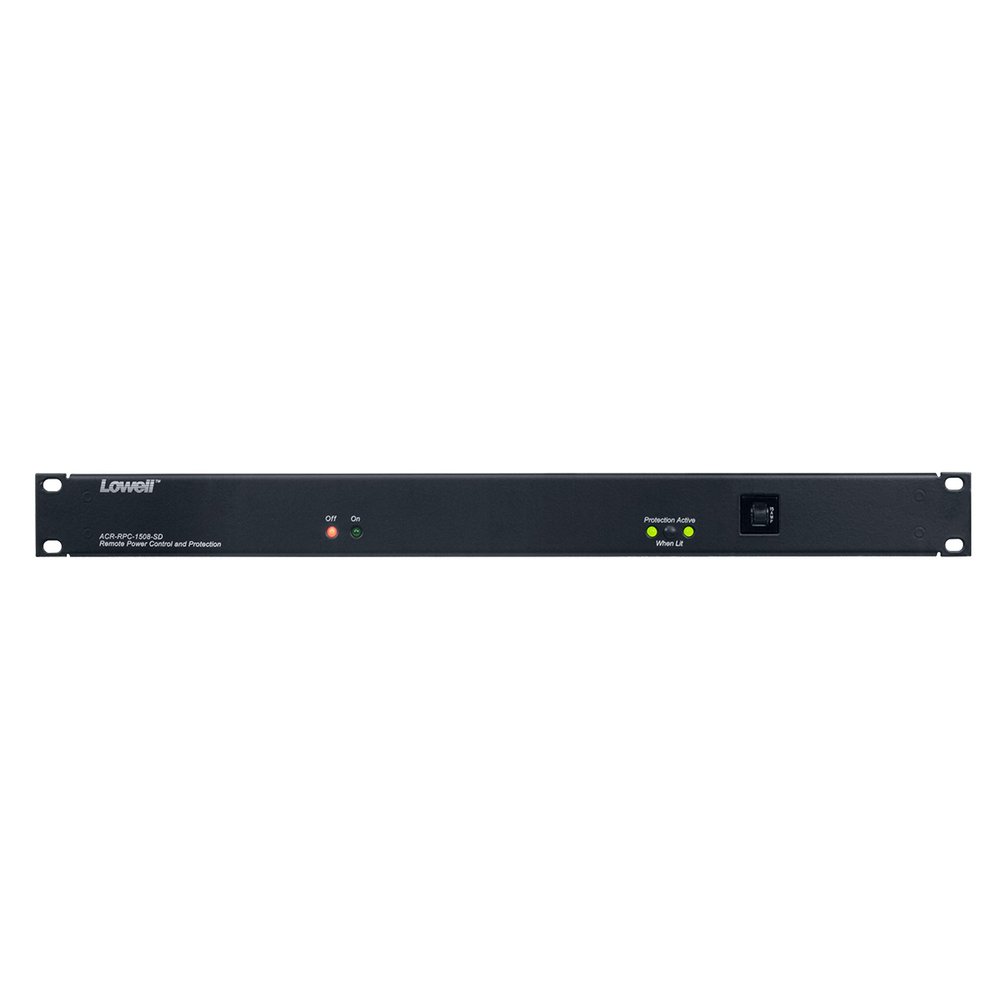

Lowell ACR-RPC-1508-SD PDU with 8 (15A) Outlets, Surge Suppression, Remote Circuitry; 8 Outlets: 2 Rear Un-Switched, 6 Rear Switched; 120VAC, 60Hz, 15A; Surge Protection to 40,000A

Description

• Outlets: 8 outlets (2 rear un-switched, 6 rear switched)
• Power Rating: 120VAC, 60Hz, 15A
• Termination: 9 ft. attached cord with NEMA 5-15P plug
• Surge protection to 40,000A
• Remote power control circuitry (RPC) allows for on/off control by switch or sequencer
• Integral override facilitates use in life safety applications where fire code mandates an alarm interface

Lowell ACR-RPC-1508-SD PDU with 8 (15A) Outlets, Surge Suppression, Remote Circuitry; 8 Outlets: 2 Rear Un-Switched, 6 Rear Switched; 120VAC, 60Hz, 15A; Surge Protection to 40,000A

This power distribution unit (PDU) is a 19-inch rack-mount panel that features remote control circuitry, surge protection, and 8 NEMA 5-15R receptacles. 6 outlets are to be controlled by a remote switch, external trigger voltage, alarm system, or sequencer (ordered separately). 2 outlets are always on. All outlets are clearly marked to assist the integrator with connections. The panel also includes includes basic surge suppression (maximum surge current 40,000A)

Key Features:
- Outlets: 8 outlets (2 rear un-switched, 6 rear switched)
- Power Rating: 120VAC, 60Hz, 15A
- Termination: 9 ft. attached cord with NEMA 5-15P plug
- Surge protection to 40,000A
- Remote power control circuitry (RPC) allows for on/off control by switch or sequencer
- Integral override facilitates use in life safety applications where fire code mandates an alarm interface
- Steel Chassis: 19 in. x 9.00 in. x 1.75 in. (1U)
- Activation: Rear barrier strip termination blocks for momentary (normally open) remote switches

Specifications:
- Power Rating: 15A
- Rear Outlets: 8 (15A)
- Surge suppression: yes
- Power Input: 9 ft cord
- Switch Type: ext
- Circuit Breaker Protection: 15A with reset switch
- Outlets Controlled by switch: 6
- Input from Remote Switch: yes
- Input from External Trigger: yes
- Input from Alarm System: yes
- Country of Origin: USA
- Certification: ETL Listed in US/Canada (UL60065)
- Chassis: 19 W x 9 D x 1.75 H (1U)
- Weght: 9 lbs
- Shipping Weight:
