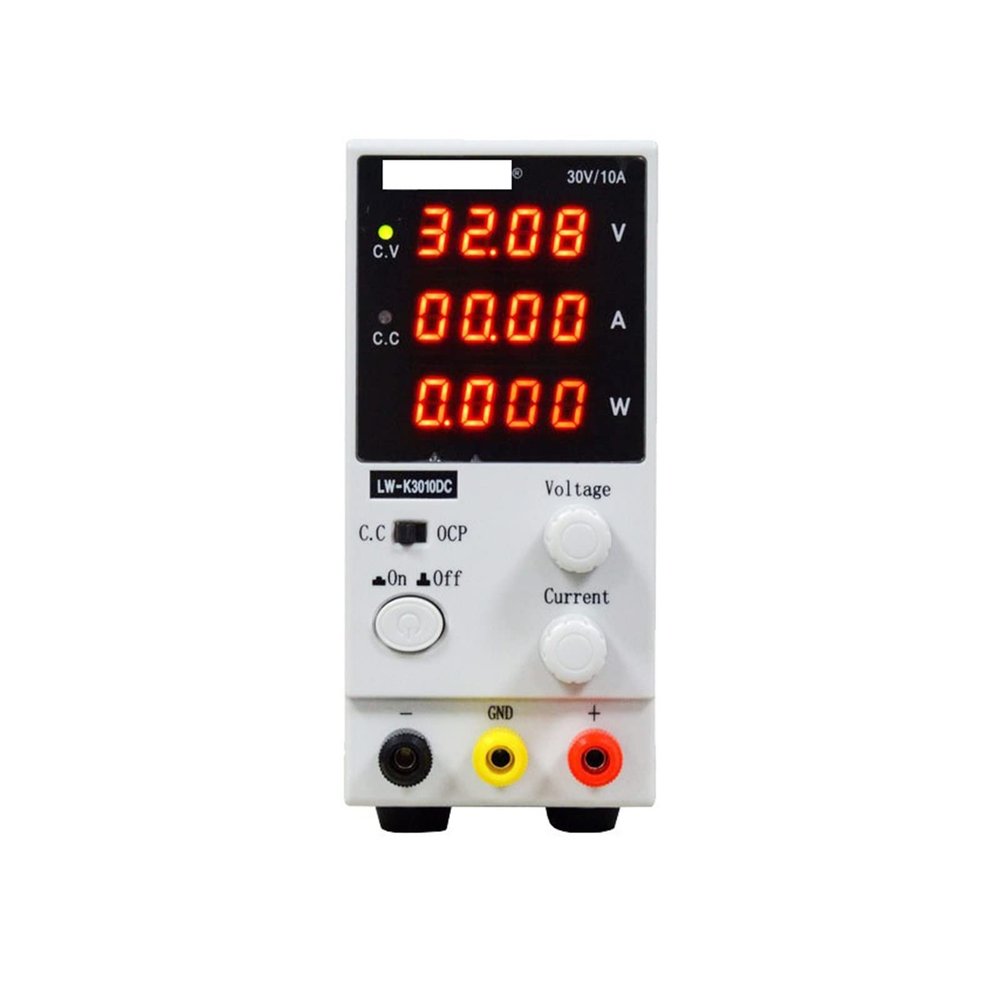

Low Ripple Variable DC Switching Regulated Power Supply for Mobile Repair

Description

• 1. Four-digit high-precision three-group LED digital display: current, voltage, power
• 2. 8 cm smart fan, excellent heat dissipation effect, effectively prolong the life of the fan and reduce noise.
• 3. Adopt advanced technology, effectively reduce the weight of the power supply and facilitate the movement of the power supply
• 4. Multiple protection functions, current limiting protection (OCP), over temperature protection (OTP), over power protection (OPP).
• 5. Plastic panel, more beautiful, coarse and fine adjustment knobs for voltage and current settings, making the settings more accurate.

1. Input voltage: 220V10% @50Hz5Hz
110V10% @60Hz5Hz
Switching or single voltage input
2. Output voltage: DC 0-30V
3. Output current: DC 0-10A
4. Display accuracy: 1% 1 word, voltage resolution 0.1V, current resolution 0.1A
5. Power-on delay: 1-2S Power-off delay: 1-6S (depending on the load)
6. Voltage stability: 0.2% +10mV
7. Current stability: 0.2% +10mA
8. Load stability: CV0.3% +5mV
CC0.3% +10mA
9. Ripple and noise: CV300mV (RMS)
CC20mA (RMS)
10. Machine efficiency: 80% (tested under full load)
11. Working environment: -10- +40, relative humidity 20%-80% (non-condensing)
12. Storage environment: -20- +80, relative humidity 20%-70% (non-condensing)
13. Withstand voltage test:
Input-Output: 1.5KVAC/1min
Input-Case: 1.5KVAC/1min
Output - Enclosure: 500VAC/1min
14. Grounding resistance: <;20m
15. Appearance dimensions: length 225mm*width 70mm*height 160mm
