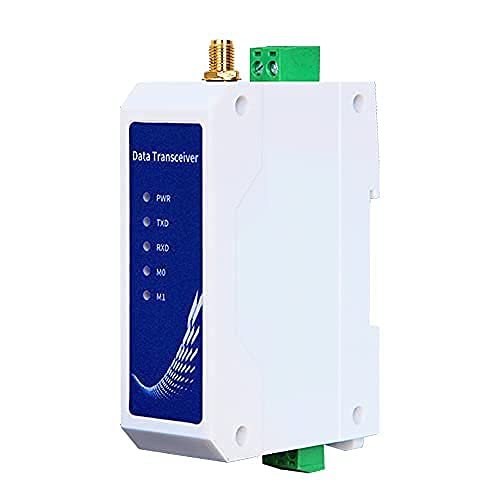

LoRa RS485 Modem Wireless Radio Station 433Mhz EBYTE E96-DTU(433L30-485) 30dbm Long Range Anti-Interference Spread Spectrum

Description

• E95/E96-DTU(433Lxxx) is a wireless data transmission DTU that uses military-grade LoRa modulation technology. It has a variety of transmission methods. It works at (410/441M) frequency band (default 433MHz). The DTU provides a transparent RS232/RS485 interface, plastic shell. rail type installation structure, support 8?28V?DC?/85?265V?AC? voltage input.
• LoRa spread spectrum technology will bring a longer communication distance and has the advantage of strong anti-interference ability.
• As a communication medium, wireless data transmission station has a certain scope of application like optical fiber, microwave and open wire: it provides real-time and reliable data transmission of monitoring signals in private networks under certain special conditions, with low cost, installation and maintenance Convenience, strong diffraction ability, flexible network structure, and long coverage.
• E95/E96-DTU(433Lxxx)suitable for many and scattered locations, complex geographical environment and other occasions, can be connected with PLC, RTU, rain gauge, level gauge and other data terminals
• Warranty: We have 1 year warranty. If you need user manual or any problems contact with us free.

Features
Adopt military-grade LoRa modulation technology, with data encryption, and the packet length can be set;
Adopt flame-retardant plastic shell, guide rail type installation structure, convenient and efficient installation;
Hidden buttons are used to switch working modes to avoid false triggers, and the equipment is more reliable in
operation;
Simple high-efficiency power supply design, support power supply configuration or line pressure mode, support
8-28V(DC)/85-265V (AC) power supply;
The transmit power can reach up to 20/30dBm, and supports multi-level adjustment. All technical indicators meet
European industrial standards;
Support Modbus protocol transmission;
Support wireless sending of command data packets, remote configuration or reading of DTU parameters;
Support communication key function, effectively prevent data from being intercepted;
Working temperature range: -40??+85?, adapt to various harsh working environments;
Multiple protection functions such as power pulse protection, reverse connection protection, and antenna surge
protection increase the reliability of the DTU;
The communication port and power interface adopt isolation and high protection;
Powerful software function, all parameters can be set by programming: such as power, frequency, air rate, address
ID, etc.;
Built-in watchdog and precise time layout. Once an abnormality occurs, the DTU will automatically restart and
continue to work according to the previous parameter settings
