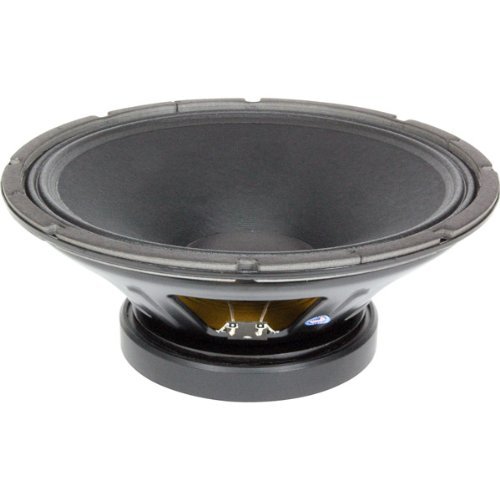

LIVEWIRE LLC 15 in. Subwoofer

Description

• Nominal Basket Diameter: 15, 381mm.
• Nominal Impedance: 8 ohms.
• Watts: 600W.
• Music Program: 1200W.
• Resonance: 39Hz.

Nominal Basket Diameter: 15", 381mm. Nominal Impedance: 8 ohms. Watts: 600W. Music Program: 1200W. Resonance: 39Hz. Usable Frequency Range: 38Hz - 2.7kHz. Sensitivity: 99dB. Gap Height: 0.37", 9.53mm. Voice Coil Diameter: 3", 76.2mm. Resonant Frequency (fs): 39Hz. DC Resistance (Re): 5.4. Coil Inductance (Le): 1.27mH. Mechanical Q (Qms): 6.08. Electromagnetic Q (Qes): 0.41. Total Q (Qts): 0.38. Compliance Equivalent Volume (Vas): 159 liters / 5.6 cu.ft. Peak Diaphragm Displacement Volume (Vd): 471cc. Mechanical Compliance of Suspension (Cms): 0.15mm/N. BL Product (BL): 18.6 T-M. Diaphragm Mass Inc. Airload (MMs): 105 grams. Efficiency Bandwidth Product (EBP): 95. Maximum Linear Excursion (Xmax): 5.5mm. Surface Area of Cone (Sd): 856.3 cm2. Maximum Mechanical Limit (Xlim): 10.4mm. Recommended Enclosure Volume. Sealed: N/a. Vented: 62-193 liters / 2.2-6.8 cu.ft. Driver Volume Displaced: 251.7 cu.in. / 4.12 liters. Overall Diameter: 15.16", 384.9mm. Baffle Hole Diameter: 13.87", 352.3mm. Front Sealing Gasket: Fitted as standard. Rear Sealing Gasket: Fitted as standard. Mounting Holes Diameter: 0.25", 6.4mm. Mounting Holes B.C.D.: 14.56", 369.9mm. Depth: 6.38", 162mm. Coil Construction: Copper voice coil. Coil Former: Polyimide former. Magnet Composition: Ferrite magnet. Core Details: Vented core. Basket Materials: Pressed steel basket. Cone Composition: Paper Cone. Cone Edge Composition: Cloth cone edge. Dust Cap Composition: Solid composition paper dust cap.
