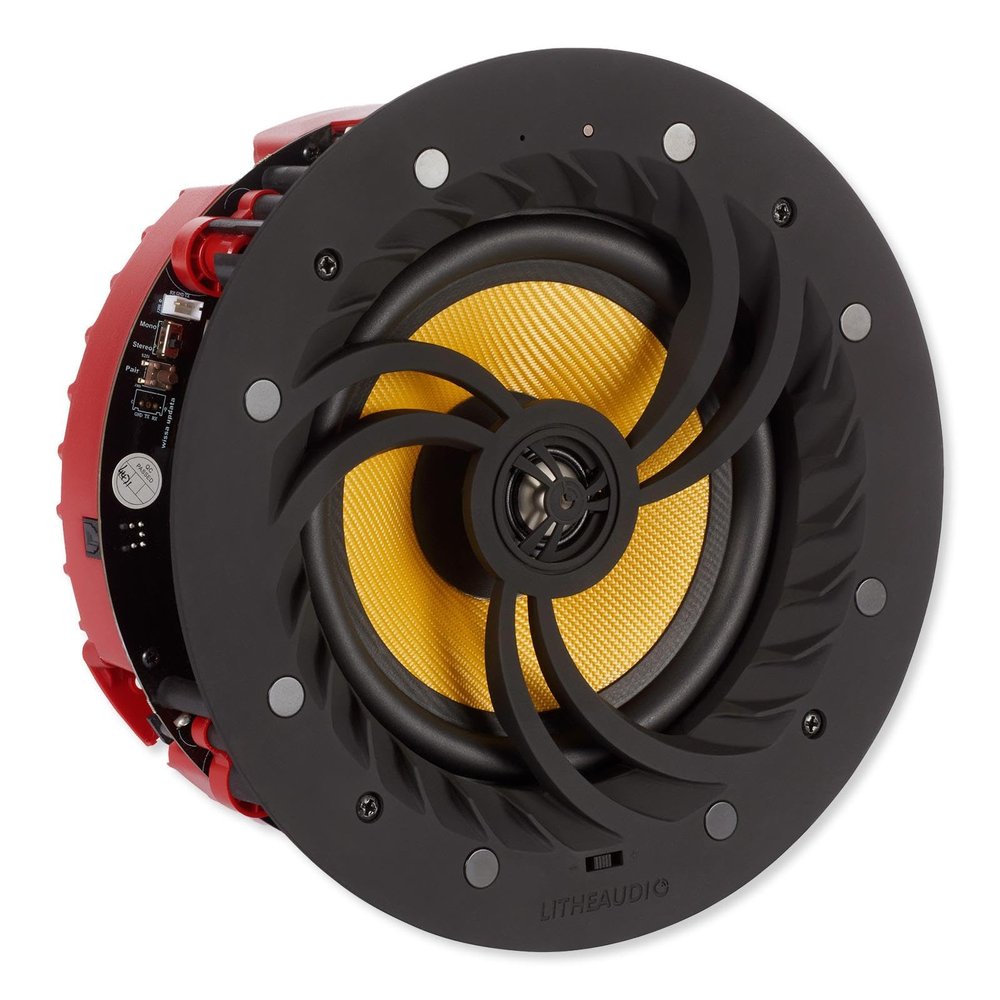

Lithe Audio 06500 Pro Series Wi-Fi Ceiling Speaker, Master Single

Description

• Master single speaker with built-in 60W RMS Class D amplifier and Wi-Fi receiver for all-in-one premium audio solution
• 2.4GHz and 5GHz Wi-Fi and Bluetooth connectivity enables wireless streaming from paired devices, plus wired input connection via Ethernet, optical, and DLNA/uPnP connections
• Apple AirPlay 2, Google Chromecast, and Spotify Connect certified
• Setup, pair devices and audio zones and adjust settings via the Lithe Audio mobile app for Android or iOS devices
• Scalable with audio configurations between 2.0 to 7.1 Channels with Lithe Audio and third-party speakers; supports Control4, Elan, KNX, & Loxone Drivers, plus optional WiSA compatibility for Dolby Atmos
• Master single speaker with built-in 60W RMS Class D amplifier and Wi-Fi receiver for all-in-one premium audio solution
• 2.4GHz and 5GHz Wi-Fi and Bluetooth connectivity enables wireless streaming from paired devices, plus wired input connection via Ethernet, optical, and DLNA/uPnP connections
• Apple AirPlay 2, Google Chromecast, and Spotify Connect certified
• Setup, pair devices and audio zones and adjust settings via the Lithe Audio mobile app for Android or iOS devices
• Scalable with audio configurations between 2.0 to 7.1 Channels with Lithe Audio and third-party speakers; supports Control4, Elan, KNX, & Loxone Drivers, plus optional WiSA compatibility for Dolby Atmos

Add an all-in-one wireless ceiling speaker anywhere within your home audio entertainment system with the Lithe Audio Pro Series Wi-Fi Ceiling Speaker (Single). As a member of Lithe Audio's PRO Series product line, this Wi-Fi and Bluetooth connected speaker is designed with a built-in amplifier and Wi-Fi receiver to provide everything needed to enjoy high resolution audio from a single location in your home with up to 30 audio zones or speakers for multi-channel or whole home audio setups. Its built-in 60W RMS Class D amplifier, woven glass fiber cone, and titanium tweeter can deliver audio at 192 KHz at 24 bits, allowing the speaker to emit the highest possible quality from any connected source. The Pro Series Wi-Fi Ceiling Speaker supports wireless input via Wi-Fi and Bluetooth, as well as wired connections via Ethernet, optical, or passive speaker gauge wire. The speaker is fully certified with Apple AirPlay 2, Google Chromecast, and Spotify Connect for wireless audio streaming of popular sources such as Spotify, Pandora, Napster, Deezer, Tidal, Amazon Music, and more! Master single speaker with built-in 60W RMS Class D amplifier and Wi-Fi receiver for all-in-one premium audio solution 2.4GHz and 5GHz Wi-Fi and Bluetooth connectivity enables wireless streaming from paired devices, plus wired input connection via Ethernet, optical, and DLNA/uPnP connections Apple AirPlay 2, Google Chromecast, and Spotify Connect certified Scalable with audio configurations between 2.0 to 7.1 Channels with Lithe Audio and third-party speakers Woven glass fiber cone and titanium cone produce high quality audio and pin sharp clarity Setup, pair devices and audio zones and adjust settings via the Lithe Audio mobile app for Android or iOS devices Optional WiSA compatibility for Dolby Atmos support, WiSA module (06521) sold separately Supports Control4, Elan, KNX, FIBARO & Loxone Drivers Voice control compatibility with Amazon Alexa and Google Assistant

Installation Details

The Pro Series Bluetooth & Wi-Fi Ceiling Speaker fits into ceilings with included mounting hardware and uses lighting circuits as its primary power supply out of the box. Simply cut holes in the desired locations in your ceiling, connect the speaker to the included Power Driver and your existing lighting circuit, and secure the speaker. The Pro Series Ceiling Speaker also supports Power over Ethernet (PoE) connection through the Lithe Audio PoE Adaptor Module (sold separately). The speaker is configured from the Lithe Audio app, from where you connect the speaker to your Wi-Fi network, adjust settings, and connect other Lithe Audio speakers into audio zones. Once initial setup is complete, the speakers can also be selected via Google Home, or Apple Airplay, or Chromecast compatible sources.
Lithe Audio App
The Lithe Audio app, for iOS and Android devices, lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up because it will automatically detect all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled. Lithe Audio Speakers are ideal for the entire family. With support for multiple users, everyone can be their own DJ using their Apple or Android smartphone.

Contents
Pro Series Bluetooth & Wi-Fi Ceiling Speaker Power Driver Cutting Template Instruction Manual

Notes
No additional amplifiers, audio switches or matrices, controllers, or routers necessary. For larger homes where Wi-Fi signals from a single router are not stable, using wireless access points or mesh routers to strengthen the network is recommended. Hard wired ethernet connection can also minimize signal loss.

Technical Details
Manufacturer Part #: 06500 EAN: 5060544554792 Network Connection: Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac) Connectivity: Wi-Fi Certified (2.4Ghz or 5Ghz) Bluetooth Ethernet Connection In / Out Optical DLNA/uPnP connections Apple AirPlay 2 certified Google Chromecast certified Spotify Connect certified WiSA with optional bolt-on module (LI06521 sold separately) DLNA/uPnP connections Recommended Routers: Archer MR600 (TP-Link) UDM (Ubiquiti) 2866AC-K (Draytek) Woofer: 6.5" Woven Glass Fiber cone Tweeter: 0.75" Titanium Cone Switch: Mono/Stereo RMS Power: 60W RMS (2 x 30W) Impedance: 8 Ohms nominal Sound Quality: THD+N 0.009%, 55Hz-20kHZ ( 3dB) Sensitivity (1W/1m): 90dB Audio Compression: 192Khz/24bits Amplifier: Class D (Digital) Line In (Optical): Auto detection Cut-Out Diameter: 210mm Power Input Supply: 100 240V, 50/60Hz / 2A Transformer Output Supply: DC24V / 2.5A Standby Power: 1.3W / 0.02A Connected Power: 1.5W / 0.03A Playing Music: 2.8W 10.5W / 0.03A 0.09A Dimensions: 9.05 W x 4.33 D
