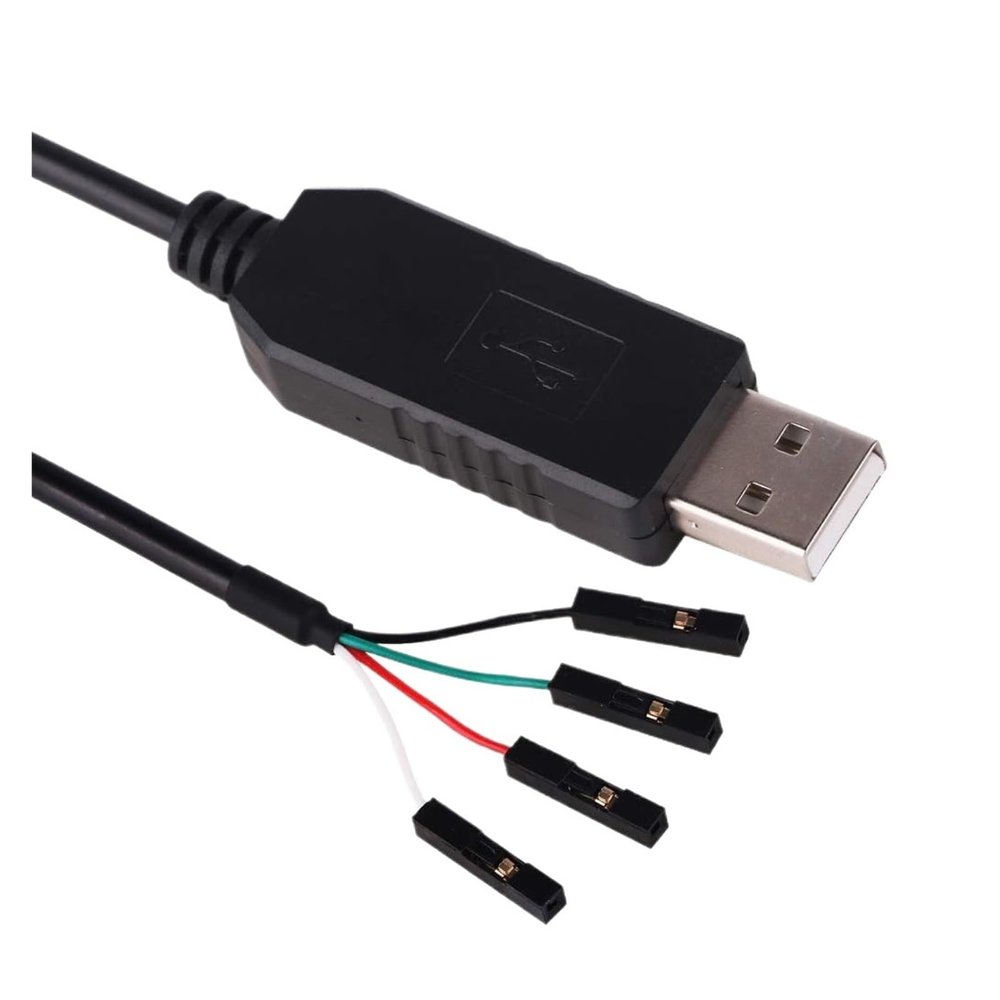

LINGQE USB Serial Cable RS232 Converter 2.54mm Terminal 4 Pins F1T-D2I 4P Adapter 1.8M

Description

• 1. Single chip USB to asynchronous serial data transfer interface.
• 2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
• 3. Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
• 4. Fully integrated USB termination resistors.
• 5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.

USB to 4 Pins 2.54mm Terminal RS232 Serial Converter Cable
Chipset: F1T-D2I FT232RNL
Length: 1.8M
Wire Info : 28 AWG ,4 Core, OD 3.5mm ,Pure Copper ,P-VC Jacket
Internal EEPROM with user writeable area.
Pinout: TXD, RXD, GND, VCC(+5V)
Typical Applications
USB to serial RS232 level converter.
Upgrading peripherals to USB.
Interface Microcontroller UART or I/O to USB.
Interface FPGA or PLD to USB.
USB Instrumentation PC interface.
USB industrial control.
USB password protected file transfers.
The F1T-D2I FT232RNL Chip Features:
1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
4. Fully integrated USB termination resistors.
5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
6. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, RS232) at TTL levels.
7. 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
8. F1T-D2I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
9. USB FTDIChip-ID feature.
10. Configurable CBUS I/O pins.
11. Transmit and receive L-ED drive signals.
12. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space /no parity
13. FIFO receives and transmits buffers for high data throughput.
14. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
15. Device supplied pre-programmed with USB serial number.
16. Supports bus powered, self-powered and highpower bus powered USB configurations.
17. Integrated +3.3V level co
