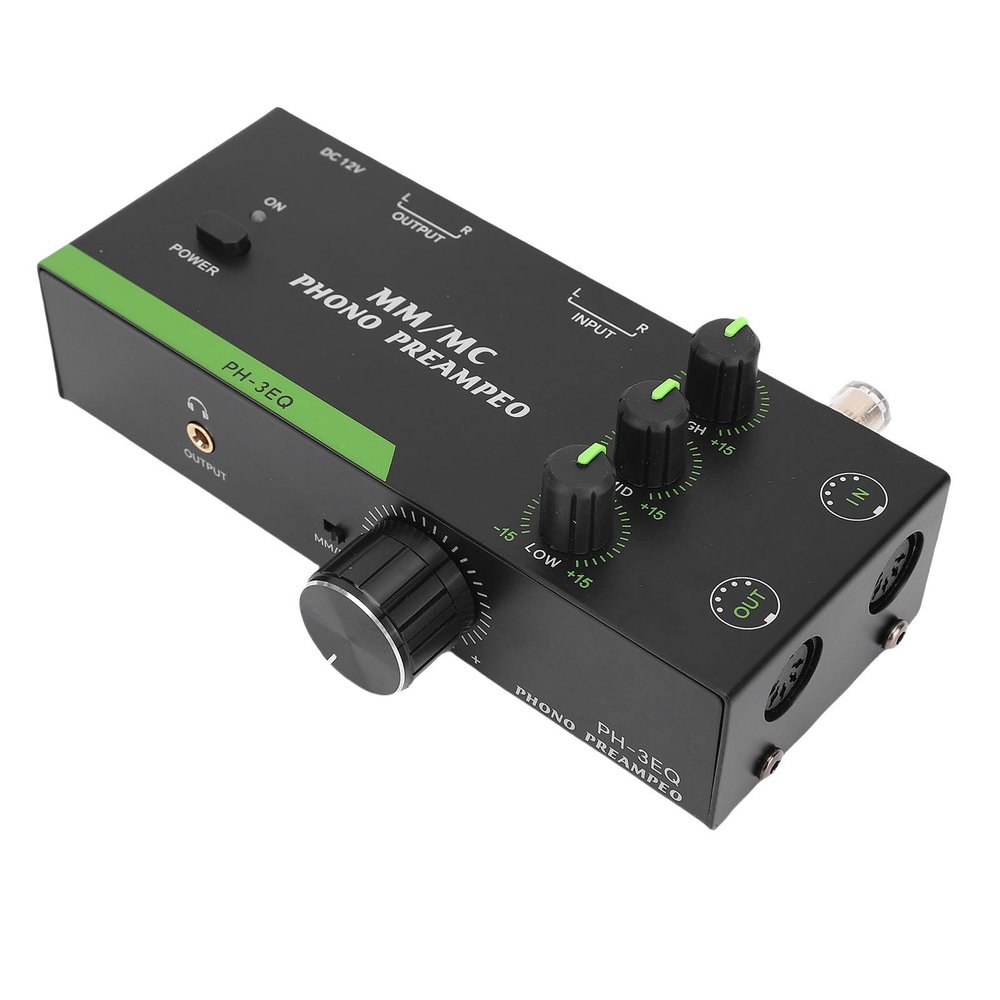

LiebeWH Professional Universal MM MC Phono Preamp for Turntable Record Player with Adjustable Equalizer and Balanced XLR Input Output for Studio Quality Audio (US Plug)

Description

• Balanced Sound: This phono preamp captures weak turntable signals applying balanced compensation for rich authentic record tones and studio clarity
• MM MC Switching: This phono preamp supports both MM and MC cartridges providing line output for speakers and headphone output for versatile listening
• Adjustable EQ: This phono preamp features independent high mid low frequency controls from negative fifteen dB to positive fifteen dB to tailor jazz warmth classical depth or guitar brilliance
• XLR Input: This phono preamp uses 5 pin XLR inputs outputs to reduce electromagnetic interference ensuring pristine signal transfer to mixers or audio interfaces
• Turntable Compatibility: This phono preamp bridges vintage and modern turntable systems with low noise circuitry and aluminum alloy housing

1. PURE AND BALANCED, ENHANCING SOUND QUALITY: Phono preamp can accurately catch the weak sound signals output by the playback head and simultaneously perform balanced compensation based on the recording standards of the record to restore the original rich tone of the record
2. INPUT AND OUTPUT: The phono preamplifier offers MM/MC mode switching for the line output of active speakers and 3.5MM headphone output to achieve maximum flexibility
3. THREE FREQUENCY ADJUSTMENT: The professional mini preamp supports independent adjustment of high, medium and low frequencies, with a wide range of control from -15 to +15. The melodious low frequencies of classical music, the lively mid frequencies of jazz, and the clear high frequencies of classical guitar can all be changed according to your preferences
4. FIVE PIN XLR INPUT OUTPUT: Adjustable phono preamp can balance the connection of microphones and line level devices(such as mixing consoles, sound interfaces, etc.), effectively reducing electromagnetic interference, transmitting quality sound signals, and ensuring clear and stable sound
5. FUNCTIONS AND EFFECTS: The stereo phonograph preamplifier enables trusted sound signal transmit among sound devices and can be used for turntable and record players

Specification:
Item Type: MM/MC Phono Preamp
Transmission: 10Hz-20kHz (+/- 0.5dB); 10kHz-50kHz (+/- 2dB)
Distortion Coefficient: Input Sensitivity: MM: 58 MV, MC: 6.8mV
Signal To Noise Ratio: MM>83 dB, MC>70 dB
Input Impedance: MM: 47 KOhm, MC: 100 Ohm
Output Impedance: 250 Ohm, Gain Ratio: MM: 40 DB, MC: 60 dB
Input Capacitance: 300pf
Input: 1 x Stereo, 1 x 5 pin DIN (DCIN PHO-300)
Output: 1 x Stereo, 1 x 5 pin DIN (DC OUT PHO-300ps)
Maximum Power Consumption: 10W
Material: Aluminum alloy

How to Use:
Direct installation and use

Package List:
1 x MM/MC Phono Preamp
1 x User Manual
1 x Supply Cord
