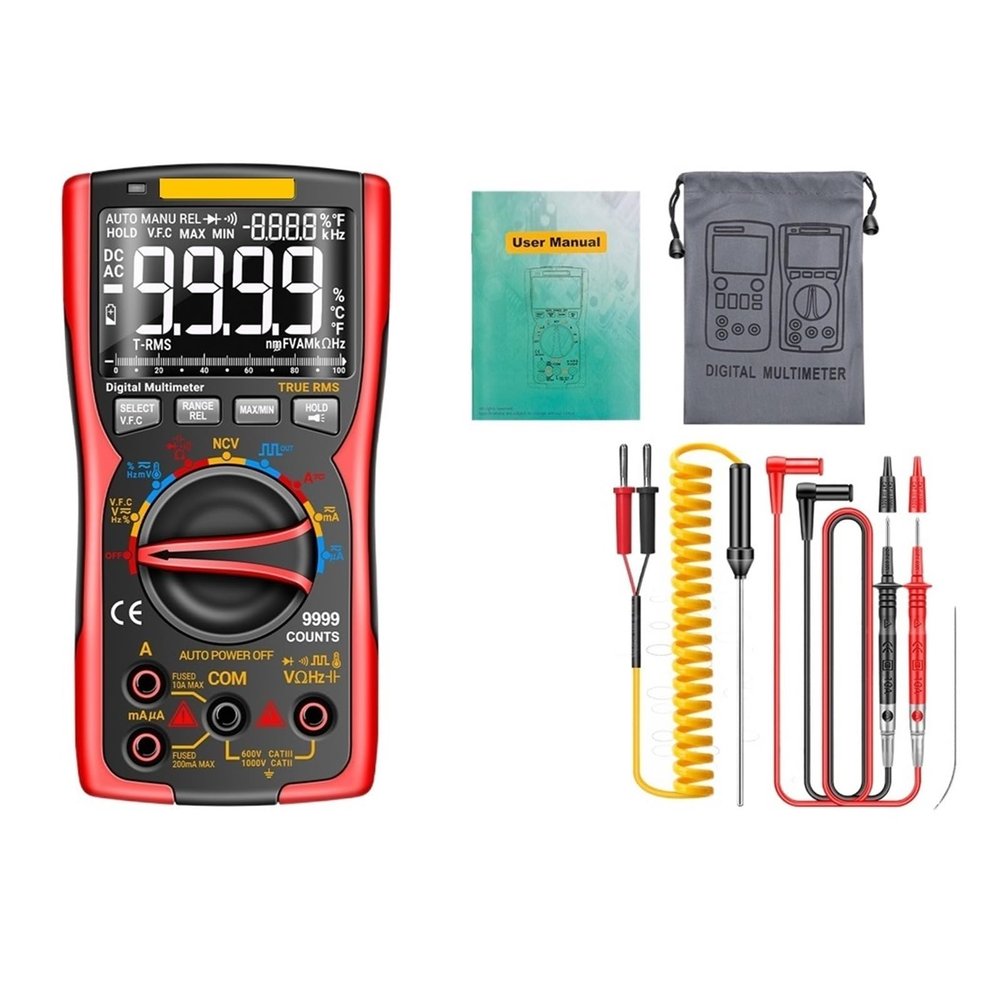

LIBODD Transistor Capacitor NCV Detector LCR Meter Digital Multimeter 9999 Professional True RMS AC/DC Analog Tester(SZ18 Red)

Description

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Data processing: More extensive data processing and analysis.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.

Description:
Is an automatic range digital multimeter with 9999 words with a true effective value. The instrument is full-key operation with triple display.
Measure AC voltage and DC voltage
Measure AC and DC current
Measuring resistance/temperature
Test continuity and diode
Measuring capacitance/NCV
Measuring frequency and duty cycle
Anti-interference AC voltage detection
Specification:
Display (LCD)
9999
Range
automatic / manual
Material
ABS+TPE
Sampling rate
3 times/sec
True RMS
yes
Data retention
yes
Screen backlight
yes
Low battery warning
yes
Automatic shut-down
yes
type of battery
3 * 1.5V AA battery (not included)
Features
Range
Precision
AC frequency response
DC Current
9.999A/999.9mA
(1.0%+3)
-
DC Current
99.99mA/9.999mA/99.99A/999.9A
(0.8%+3)
-
AC current
9.999A/999.9mA
(1.2%+3)
40Hz~1kHz
AC current
99.99mA/9.999mA/99.99A/999.9A
(1.0%+3)
40Hz~1kHz
DC voltage
999.9mV/9.999V/99.99V/999.9V/9.999mV/99.99mV/999.9mV
(0.5%+3)
-
AC voltage
999.9mV/9.999V/99.99V/750.0V/9.999mV/99.99mV/999.9mV
(1.0%+3)
40Hz~1kHz
Resistance
99.99
(1.0%+3)
-
Resistance
999.9/9.999k/99.99k/999.9k
(0.5%+3)
-
Resistance
9.999M
(1.5%+3)
-
Resistance
99.99M
(3.0%+5)
-
Capacitance
9.999nF
(5.0%+20)
-
Capacitance
99.99nF/999.9nF/9.999F/99.99F/999.9F
(2.0%+5)
-
Capacitance
9.999mF
(5.0%+5)
-
Temperature
(-20~1000) / (-4~1832)
(2.5%+5)
-
Duty cycle
1%~99%
diode
yes
On and off
yes
NCV
yes
working environment
temperature
0~40
humidity
<;75%
Package:
1 * Digital Multimeter
2 * Test lead wire
1 * Thermocouple
1 * Manual
1 * Cloth bag(According to the choice)
1 * 16 in 1 combination line(According to the choice)
