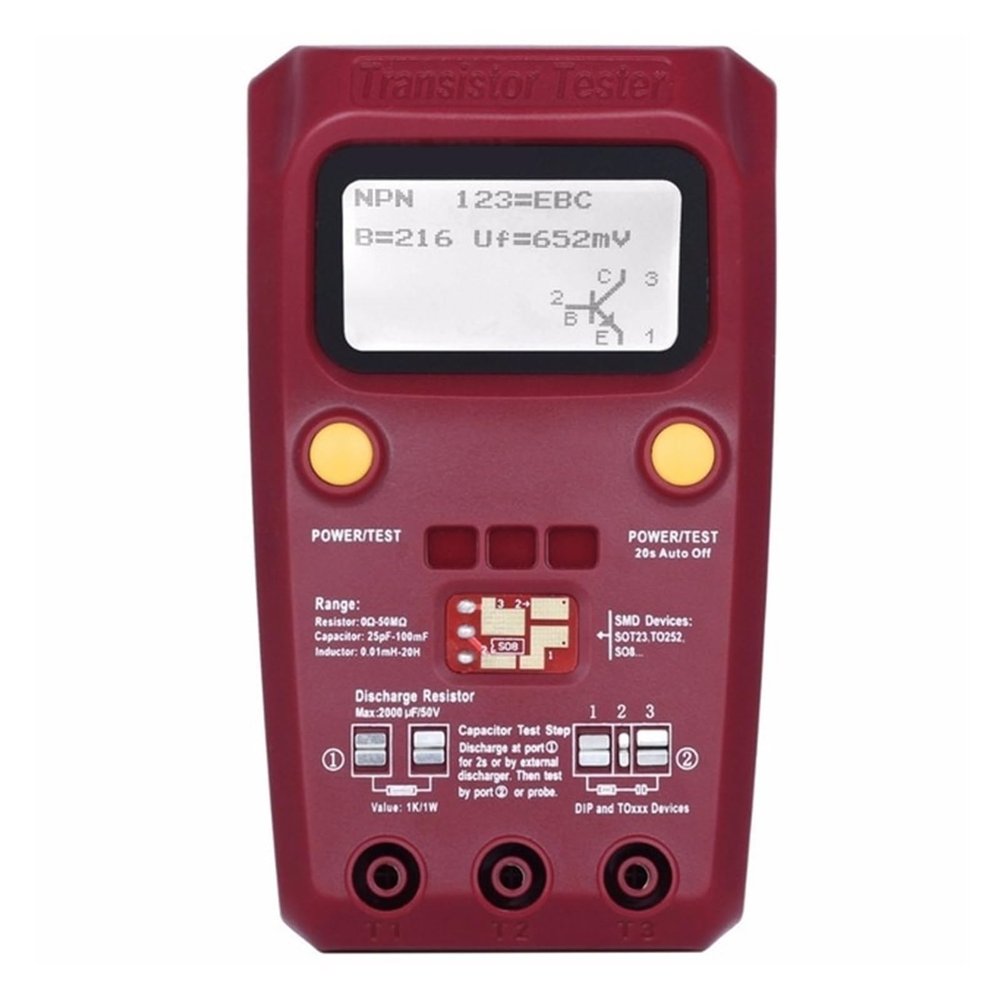

LIBODD Digital Transistor Tester Multimeter SMD Components Diode Triode Capacitance Inductance Resistance LCR Meter(ESR02PRO-Red)

Description

• This instrument is an instrument developed for electronics engineers, developers, electronic repair, production plants and enthusiasts.
• It is very easy to test plug-in and SMD devices, also can test different kinds of diodes,triodes, thyristors, MOSFET, enable to analysis the device type.
• The polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.
• Support calibration function, you can choose to have original test clips.
• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.

Parameters:
Resistance: 0-50M. Resolution: 0.01.
Capacitance: 25pf-100mf. Resolution: 1pf.
Inductance: 0.01mH-20H. Resolution: 0.01mH.
Measuring capacitance ESR resolution: 0.01.
Things to note:
Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.
If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V).
Can be powered by a 9V 6LR61 battery (not included), when the battery power is under 6V, please replace a new one.
How to use instructions:
Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement.
Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected.
There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature.
Calibration:
Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm.Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish.
Package weight:0.25 kg Package Size(L x W x H):17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches.
Package Contents:
1 x Digital Transistor Tester.
1 x User Manual.
1 x Color box.
1 x Protective bag.
1 x ESR test clip (optional).
