LIBODD Digital Multimeter 9999 Analog Tester True RMS Professional Multimetro DIY Transistor Capacitor NCV Testers LCR Meter(Q1 Red Pro)

Description

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• On screen display: provides clear and readable measurement results. Users can intuitively view measurement parameters, units and test conditions.

Specifications:
Display (LCD)
9999 Counts
Ranging
Auto/Manual
Material
ABS+TPE
Update Rate
3 Times/Second
Ture RMS
YES
Data Hold
YES
Relative Value Measurement
YES
Low Battery Indication
YES
Backlight
YES
Auto Power Off
YES
Operating
Tenperature
0~40C
Hunidity
75%
Storage
Tenperature
-20~60C
Hunidity
80%
Funtion
Range
Accuracy
DC voltage (V)
999.9mV/9.999V/99.99V/999.9V
(0.5%+3)
DC voltage (mV)
9.999mV /99.99mV
(0.5%+3)
AC voltage (V)
999.9mV/9.999V/99.99V/750.0V
(1.0%+3)
AC voltage (mV)
9.999mV /99.99mV
(1.0%+3)
DC Current (mA&A
9999mA9999A
103
DC Current uA
9999uA
083
AC Current (mA&A
9999mA9999A
103
AC CurrentuA
9999uA
103
Resistance
99.99
(1.0%+3)
Resistance
999.9 /9.999k /99.99k /999.9k /
(0.5%+3)
Resistance
9.999M
(1.5%+3)
Resistance
99.99M
(3.0%+5)
Capacitor
9.999nF
(5.0%+20)
Capacitor
99.99nF /999.9nF /9.999F /99.99F /999.9F
(2.0%+5)
Capacitor
9.999mF
(5.0%+5)
Frequency
99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz
(0.1%+2)
Duty cycle
1%~99%
(0.1%+2)
Diode :YES
Continuity :YES
NCV :YES
Temperature
(-20~1000) /(-4~1832)
(2.5%+5)
Power
2 * 1.5V AA batteries
(Not Included)
Sample Rate
3 times per second

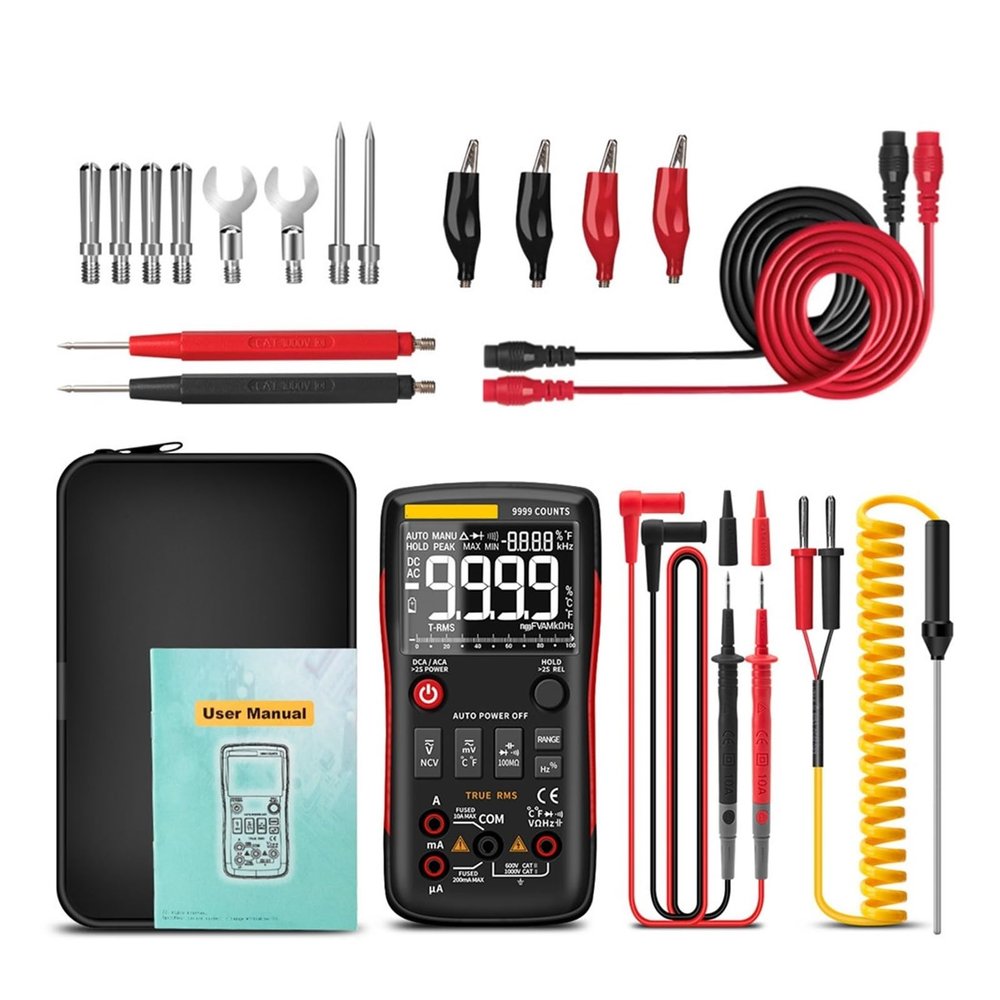

Packaging content:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag
1 x 16pc Test probe
Note:
1. Do NOT exceed the maximum value indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4.
