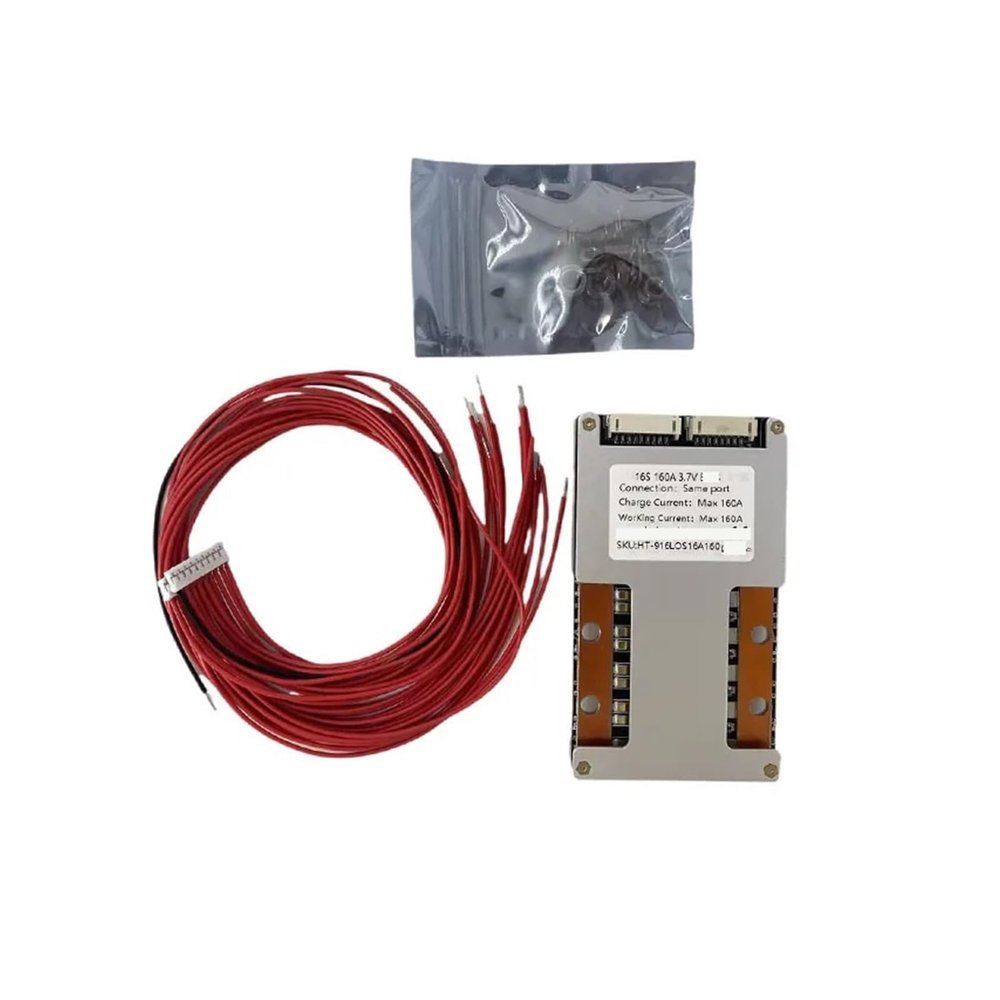

LDHJBNAC 16S 60V 160A lifepo4/Lipo Hardware Balance for Inverter(16S 160A 3.7V Same)

Description

• Multi -Function Protection:Has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Downtime protectionVoltage balance, etc
• Preparation Before Installation:Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance;Otherwise the battery pack will not be able to charge
• Enhanced Safety Features: Safeguard your battery with protection against overcharging, overdischarging, overcurrent, short circuits, and temperature fluctuations
• Wide Application:Ideal for RV, Solar Panel, and UPS Power Supply and so on, it offers seamless integration and top performance
• After-Sales Support: If you have any questions or concerns, please contact us through your order page

16S 160A 3.7V Same Port
Size:115*66*12mm
Overcharge protection: 4.25v0.25v
Charging recovery: 4.2V0.25v
Over-discharge protection: 2.8v0.25v
Discharge recovery: 3.0v0.25v
Maximum continuous current: 160A
Peak Current: 480A
Balance current: 100 mA
Balanced starting voltage: 4.22v0.25v
Charging recovery
Self-consumption: 35uA
16S 160A 3.2V Same Port
Size: 1156618
Overcharge protection voltage: 3.65V
Charge protection release voltage:3.55V
Over-discharge protection voltage: 2.35V
Discharge release voltage :2.55V
Balance start Volatge:3.4V

Maximal continuous current: 160A
Peak current :480A
Balanced current:100Ma
==========

Charging Current : 150A
