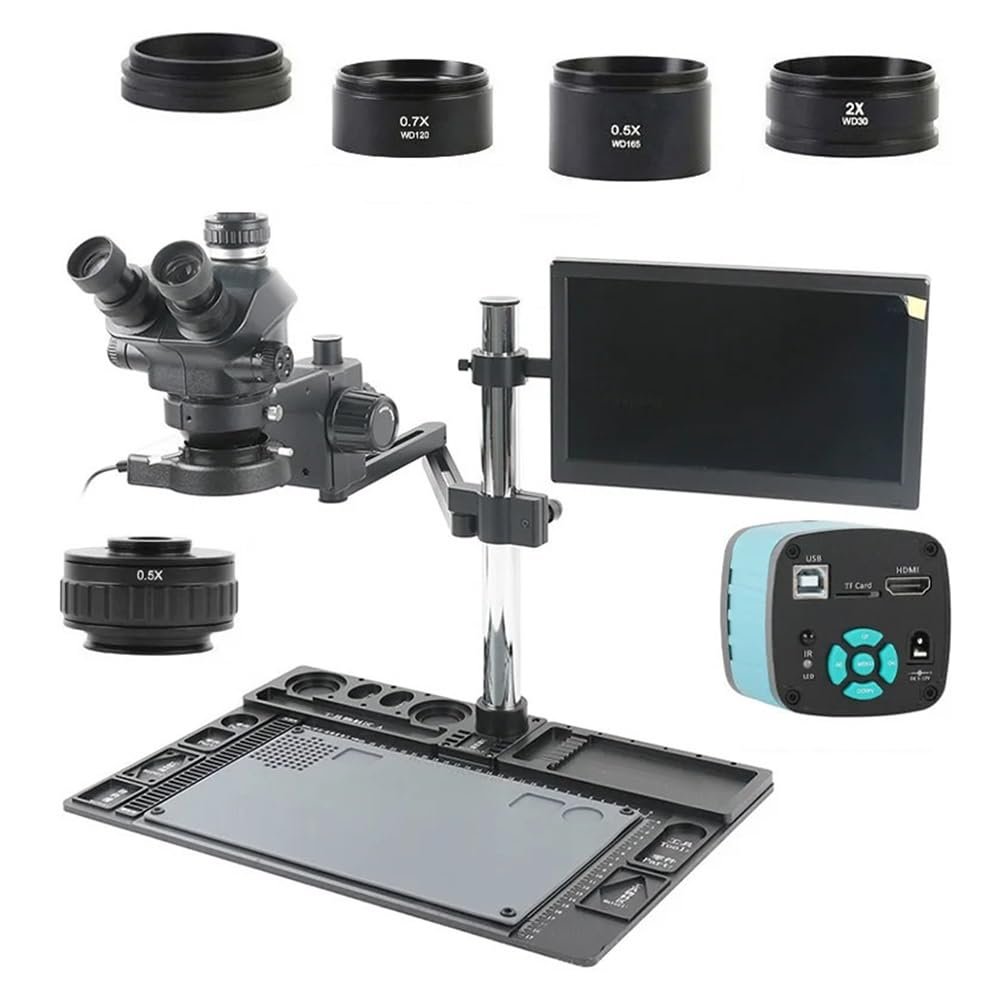

Lab Microscope Accessories 48MP 2K 4K HDMI USB Video Camera 7X 100X Lab Stereo Trinocular Microscope Aluminum Plate Bracket for Phone Soldering PCB Repair(48MP 2K 4K HDMI USB)

Description

• 48MP 2K 4K HDMI USB Video Camera 7X 100X Lab Stereo Trinocular Microscope Aluminum Plate Bracket.
• Suitable for: IC BGA CPU Chip Watch Jewelry Lab Industrial Trinocular Microscope; Various specifications are available, please refer to the pictures.
• Our microscope accessories are made of high-quality materials to ensure durability and stability for long-term use.
• We have a wide range of microscopes, microscope cameras, microscope slides, microscope eyepiece lens, accessories and other related products.

Microscope Head Feature:
Sharp stereo erect image over a wide field of view. Standard working distance is 110mm, to create enough space for the uses
45inclined and 360rotatable binocular head .The interpupillary distance is between 54-75mm. Observation head 45 inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use.
Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm,plan and high eye-point design, more suitable for search and observation
Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision.
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: WF10X/22MM
Zoom Rate position:0.7-5x
Magnification:7x-50x
Working Distance:110mm
Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses

48MP 2k 4K USB HDMI Feature:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

12MP 4K HDMI Type-c
Feature:
Sensor: 1/1.8
Effective pixels: 12 million
Resolution: 3840*2160@30FPS 1920*1080@60FPS
Output interf
