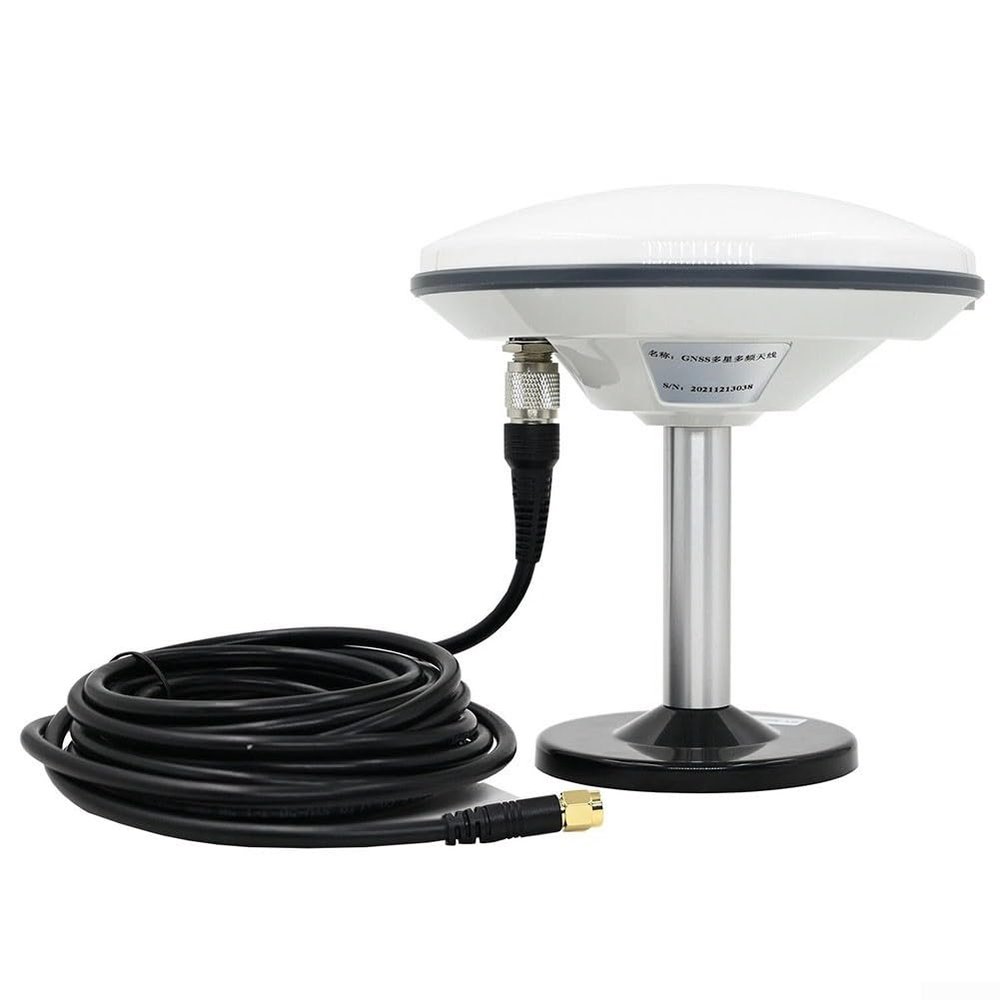

L1/L2 Bands GNSS Antenna With Base Fit For GLONASS For Beidou For Galileo For AG15/AG25/AG35 Gnss Survey Antennas, High Gain Mushroom Head, RHCP Polarization, Agricultural GPS Antenna(TNC-SMA)

Description

• [COMPREHENSIVE GNSS SUPPORT] This high-precision GNSS antenna supports GPS, GLONASS, BDS, and systems, ensuring accurate positioning across various applications such as automated agriculture, surveying, and geodesy.
• [ROBUST DESIGN] Constructed from ABS material with a waterproof design, this antenna is built to withstand harsh environmental conditions while extending its service life.
• [MINIMIZED MEASUREMENT ERRORS] The multi-feed point design aligns the phase center with the geometric center, significantly reducing measurement errors for precise data collection.
• [EFFICIENT SIGNAL RECEPTION] With a wide beam pattern and excellent signal reception even at low elevation angles, this antenna maintains performance in challenging conditions.
• [SIZING REMINDER] Please compatibility by checking your specifications before purchasing.

Features:
* A high-precision GNSS antenna that supports the four major global navigation satellite systems of GPS, GLONASS, BDS and for Galileo, and supports GPSL1, L2, GLONASS, G1, G2, Beidou B1, B2, B3 and for Galileo E1, E5b. The antenna has the characteristics of high gain, good gain at low elevation angles, large circular polarization angle, and stable phase center. It is suitable for high-precision mapping and is widely used in automated agriculture, geodesy, road construction, surveying, dock container operations and other occasions. The new GO100 adopts high-strength ABS shell and waterproof design, which can greatly extend the service life of the antenna.
* The antenna part adopts a multi-feed point design to for ensure that the phase center coincides with the geometric center, minimizing the measurement error of the antenna;
* The antenna unit has high gain, wide beam pattern, good signal reception at low elevation angles, and can still search for satellites normally under strong obstruction;
* High and low temperature resistance, waterproof and dustproof, and anti-obstruction design provide for protection for the antenna to work long-term in the field.

Specifications:
Part name: GNSS antenna
Material: engineering plastic + anti-Uv + metal
Interface: TNC-SMA, TNC-TNC, TNC-BNC (optional)
Color: as shown in the figure
Working frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 for GalileoE1/E5b
Polarization type: RHCP
Impedance: 50
Horizontal coverage angle: 360
Output standing wave ratio: 1.5
Antenna gain: 3dB
Phase center error: 2mm
Low noise specifications
For LNA gain: 402dB
Noise figure: 1.5dB
Output standing wave ratio: 1.5
Working voltage: +3V~+15V
Working current: 45mA
Antenna size (mm): 150mm63.7mm
Weight (g): 680g
Working environment
Working temperature (): -40 ~+70
Storage temperature (): -55 ~+85
Waterproof level: IPX67

Package contents:
1 x GNSS antenna
1 x magnetic base
1 x 5m signal cable
