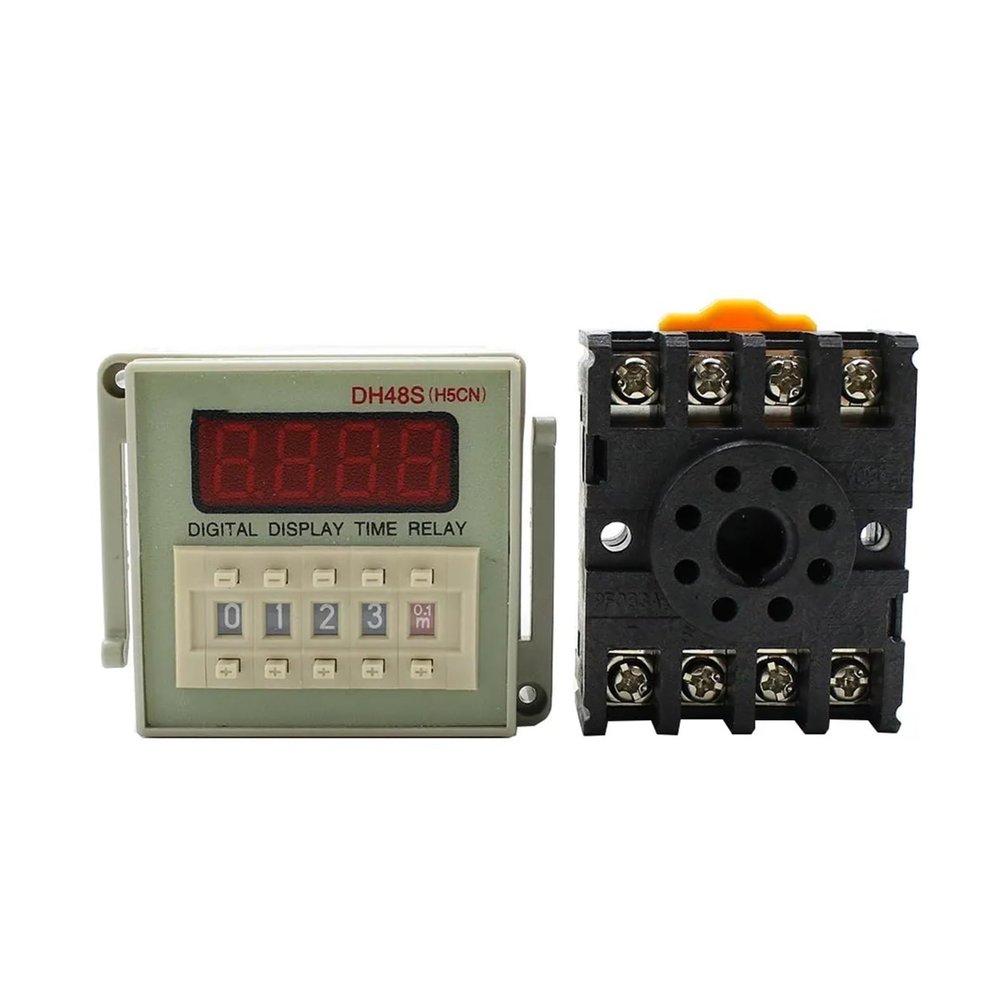

KKFAUS DH48S-1Z Digital LED Programmable Timer Time Relay Switch DH48S 0.01S-9999H DIN Rail AC110V 220V DC 12V 24V with Socket Base (Size : AC 110V)

Description

• DH48S/DH48S-S
• Operating power
• AC110V,220V,380V,50HZ, DC12V 24V
• Contact capacity
• AC220V 5A DC30V 5A (Resistance Load)

1.Specification
Model
DH48S/DH48S-S
Operating power
AC110V,220V,380V,50HZ, DC12V 24V
Contact capacity
AC220V 5A DC30V 5A (Resistance Load)
Contact form
DH48S-1Z:SPDT(1C)
DH48S-2Z : SPDT(2C)
DH48S-2ZH :SPDT(1C) SPDT(1C)
DH48S-2Z-A: SPDT(2C)
DH48S-2Z-G: SPDT(2C)
DH48S-S: SPDT(1C) SPDT(2C)
Operating pattern
DH48S :ON-delay DH48S-S: Repeat Circular delay,and circular working times could be choose from 1~15
Repeat error

Timing range
DH48S:0.01~99.99s 1s~99m99s 1m~99h99m
DH48S-S :0.1s~990h
Outline size
48*48*105mm
Mounting type
Panel mount
2.Connection Diagram
