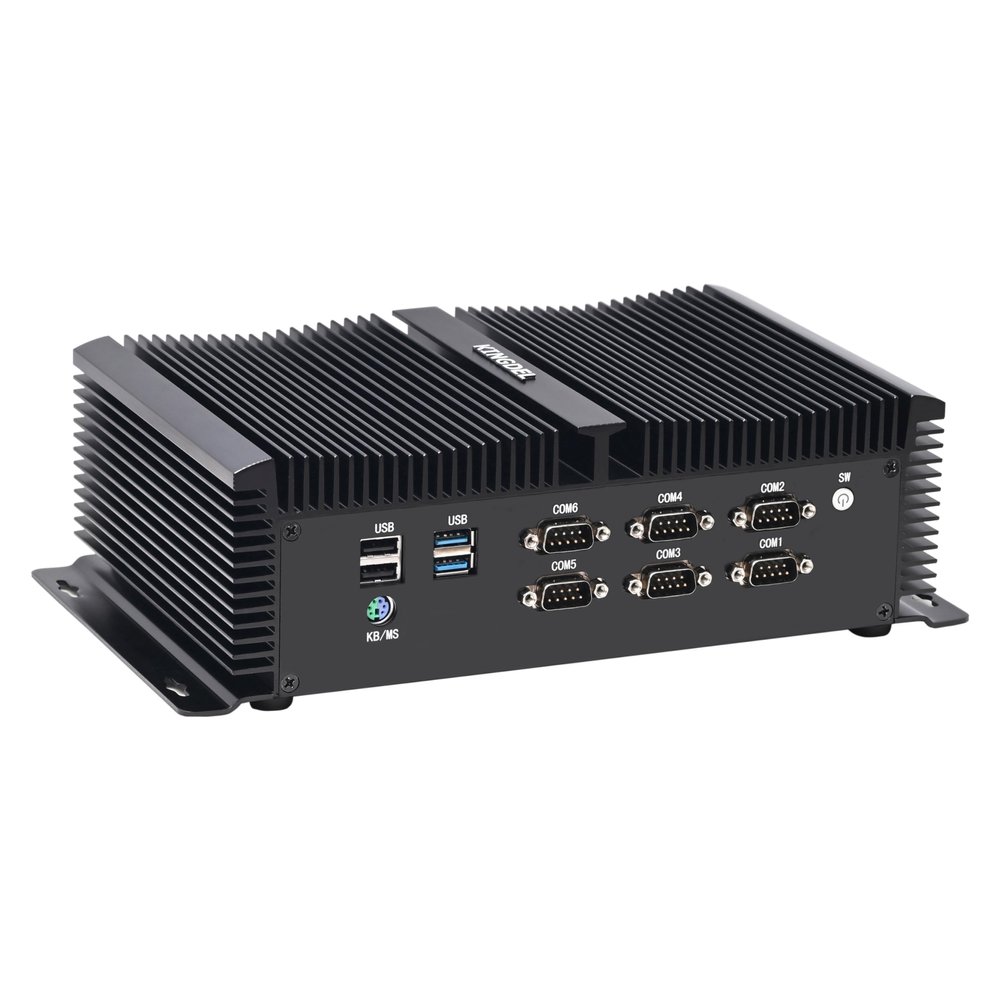

KINGDEL NC9000 Mini Desktop PC Core i5 10th Generation, 16GB DDR4 RAM 1TB NVMe SSD, UHD Graphics Max 3xHD 4K: 4096x2304@30Hz, 2xRJ45 Giga LAN 6xCOM RS232 1xGPIO WF+BT

Description

• 10th Gen Core PerformanceThe powerful Mini PC is equipped with 10th Gen Core i5-10200H/i5-10300H (4 cores, 8 threads, 2.4GHz base frequency, up to 4.1GHz turbo frequency, 8MB cache). It effortlessly handles heavy-duty industrial scenarios such as industrial control, data acquisition, and automation equipment.
• High-Speed Storage & ExpandabilityThis fanless Mini PC comes with 16GB DDR4 3200MHz RAM for smooth multitasking; a 1TB NVMe M.2 SSD ensures fast boot-up, software loading, and file transfer. A 2.5-inch SATA HDD slot is reserved (with cables included) for on-demand storage expansion to meet massive data needs.
• 4K Triple Display & Versatile Ports10th Gen UHD Graphics supports 4K@30Hz output (maximum resolution 4096x2304). 3 HD ports enable multi-screen collaboration. Equipped with 6xCOM, 4xUSB3.0+4xUSB2.0, 2xGigabit RJ45, 1xGPIO, and 1xKB/MS port, it is fully compatible with industrial peripherals (printers, scanners, sensors).
• Fanless Design & Full Metal CaseBoasting a fanless design and full-metal chassis, it features sturdiness and shock resistance. It effectively fends off dust, reduces noise to near-silent levels, and adapts to harsh environments with efficient heat dissipation.
• Wired and Wireless ConnectionsThe Industrial PC built-in WF, BT, and 2 high-gain antennas for stable wireless access, plus 2 Gigabit RJ45 ports for reliable wired networking. Package includes: 1xMini Industrial PC, 1xPower Adapter, 1xPower Cord, 2xAntennas, Screws, 1xHD Cable, 1 Set of 2.5'' SATA HDD Cables (HDD NOT INCLUDED).

SPECIFICATION
Processor: Core i5-10200H Processor
CPU Specifications: 4 Cores, 8 Threads, 2.40GHz Base Frequency, 4.10GHz Max Turbo Frequency, 8MB Smart Cache, 45W TDP.
GPU: UHD Graphics for 10th Gen. Processors, Max Resolution (HD)4096x2304@30Hz, 350MHz Graphics Base Frequency, 1.05GHz Graphics Max Dynamic Frequency.
Memory: 1xSODIMM DDR4 slot, Max 32GB
Storage: 1xmSATA3.0 port, 1xM.2 2280 NVME/SATA port, 1x2.5 inches HDD
Network: 1)Network Card: 2xi211+i219 10/100/1000 BaseT LAN. 2)4G Network Module: 1xSIM slot. 3)WLAN card: 1xMINI PCIE slot.
Sound Card: USB chipset, 6 channels
Cooling Mode: Air (Fanless)
Feature: Support Restore AC Power Loss, Power-on by alarm, Wake On Lan and PXE; COM1 and COM2 support RS232 RS422 RS485 soft handoff.
Weight: 2.5KG
Size: 255mmx55mmx80mm
Input: AC100-240V, 50-60Hz
Output: DC 12V
Operating Temperature: -10C~60C; Storage Temperature: -20C~80C; Relative Humidity: 10%~90% (non-condensing)
CONNECTORS
3xHD, 4xUSB3.0, 4xUSB2.0, 6xCOM, 2xRJ45 Giga LAN, 1xGPIO, 1xSPK/MIC, 1xKB/MS, 1xDC IN, 1xSW
CONTENTS
1xMini PC, 1xPower Adapter, 1xPower Cord, 2xAntennas, Screws, 1xHD Cable, 1xSet of Cables for 2.5'' SATA HDD (HDD NOT INCLUDED)
