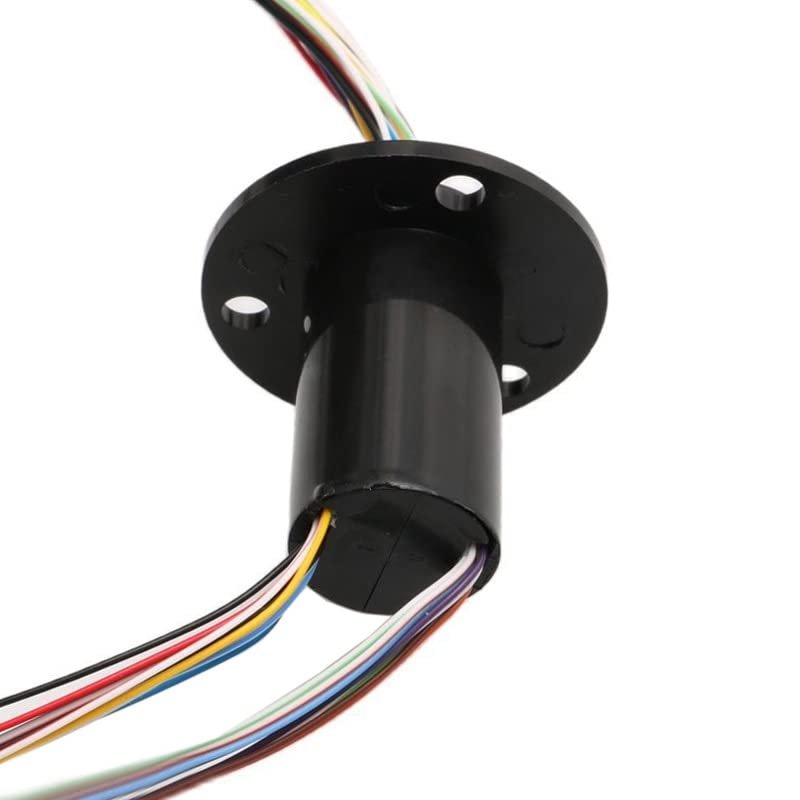

KEAAN 1PCS Mini Flange Slip Ring Dia.22mm 2A 2/4/6/8/12/18/24CH Channels Wires Conductive Ring Brush Slipring Rotating Electric Joint (Color : Dia 22mm 24CH 2A)

Description

• Rated voltage: 220VAC/DC
• - Rated current: 2A/channel
• - Operating temperature: -20 ~ +60

Specifications:
- Diameter: 22mm
- Speed: up to 200rpm
- Channel number: 2/4/6/8/12/18/24 Channels for option
- Rated voltage: 220VAC/DC
- Rated current: 2A/channel
- Operating temperature: -20 ~ +60
- Contact material: Gold/Gold
- Wire length: standard 200mm
- Compressive strength: between the two channels500V 50Hz
- Insulation resistance: 1000M/500VDC
- Dynamic resistance fluctuation value: minimum 10m
- Shell material: Engineering plastics
- Working life: 5 million rpm(depending on the working environment and speed)
Features:
Low contact resistance
Low working noise
Smooth operation
Long life
Compact structure
360 degree unlimited rotation
Description:
Slip ring is an electromechanical component that can transmit energy and data signals from a fixed device to a rotating device. It is also called a conductive ring, brush, slip ring, rotating electric joint or electric rotating joint. It is a precision power transmission device that realizes the image, data signal and power transmission of two relative rotating mechanisms.
It is used in electromechanical systems that require unrestricted continuous rotation of current and data signals.
It can improve mechanical performance, simplify system design, and avoid possible damage caused by wire rotation.
The slip ring can be installed in the center of rotation of the equipment and consists of rotating (rotor) and stationary (stator).
Package included:
1pcs x slip ring (Number of Channels for option)
WeofferOEMforordersoflargequantity.Pleasefeelfreetocontactusformoreinfo
Slip Ring Overview
Slip ring is an electromechanical component that can transmit energy and data signals from a fixed device to a rotating device. It is also called a conductive ring, brush, slip ring, rotating electrical joint or electrical rotary switch. It is a precise familiarity device that realizes the image, data signal and power
