K9DP QRP AM Broadcast Interference BCI Ham Radio Filter Kit - for Xiegu X6200, X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios

Description

• Designed to help HF radios and receivers that struggle with front-end overload from AM broadcast interference, such as Xiegu X6100, X5105, G90, G106 and SDR receivers.
• Lightweight and portable design, only 3 inches (77mm) in length and weighing just 20 grams. Perfect for Parks on the Air (POTA), Summits on the Air (SOTA) and Field Day.
• Tested up to 20 watts with SSB, CW and digital modes such as FT8.
• Quick and easy to build.
• High quality C0G (NP0) capacitors and Micrometals toroids.

The K9DP QRP broadcast interference (BCI) filter kit allows QRP (low-power) amateur radio operators to reduce or eliminate unwanted broadcast interference in their signals. Primary designed to help HF radios and receivers that struggle with front-end overload from AM broadcast stations, such as some Xiegu X6100, X5105, G90, G106 and SDR receivers.

This lightweight and portable kit is ideal for use in field operations such as Parks on the Air (POTA), Summits on the Air (SOTA), and Field Day. It has been tested at power levels up to 20 watts with SSB, CW, and digital modes such as FT8, and its small size and low weight make it easy to take with you wherever you go. Measuring only 3 inches (77mm) in length and weighing just 20 grams, it's a convenient choice for on-the-go operations.

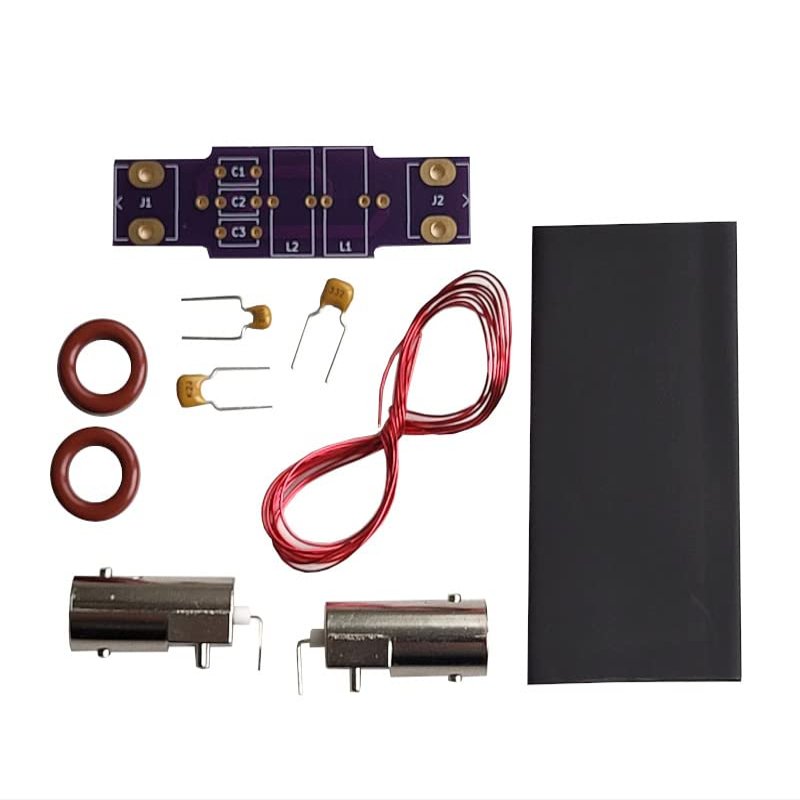

The kit includes all of the materials and components needed to build the filter, including BNC connectors, capacitors, enameled wire, toroids, and a printed circuit board. The high quality online instructions will guide you through the process of soldering the components onto the board and assembling the filter, step by step. Once the filter is built and tested, it can be easily attached inline with your radio equipment using the female BNC connectors.

Overall, this kit is a great way for radio operators to enhance their radios performance and improve their communication experience. These filters have a 50 impedance and are symmetrical, so it's not important which end is the input or output.

Caution: High SWR can damage the filter. The filter should be inserted inline between the transceiver and tuner, rather than between the tuner and antenna. If your radio has an internal tuner, be sure to use a resonant antenna or an antenna with a matching circuit, such as an EFHW (end fed half wave), in combination with the filter.
