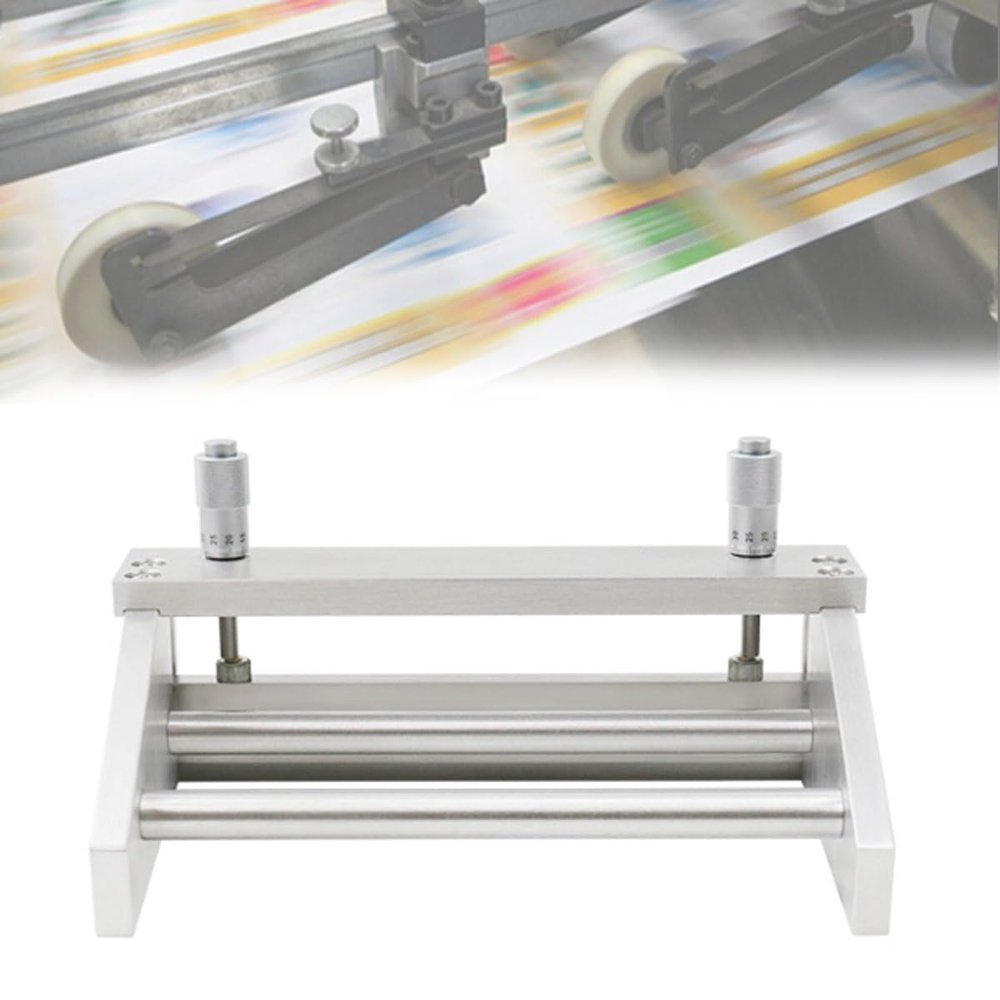

JOSBY 0-3500m Adjustable Film Applicator, Magnetic Attraction Spring Coater, Wet Film Preparation Device Steel Preparation, Micrometer Wet Film Preparation Device, for Glass Plate, Plastic Plate

Description

• Adjustable ThicknessThe coating film thickness range is 0-3500m. By adjusting the two micrometers above the preparation device, the spring drives the scraper to move up and down to control the gap size, that is, the required coating film thickness.
• High Precision MicrometerThe adjustable film applicator adopts high-precision micrometer to adjust the gap of scraper in units of 10 m, with high precision and small in error.
• Excellent MaterialThe whole frame of the adjustable film applicator is made of aluminum alloy,with strong structure. The scraper is made of high-quality stainless steel, which is wear-resistant, rustproof, easy to disassemble and easy to clean.
• ApplicationThis is an excellent tool to make the quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost. For printing, paint, paint, cosmetics, drugs, adhesives, batteries and other scientific research industries.
• Main Parameters Manufacturing Material: Aluminum Alloy.Scratch Effective Width: 55/100/150/200/300mm. Film thickness range: 0 ~ 3500m.;Accuracy: 10 micron.

Instructions:
1.Before use, the instrument is generally adjusted to the "0" position. If not,the instrument should be adjusted to "0" on a parallel surface.
2.When adjusting "0", rotate the two micrometers so that the bottom of the scraper and the two side plates are on the same plane.At this time, the reading of the micrometer should be the same, and the "0" scale of the micrometer should be aligned with the scale line at the lower end.
3.Rotate the micrometer to adjust the scraper to the required gap size, that is, the required coating thickness.Then hold both sides of the board with your hands and scrape on the sample board to prepare the required coating.

Specification
Materials: Aluminumor Stainless steel
Coating Thickness: 0-3500m
Effective Coating Width: 55/100/150/200/300mm
Precision: 10m

Package Included
1x Adjustable Magnetic Suction Model Film Applicator
