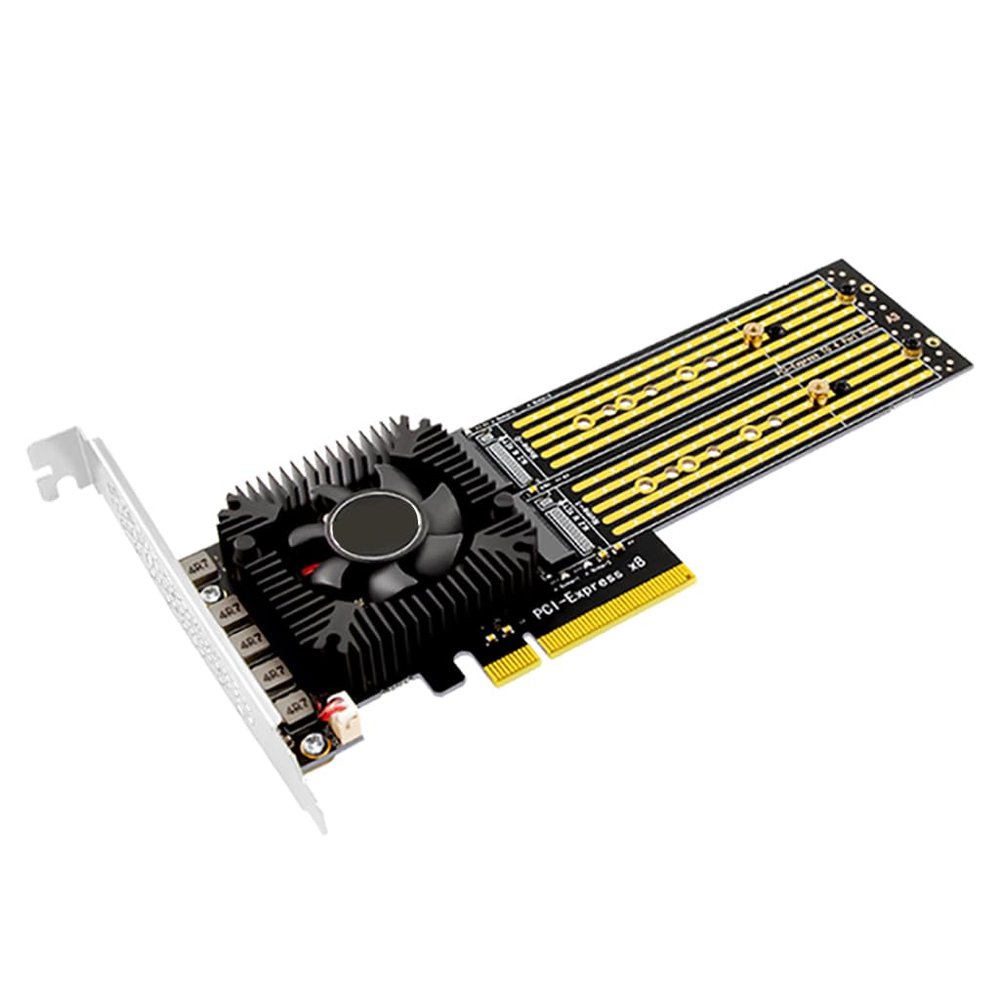

JMT 4-Port Array NVMe Expansion Card M.2 Solid State Drive to PCI-E 3.0 X4/X8 Adapter 4Bay Split Free Support for NVMe Hard Disk 2230 / 2242 / 2260 / 2280 / 22110 (16GT)

Description

• No Splitting, Plug and Play: As Media advanced master control, Do not require drivers, Do not need for motherboard support for splitting, easy to achieve one slot with four disks.
• Dual Heat Dissipation: Air cooled heat dissipation , lower temperature , and more stable operation.
• Double sided multi-copper hole heat dissipation structure accelerates air flow and reduces hard drive temperature.. 2U chassis: Supported (includes stand).
• Supported System: Compatible with Windows/Linux/MacOS. Bus Speed: 10/16/20/32/64GT/S Optional.
• Five Speed Hard Drive Specifications: Supports NVMe protocol hard drives with specifications 2230 / 2242 / 2260 / 2280 / 22110.
• Warm Tips: 10GT/16GT/20GT/32GT support X4/X8/X16, 64GT only support X8/X16

JMT 4-Port Array NVMe Expansion Card M.2 Solid State Drive to PCI-E 3.0 X4/X8 Adapter 4Bay Split Free Support for NVMe Hard Disk 2230 / 2242 / 2260 / 2280 / 22110

Product Parameter
Model: 10GT
Bus speed: 10GT/S
Bus specification: PCI-E 2.0x2
Interface specification: Nv me 2.0x1
Interface speed: approximately 400MB/S
Installation conditions: PCI-E X4

Model:16GT
Bus speed: 16GT/S
Bus specification: PCI-E 3.0x2
Interface specification: Nv me 3.0x1
Interface speed: approximately 830MB/S
Installation conditions: PCI-E X4

Model: 20GT
Bus speed: 20GT/S
Bus specification: PCI-E 2.0x4
Interface specification: Nv me 2.0x4
Interface speed: approximately 1600~1800MB/S
Installation conditions: PCI-E X4

Model: 32GT
Bus speed: 32GT/S
Bus specification: PCI-E 3.0x4
Interface specification: Nv me 3.0x2
Interface speed: approximately 1600~1800MB/S
Installation conditions: PCI-E X4

Model: 64GT
Bus speed: 64GT/S
Bus specification: PCI-E 3.0x 8
Interface specification: Nv me 3.0x 4
Interface speed: approximately 3200-3500MB/S
Installation conditions: PCI-EX 8 (compatible with X16)

NVMe Expansion Card Features:
No splitting, Plug and play adopts
AS Media advanced master control, no need for motherboard support for splitting, easy to achieve one slot with four disks

Dual heat dissipation
Air cooled heat dissipation , lower temperature , and more stable operation.
Double sided multi-copper hole heat dissipation structure accelerates air flow and reduces hard drive temperature.
