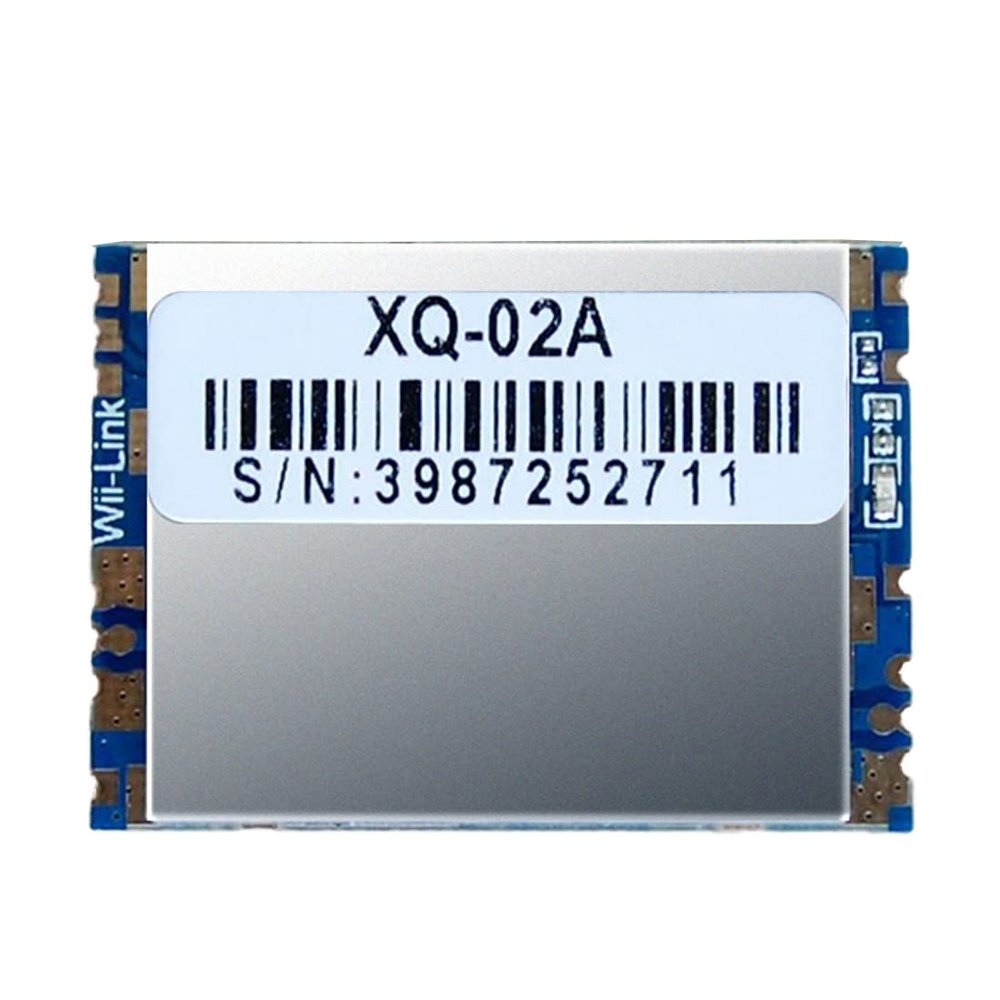

JMT 2.4G WiFi Signal Amplifer Boost XQ-02A Bi-Directional Auto Switch 2W Dual Way Bidirectional Module

Description

• * Applicable Fileds * --"XQ-02A" bi-directional signal amplification module is designed for various applications in 2-4GHz band for WiFi signal transmission distance and connection stability, such as: advertising machines, wireless network players, high-power wireless routers, high-power wireless network cards, high-power outdoor AP, wireless cameras, etc.
• * Support Auto Switch * --Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.
• * Module Specifications * --Receiving gain: 10dB.?Transmit gain: 11dB. Receiving noise factor: 3.0dB. Input power range: 4dBm - 20dBm. Max transmit power (Peak Power): 33dBm (2W). Dimension: 36*26*4.8mm (L*W*H).
• * Convenient Design * --Its compact size and foolproof application makes the design of RF part of 2-4GHz wireless products extremely simple, which greatly shortens product development cycle and reduces product development cost!
• * Warm Tips * --The module needs to be soldered to your product, please take it into account before order.

JMT 2-4G Wifi Signal Amplifer Boost XQ-02A Bi-directional Auto Switch 2W Dual Way Bidirectional Module

Note: The module needs to be soldered to your product, non-quality issues do not support returns.

"XQ-02A" bi-directional signal amplification module is designed for various applications in 2-4GHz band, its compact size and foolproof application makes the design of RF part of 2-4GHz wireless products extremely simple, which greatly shortens product development cycle and reduces product development cost!

Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.

Can be applied to all kinds of special requirements for WiFi signal transmission distance and connection stability, such as: advertising machines, wireless network players, high-power wireless routers, high-power wireless network cards, high-power outdoor AP, wireless cameras, etc..

Module Specifications

Receiving gain: 10dB.

Transmit gain: 11dB.

Receiving noise factor: 3.0dB.

Input power range: 4dBm - 20dBm.

Maximum transmit power (Peak Power): 33dBm (2W).

Dimension: 36mm*26mm*4.8mm (L*W*H).

Weight: <5g
