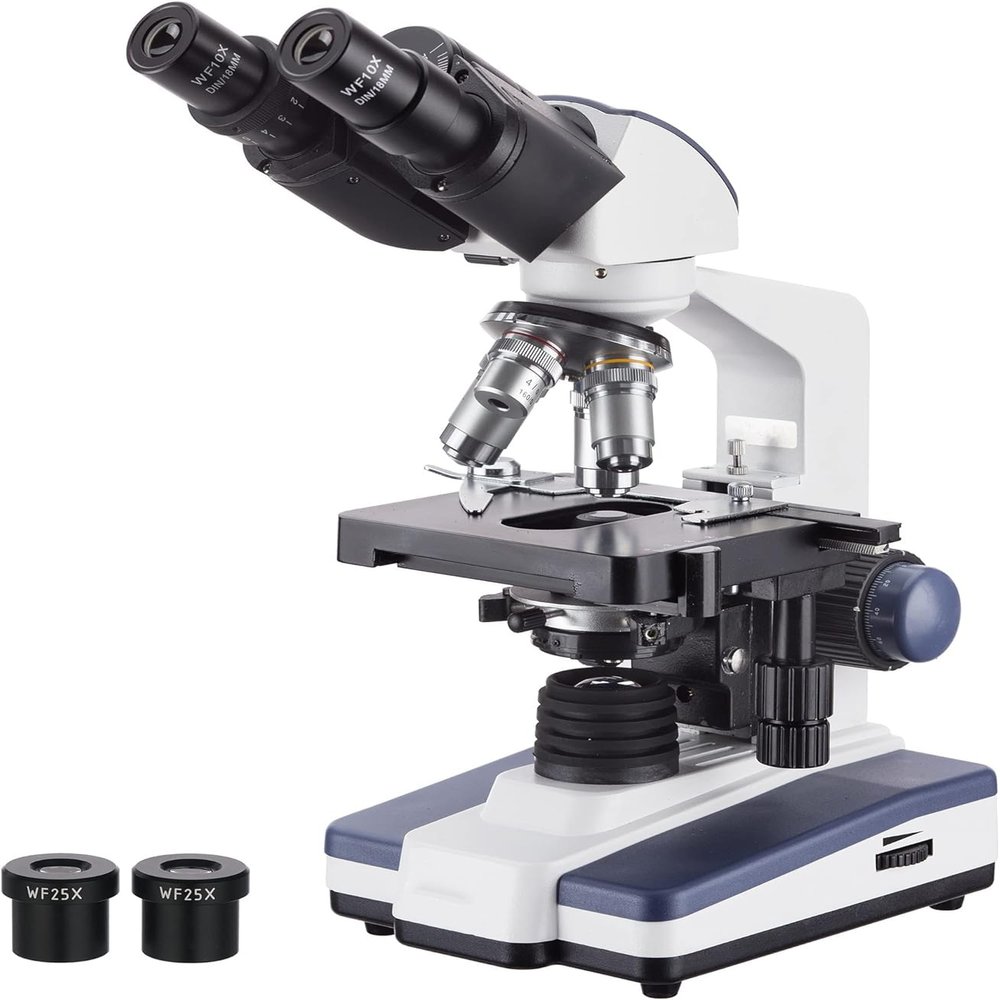

JKSVTF 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage

Description

• Easy to attach a microscope camera or digital imager.
• Variable intensity illumination.
• Adjustable interpupillary distance.
• Adjustable ocular diopter.
• Coaxial coarse and fine focus adjustment.

Easy to attach a microscope camera or digital imager.
Adjustable interpupillary distance.
Adjustable ocular diopter.
Variable intensity illumination.
Coaxial coarse and fine focus adjustment.

Focusing knobs are on both sides
Stage upward moving lock protects objectives and slides
Stain-resistant double layer mechanical stage
Rack and pinion adjustment condenser
Specifications :
Eyepieces: widefield, WF10X and WF25X
Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Head: 30 degree inclined 360 degree swiveling binocular
Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
Adjustable ocular diopter
Nosepiece: revolving quadruple
Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 70mm x 21mm
Condenser: NA1.25 Abbe condenser with iris diaphragm
Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
Focusing: coaxial coarse & fine knobs on both sides
Power Supply: 100AC, 50/60Hz, AC/DC adapter (UL approved) Included
Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Packing List :
One Binocular Microscope Head
One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
Four DIN Standard Objectives, 4X, 10X, 40X and 100X
One Pair of Widefield 10X Eyepieces
One Pair of Widefield 25X Eyepieces
One Blue Color Filter
One Dust Cover
User's Manual Download
