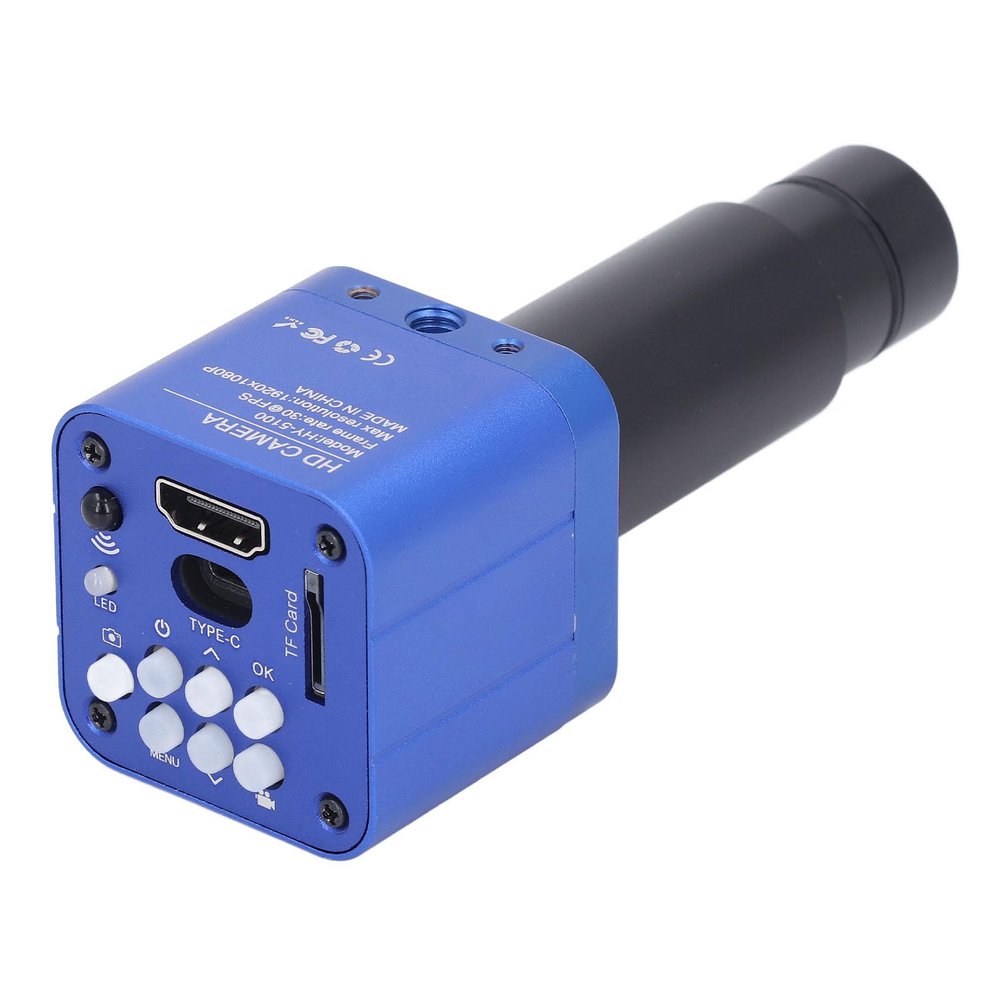

Industrial Microscope Camera, Electronic Eyepiece with 0.5X Adapter, Built in 24MP HD Camera Image Sensor, for Industrial Vision, Visual Inspection (US Plug)

Description

• Support System: The measurement software supports for XP/7/8/10 system. When connecting the electronic microscope to a computer, simply plug in the USB cable, which is secure and convenient to use
• USB Output: Can adjust software operations such as white balance, exposure, and color, supports photography and video recording, measurement, computer hard drive data storage, gridlines, etc. (please ensure that there is no memory card in the camera)
• Microscope Camera: Built in 24MP high definition camera image sensor, 1080P video recording, making observation easy and interesting. Made of aluminum alloy material, with high strength and long service life
• 0.5X Adapter: Suitable for use with any pixels C Mount or CS Mount camera and placed in binocular or trinocular microscopes to expand the field of view; Equipped with 2 lens adapters, suitable for 23.2mm, 30mm, 30.5mm diameter eyepieces
• Functions: Add layers, watermarks, mosaics, tiles; Adjust color balance, exposure, saturation, contrast, and orientation; Change resolution, histogram, granulation, and diffusion; Transforming images through border detection and digital image distortion; Line measurement; Custom Text; Multi unit measurement

Spec:
Item Type: Microscope Camera
Remote Controller Battery: 1 x CR2025 150mAh Battery (Built In)
Model: HY-5100
Sensor: For IMX CMOS 1/2.9 Sensor
Video Output: 1080P (HD Output), 1080P at 30fps (USB Output)
Effective Pixels: 24MP/16MP
Pixels Size: 2.85 x 2.85m
Measurement Software: Support for Win XP/7/8/10 system, PC software with measurement function
Digital Zoom: 7X Digital Zoom
HD Port Support Ratio: 4:3, 16:9, 16:10 Screen
USB Interface: Type C USB (Connect to Computer)
USB 2.0 Output Resolution: 1920x1080P 30FPS, 1280x720P 30FPS, 640x480P 30FPS
Small Memory Card: Up to 128GB (not included)
Exposure Compensation: Support
Power off Memory: Support
Crossed Cursor: Support
White Balance: Support EV Value, Auto and Manual White Balance
Spectral Response (Wavelength): 400-1000nm
Lens Type: Support C/CS Mount
Output Video Format: MP4
Language Setting: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Charging Port: Type C
Observation Filter: Color, Black and White, Reverse Color
0.5X Adapter:
Magnification: 0.5X
Installation Size: 23.2mm, 30mm, 30.5mm

How to Use:
Take out the product, install and use.

packing list:
1 x Microscope Camera
1 x HD Cable
1 x USB Cable
1 x Remote Controller
1 x Supply Adapter
1 x Microscope Camera Software Manual
1 x 0.5X Adapter
2 x Lens Adapters
