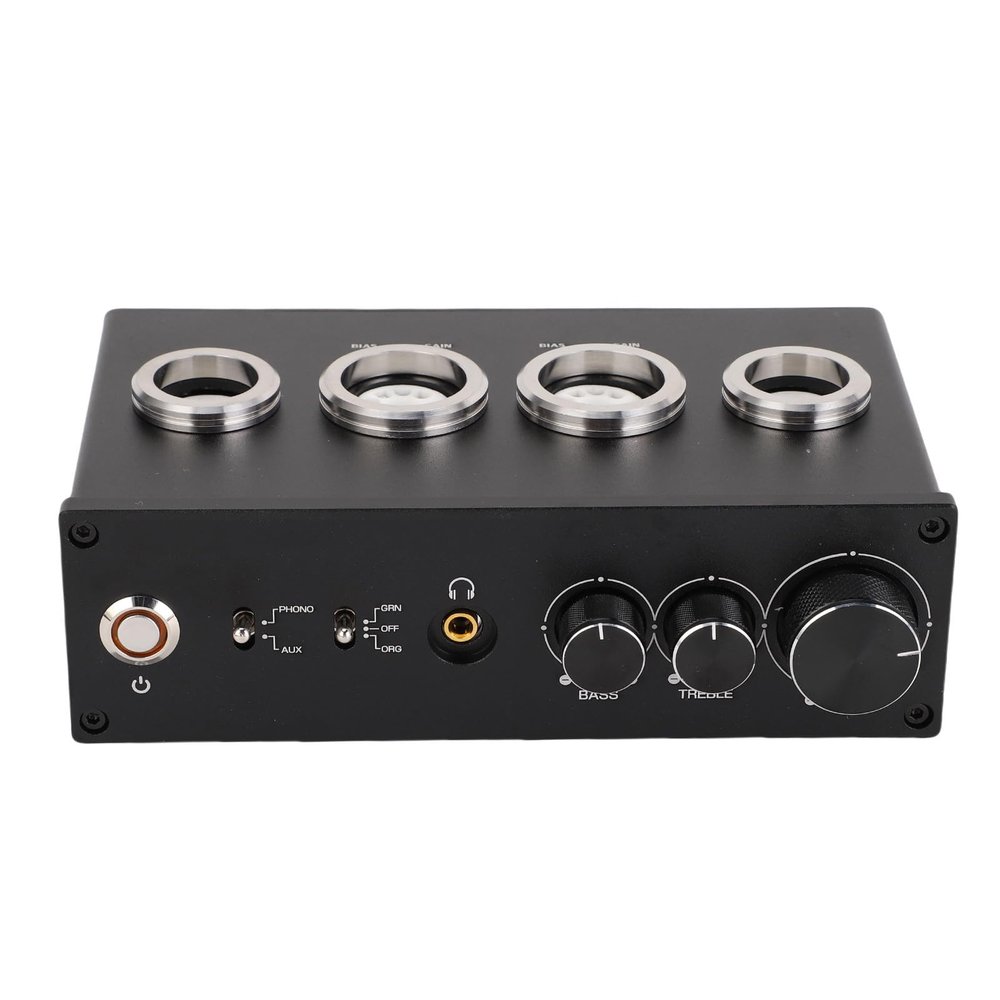

Hilitand Tube Preamplifier with Phono AV Input for Immersive Audio Visual Experience (US Plug)

Description

• [MM MC COMPATIBILITY] Supports stereo AV and phono input with MM and MC cartridge use. Phono input handles 0.005V RMS MM and 0.0005V RMS MC signals for flexible playback at home.
• [LOW NOISE PERFORMANCE] Delivers clean sound with phono signal to noise ratio of 80dB or higher and AV signal to noise ratio of 106dB or higher helping reduce hiss for clearer music enjoyment.
• [RIAA AND CONTROL] Phono stage follows Reference RIAA plus or minus 2dB and includes treble and bass adjustment of plus or minus 10dB so you can shape a fuller more balanced listening experience.
• [TUBE ROLLING DESIGN] Includes 2 x 6E2 and 2 x 6A2 tubes with pluggable sockets. 6A2 tubes can be replaced with 6K4 EF93 6BA6 or W727 tubes to explore different tube sound styles easily.
• [PREMIUM BUILD OUTPUTS] Built with CNC aluminum alloy panel knurled knob and gold plated IO interface. Offers stereo AV output and 3.5mm earphone jack and works with amplifier or active speakers.

Spec:
Item Type: Electronic Tube Phono Preamp
Material: Aluminum Alloy
Model: T9
Audio Input: Stereo AV, phono MM (MC)
Audio Output: Stereo AV, 3.5mm earphone jack
Earphone Impedance Range: 16-300
Earphone Output Power:
250mW at 32
100mW at 64
60mW at 128
AV Input:
Input Level: 0.775V RMS
Output Level: 1.5V RMS
Input Impedance: 100K ohm
Signal to Noise Ratio: 106dB
Frequency Response: 20Hz-20KHz (0.5dB)
Phono Input:
Input Level: 0.005V RMS (MM), 0.0005V RMS (MC)
Output Level: 0.6V RMS
Input Impedance: 47K ohm (MM), 330 ohm (MC)
Signal to Noise Ratio: 80dB
Frequency Response: Reference RIAA 2dB
Total Harmonic Distortion: 0.1%
Electronic Tube: 2 x 6E2; 2 x 6A2
Treble Bass: 10dB
Backlit Color Adjustable: Green, Orange, off
Size (WxDxH): Approx. 154x87x47mm / 6.06x3.43x1.85in

Package List:
1 x Electronic Tube Phono Preamp
2 x 6E2 Electronic Tubes
2 X 6A2 Electronic Tubes
1 x Connection Cable
1 x
1 x Supply Adapter
1 x Instruction Manual

How To Use:
Use according to the instruction manual.

Note:
1. The bias and gain of the two 6E2 electronic tubes have been set before leaving the factory. Please pay attention to the left and right channel markings on the electronic tubes during installation and do not plug them in the wrong direction.
2. The 3.5mm earphone jack is preferred. If AV output is required, please ensure that the earphone jack is disconnected.
3. Pluggable electronic tube socket design, 6A2 can be easily replaced with 6K4, EF93, 6BA6, W727 and other electronic tubes, enjoying different styles of electronic tube sound.
4. T9 is a preamplifier rather than a power amplifier and needs to be used in conjunction with an amplifier or active speaker.
