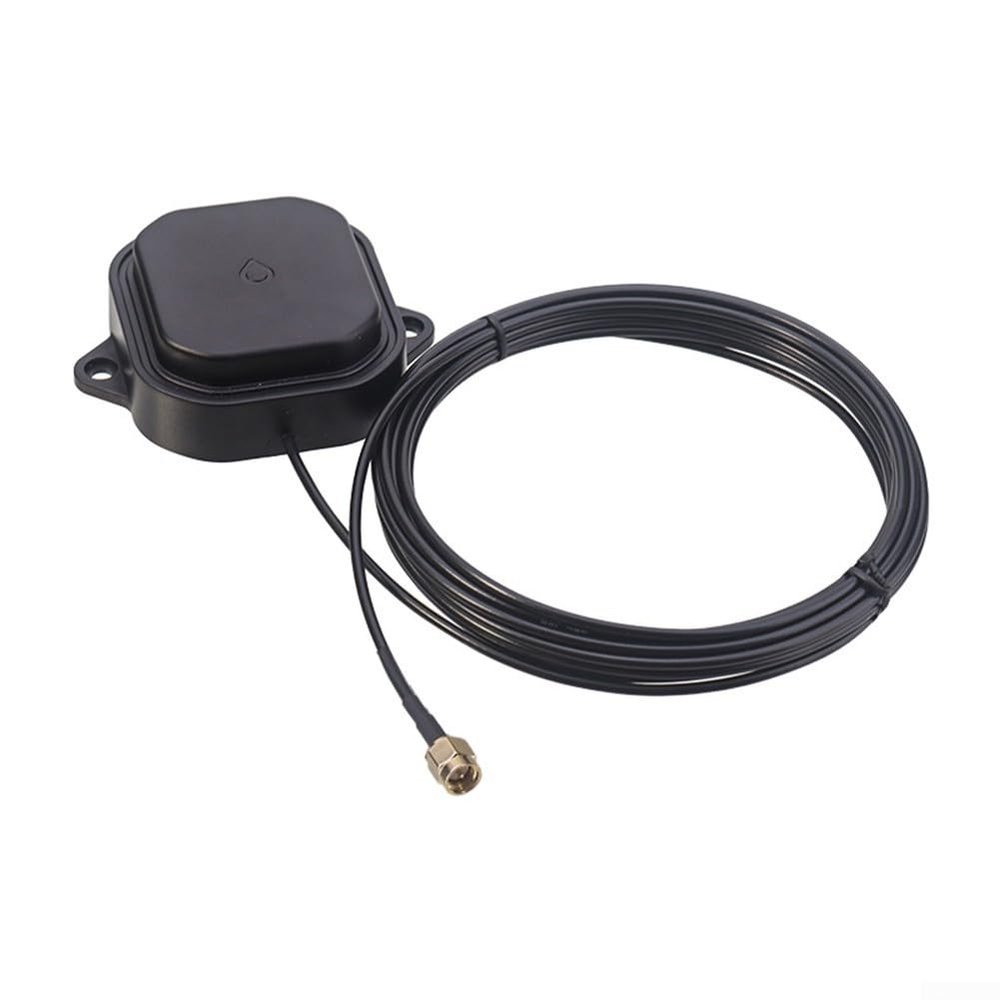

High GNSS Vehicle Antenna for for Multistar Systems, UV Material, Excellent Signal Gain(5 Meter)

Description

• [FULL-SPECTRUM ANTENNA] This vehicle-mounted GNSS antenna supports four systems and multiple frequencies, ensuring reliable connectivity wherever you go.
• [WEATHER-RESISTANT] The engineering plastic and UV material shell provide excellent protection against the elements, making it suitable for outdoor use.
• [LIGHTWEIGHT DESIGN] Measuring just 5 x 66 x 28mm, this compact antenna is in various vehicle types without compromising space.
• [CHECK YOUR CONNECTION] Verify compatibility with your vehicle's specifications prior to purchase.

Features:
*
* Engineering plastic + UV material shell, anti-ultraviolet
* Four-system full-frequency
GPS: L1/L2/L5 GLONASS: L1/L2/L3
BDS: B1/B2/B3 alileo: E1/E5/E6
L-band
* Adopt LMR100 line, double shielding, low loss
* For small size, light weight, high positioning accuracy

Specifications:
*Part Name: Vehicle Antenna
*Material: Engineering plastic + UV material shell
*Size: 72.5*66*28mm
*Color: black
*Frequency range: GPS L1/L2/L5BDS B1/B2/B3GLONASS L1/L2GALILEO E1/E2/E5a/E5b
*Gain: 382dBi
*Polarization: Right-hand circular polarization (RHCP)
*Antenna axial ratio: 3.0dB (elevation angle 90)
*Voltage standing wave ratio: 1.5
*Characteristic impedance: 500
*Horizontal coverage angle: 360
*Working voltage: 3.0-12.0V
*Working temperature: -40~85C
*Waterproof grade: IP67
*Connector type: for SMA-J internal pin internal thread
*Weight: <125g
*Wire length: 3 M5MOptional

Package Content:
1 x Vehicle Antenna
