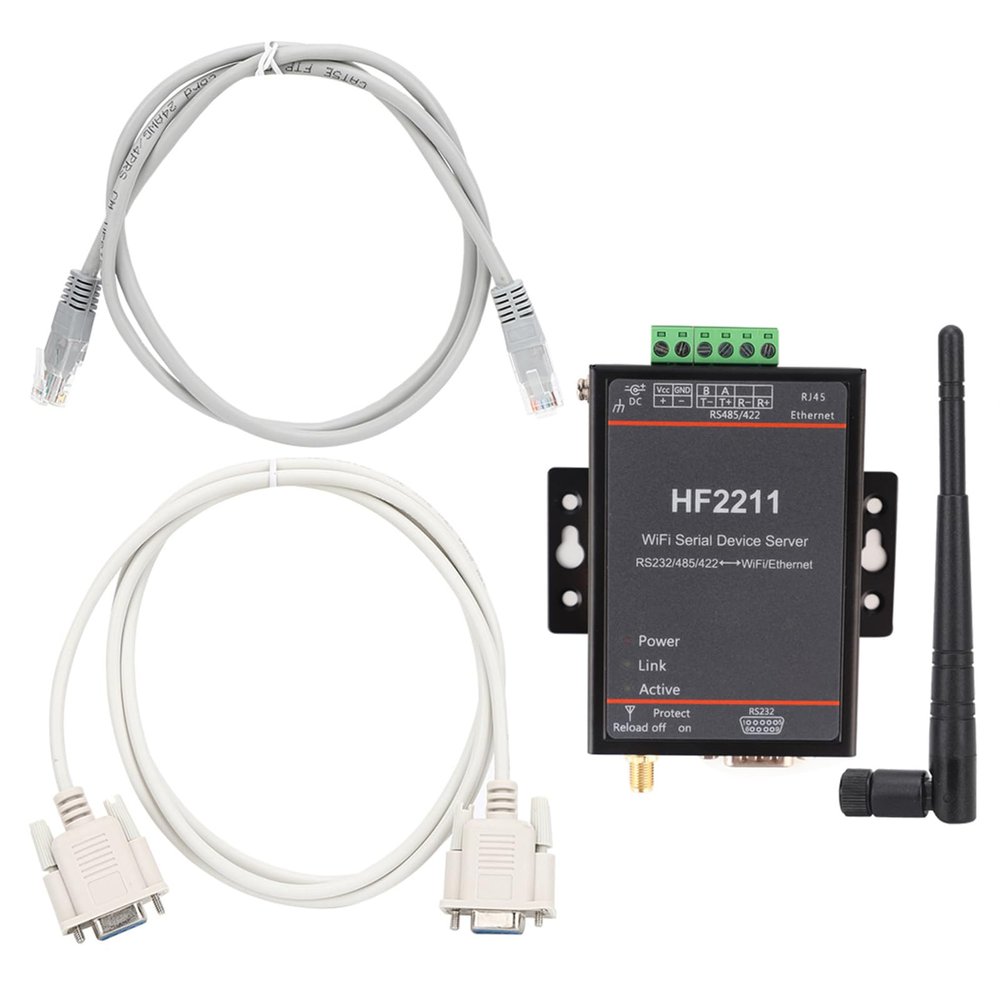

Brilluxa Serial Device Server, RS232 RS485 RS422 to Ethernet Wireless DTU Module, Serial to Ethernet Converter Gateway, 5-36V DC Data Communication Adapter for Networking

Description

• Using MIPS MCU (8MB for SRAM) and 4MB Flash, based on eCos operating system.
• Passed FCC_CE_RoHS_SRRC_REACH certification.
• Support RS2 / RS422 / RS485 to Wi-Fi / Ethernet data transmission, the maximum serial port speed is 230400 bps.
• Support for TCP / for IP / for Telnet / for Modbus TCP protocol.
• Support Wire less working STA / AP / AP + STA.

Item Type: HF-2211 Serial Port Server
Model: HF-2211
Input Voltage: Wide voltage 5 36VDC
Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85
Interface Form: 5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: Supported Features:
Supported for Http protocol transmission mode
Supported for Modbus conversion
Supported for NTP function + time zone setting
Supported for Virtual data channel
Supported for Registration package function
Supported for Heartbeat packet function
Supported for Custom script function
Supported for Packet filtering
Supported for Serial framing
Supported for Wire less routing mode
Supported for Wire less bridge mode
Supported for Wire less roaming function
Supported for Wire less switch
Supported for Hide SSID
Supported for Chinese SSID
Parameter import and export
Supported for ModbusRTU to for ModbusTCP
Unsupported Features:
Unsupported for Local data storage
Unsupported for ModbusMaster
Unsupported for VPN function
Unsupported for APN function
Unsupported for DDNS function
Unsupported for WiFiSAP
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
RAM: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port Protection: Static: 8KV contact discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
Serial Interface Parameters:
Number Of Serial Ports: 1 (RS2 / 485/422)
Interface Standard: RS2: DB9 pin type
RS485 / RS422: 5.08mm terminal block
Baud Rate: 600-230400bps
Data Bits: 8
Stop Bits: 1, 2
Parity: None,
