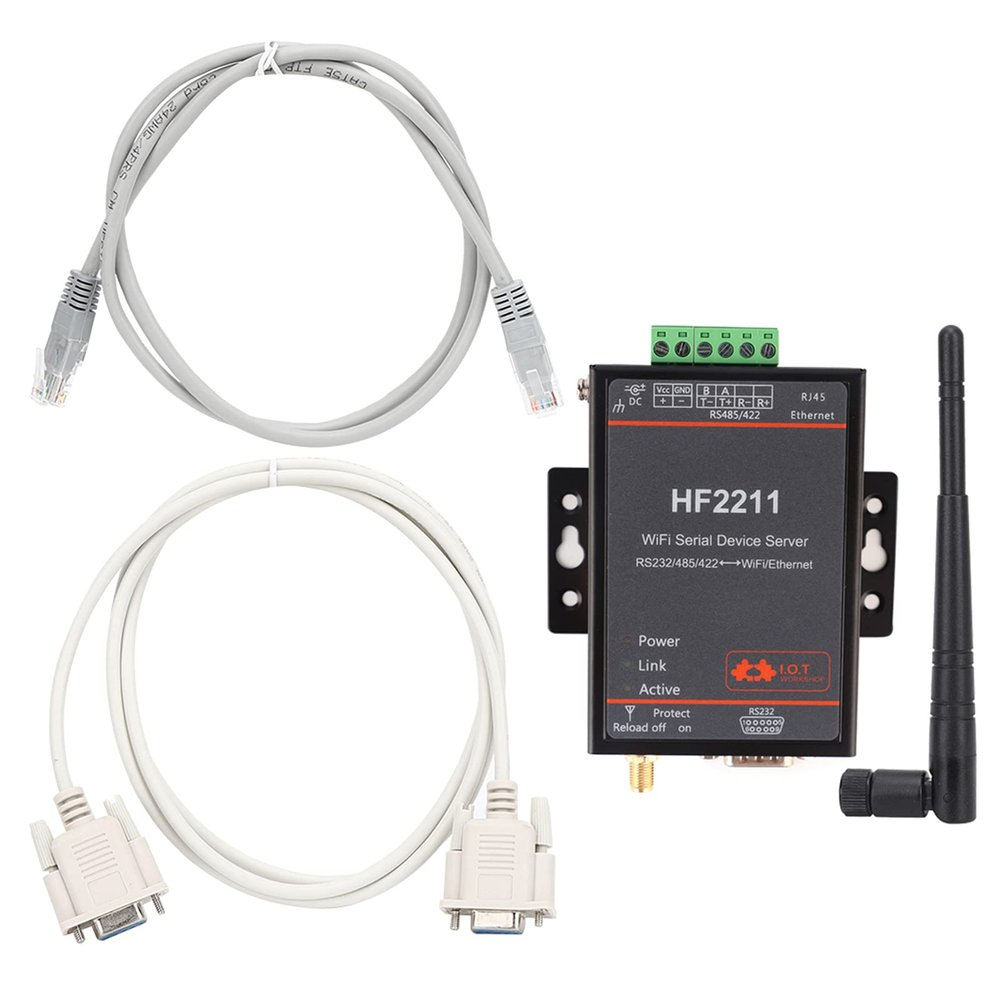

HF-2211 Serial to Ethernet Converter Device Server RS232 RS485 RS422 to WiFi Network Module with Wide 5-36VDC Input

Description

• Robust Protocol Support: This serial to ethernet converter supports essential protocols including IP Telnet and Modbus for seamless industrial integration.
• Versatile Connectivity: The device server facilitates RS232 RS485 and RS422 serial port communication converting data to both Ethernet and WiFi networks.
• Wide Voltage Operation: An input range of 5 to 36VDC allows this converter module to be powered from various sources in automotive and industrial settings.
• High Speed Data Transfer: A maximum serial port speed of 230400 bps ensures efficient and reliable data transmission for monitoring and control systems.
• Industrial Grade Reliability: Built on a stable eCos operating system this module is designed for continuous operation in demanding environments.

Specification:
Item Type: HF-2211 Serial Port Server
Input Voltage: Wide voltage 5 36VDC
Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85
Interface Form: 5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: <700mW
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port : Static: 8KV discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for
Serial Interface Parameters:
Number Of Serial Ports: 1 (RS232 / 485/422)
Interface Standard: RS232: DB9 pin type
RS485 / RS422: 5.08mm terminal block
Baud Rate: 600-230400bps
Data Bits: 8
Stop Bits: 1, 2
Wi-Fi Interface Parameters:
Standard: 802.11 b / g / n
Maximum Number Of Connections: Maximum 15 STA
Frequency Band: 2.412GHz-2.484GHz

Package List:
1 x Serial Network Server
1 x Serial Cable
1 x Network Cable
1 x Rubber Antenna

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
