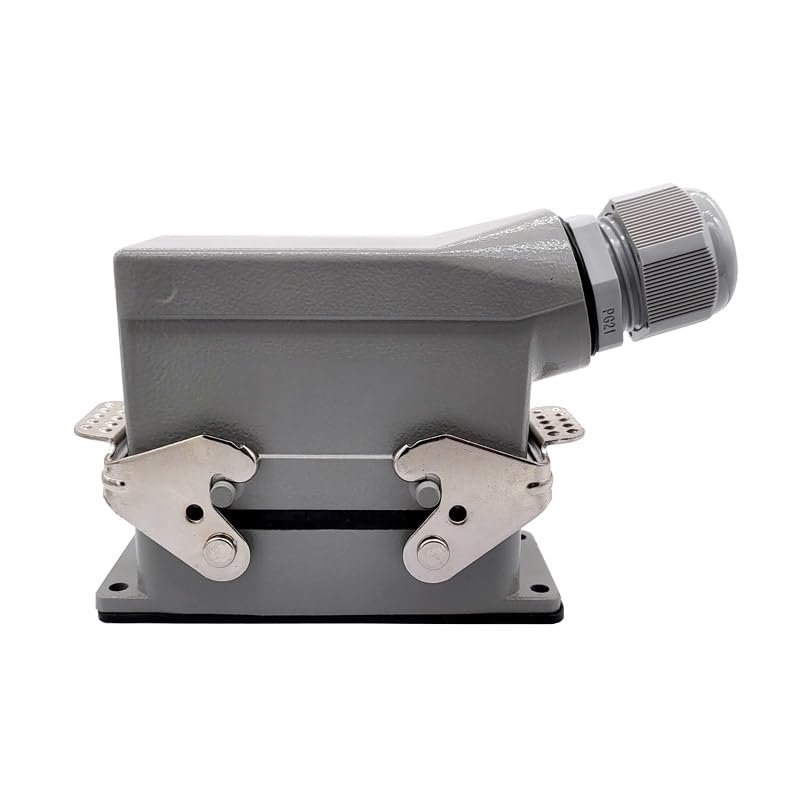

Heavy Duty Connectors HDC-HSB-006-1/2/3/4 F/M 6pin Screw Connection 35A Industrial Rectangular Aviation Connector Plug(HDC-HSB-006-3)

Description

• Material: Copper
• Surface treatment: silver plated
• <1m ohm
• Wiring form: screw connection
• Screw tightening torque/test torque: 0.25Nm+

Parameter
Plug body
Working current: 35A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: 10
Material: Polycarbonate
Operating temperature range: -40~+125
Flame retardant grade (according to UL94): V0
Conductor section: 0.5- 6mm
Installation method: hole installation
Connectors
Material: Copper
Surface treatment: silver plated
<;1m ohm
Wiring form: screw connection
Screw tightening torque/test torque: 0.25Nm+
Wiringforms:screwfixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40~+125
Protection class: IP65
