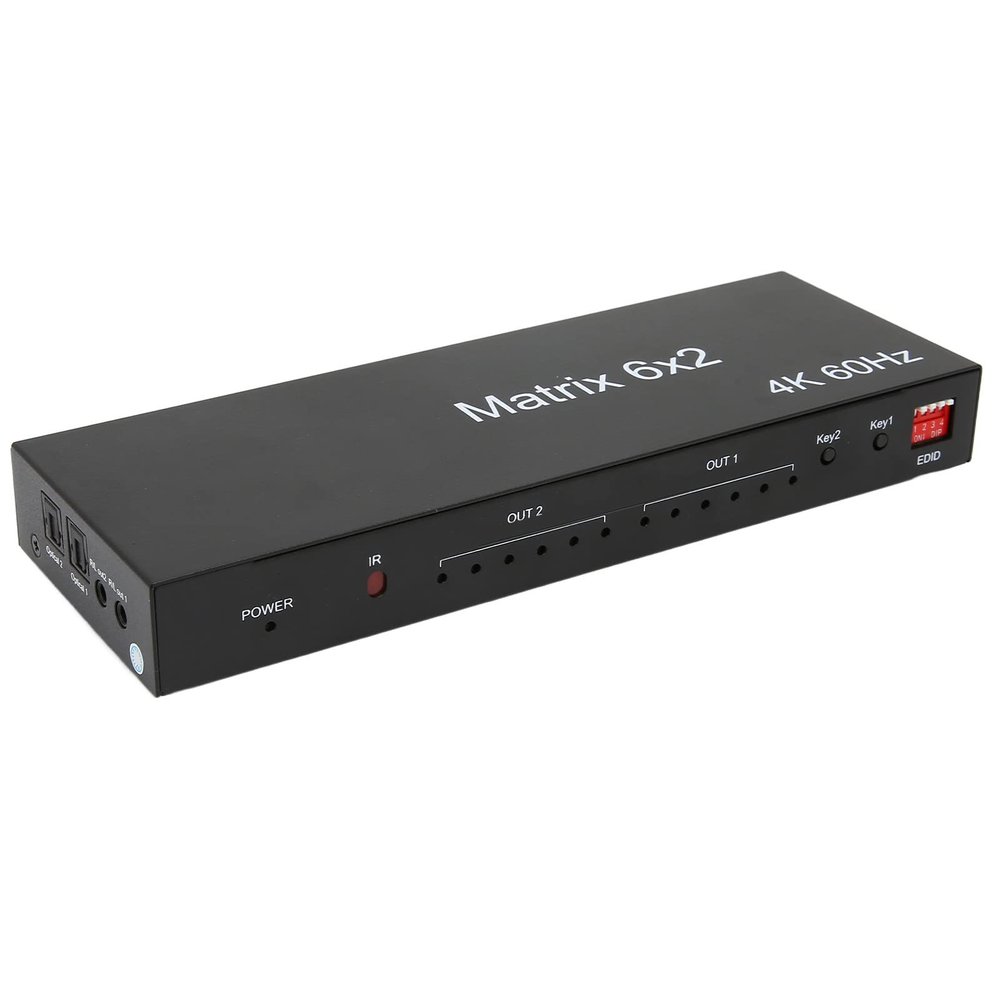

HDMI Switch, 6x2 HDMI Switcher 4K HDMI Splitter Selector with EDID Extractor 60Hz 3D HDCP 2.2 Optical and L R Audio Output with Remote Control (US Plug)

Description

• 6 IN 2 OUT: 6x2 HD Multimedia Interface Switcher can connect 6 HD display to 2 HD , and can support optical fiber and 3.5mm stereo output. Easily or distribute 6 HD on 2 monitors or projectors compatible with HD , and any output port can realize independent output through optical fiber or stereo headphones.
• HIGH PERFORMANCE: HD Multimedia Interface 2.0 splitter sends any of the 6 inputs to either output 1 or output 2. The output video can be different or the same. The highest video resolution supports 4K 60Hz (3840x2160 60Hz), EDID bypass, full 3D and HDCP2.2 standards. Supports 3x6Gbps (18Gbps) data rate and bandwidth up to 600MHz.
• INPUT AND OUTPUT PORT: Input Port: 6 HD Multimedia Interface (female); Output Port: 2 HD Multimedia Interface (female); Output: support 2 HD Multimedia Interface extraction, 2 3.5mm headphone plug output, 2 optical interface output. 3.5mm headphone plug and optical interface output at the same time. Support extraction.
• EDID RESOLUTION SCALING: Set EDID down scaling via DIP switch, each output port supports 4K resolution (input) to 2K resolution (output) (down scaling) independent scaling. Remote Control: You can select the HD Multimedia Interface source through the remote control, which is convenient to access and the input source more conveniently.
• WIDE USE: It reshapes and amplifies the input , and performs lossless through HD Multimedia Interface cable. This HD Multimedia Interface switcher provides solutions for digital HDTV programming in entertainment centers, retail and web site, HDTV, set top box, DVD, projector, data center control, information distribution, conference room, school, and corporate wall training environment.

Specification:
Item Type: 6x2 HD Multimedia Interface Switcher
Material: Aluminum Alloy
Size: Approx. 200x70x25mm / 7.9x2.8x1.0in
HD Multimedia Interface Version: HD Multimedia Interface 2.0
HD Multimedia Interface Resolution: Up to 3840x2160 60Hz
Supported Video Format: 8/10/12bit Deep Color
Supported Format: For LPCM, for DTS, for AC3
Maximum Bandwidth: 600MHz
Maximum Baud Rate: 3x6Gbps
Input Cable Distance: 4K/30Hz 15m / 49ft AWG26 HD Multimedia Interface standard cable, 4K/60Hz 5m / 16.4ft HD Multimedia Interface 2.0 standard cable
Output cable distance: 4K/30Hz 15M AWG26 HD Multimedia Interface standard cable, 4K/60Hz 5M HD Multimedia Interface 2.0 standard cable
HD Multimedia Interface Input Ports: 6
HD Multimedia Interface Output Ports: 2
Maximum Operating Current: 1A
Power Adapter Format: Input: AC (50Hz, 60Hz) 100V-240V
Operating Temperature Range: -15 to +45 / 5 to +113
Operating Humidity Range: 5% to 90% Relative Humidity (Non Condensing)
Remote Control Batteries: 2 x AAA (not included)

Package List:
1 x 6x2 HD Multimedia Interface Switcher1 x Remote Control (Battery Not Included)
1 x Power Adapter
1 x Manual

Note:
Please allow some errors due to manual measurement.
