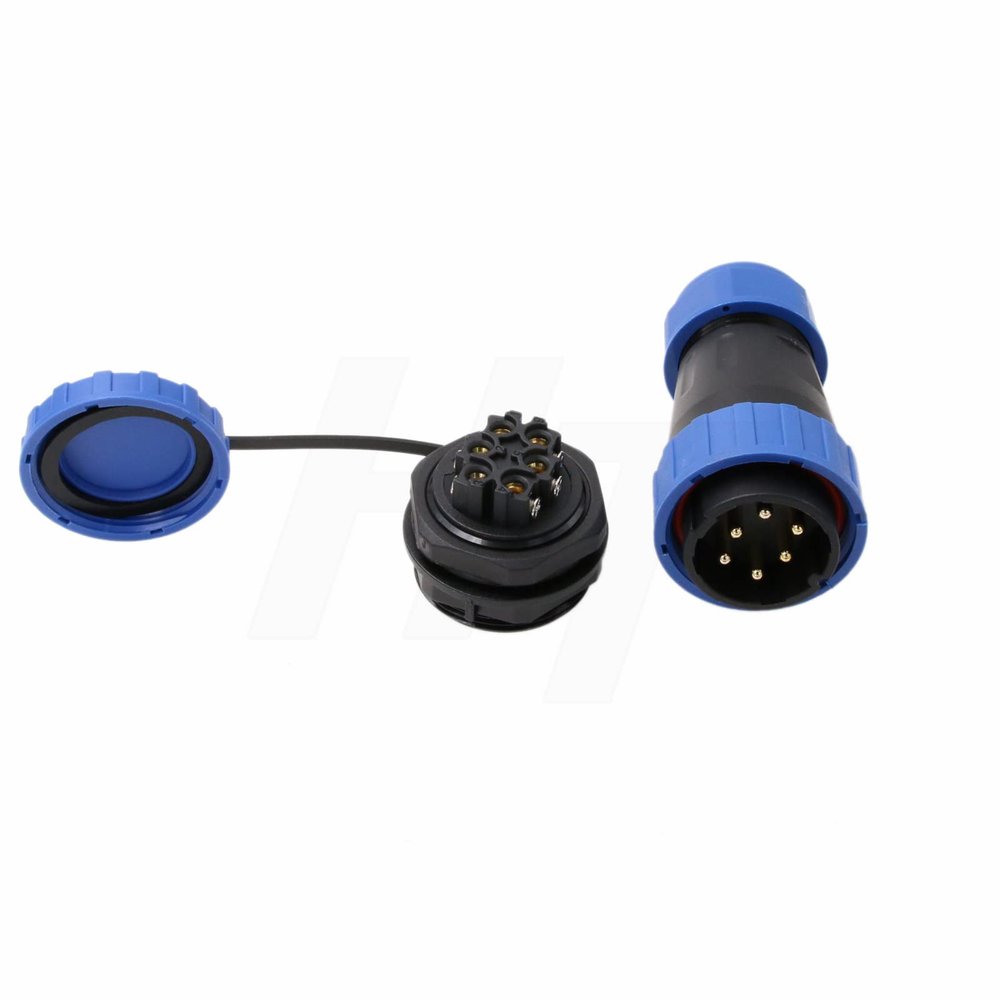

HangTon TY28 6 Pin 25A Aviation Waterproof Connector Male Female 12ga Wire Plug Socket Screw-Crimp Solder-Free Quick-Disconnect for Power Device Automotive

Description

• TY28 6-pin waterproof free-solder screw crimp bulkhead connector, easy for assembly cable
• Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
• Rear panel mount female socket and cable plug with watertight cap
• Rated Voltage/Current AC 380V / 25A, Contact resistance 1m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm or 12AWG, Contact Diameter 2.8mm
• Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment

Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box.

Specifications:
TY28:
Model: 2 3 4 5 6 7 9 Pin
IP Rating: IP68
Panel Cutout Diameter: 28.5mm
Cable Outer Diameter Range:10-15mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200
Contact Material: Pure copper plated gold
Wiring way: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85

Package Includes:
1 x Plug with male contact
1 x Socket with female contact
1 x Waterproof / Dustproof Cap
